996143 (440 R) - Gravely Treker Utility Vehicle, 4x4, Red (SN: 000101 - 019999) Brake Drum Rear Components Parts Diagram

Treker Utility Vehicle, 4x4, Red

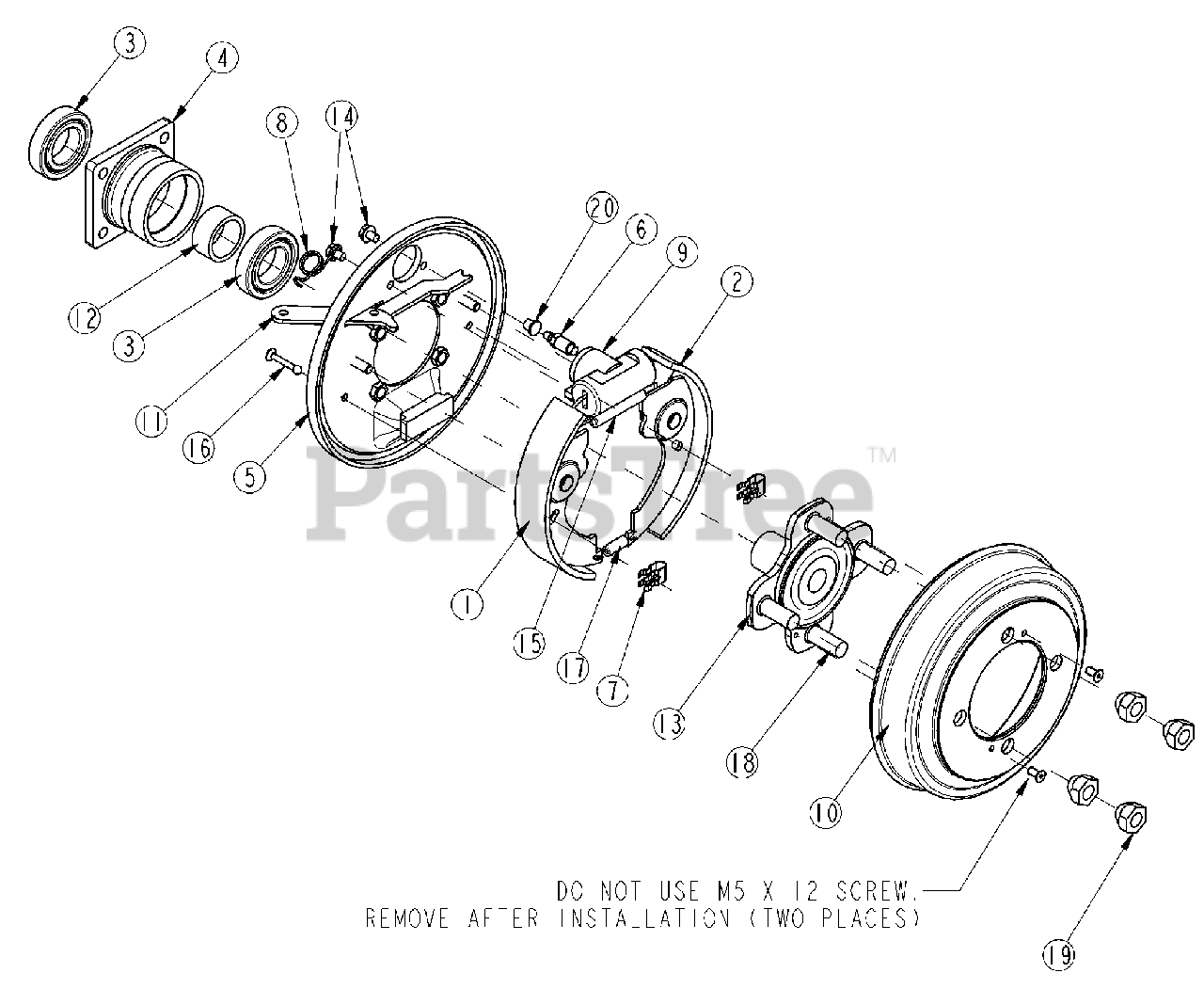

Brake Drum Rear Components Parts Diagram

  • Title

--

815-145C

RH DRUM ASM 180mm 4 ON 4" BC ITEM 19 NOT INCLUDED

$

$

Not available

--

815-146C

LH DRUM ASM 180mm 4 ON 4" BC ITEM 19 NOT INCLUDED

$

$

Not available

1

F136

LEFT SHOE

$

$

Not available

2

F137

RIGHT SHOE

$

$

Not available

3

F777

BALL BEARING

$

$

Not available

4

F855

BEARING HOLDER HUB

$

$

Not available

5

F179

BRAKE SHOE DISC RH

$

$

Not available

6

F178

BRAKE SHOE DISC LH

$

$

Not available

7

F827

BLEEDER SCREW

$

$

Not available

8

F622

SHOES LOCKING SPRING

$

$

Not available

9

F792

RIGHT SPRING/HAND BRAKE LEVER

$

$

Not available

10

F793

LEFT SPRING/HAND BRAKE LEVER

$

$

Not available

11

F261

HYDRAULIC CYLINDER

$

$

Not available

12

F908

DRUM

$

$

Not available

13

F176

RIGHT LEVERS SET

$

$

Not available

14

F177

LEFT LEVERS SET

$

$

Not available

15

F852

CMX SPACER

$

$

Not available

16

Gravely F175

BRAKE FLANGE HUB W/STUDS

$175.99

$

Usually ships in 4-12 days

0

17

F258

SCREW M6 x 40

$

$

Not available

18

F610

UPPER RETURN SPRING

$

$

Not available

19

F621

SPRING PIN

$

$

Not available

20

F609

LOWER RETURN SPRING

$

$

Not available
