996146 (440 RT) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 020000 & Above) Transfer Case and Rear Driveshaft Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

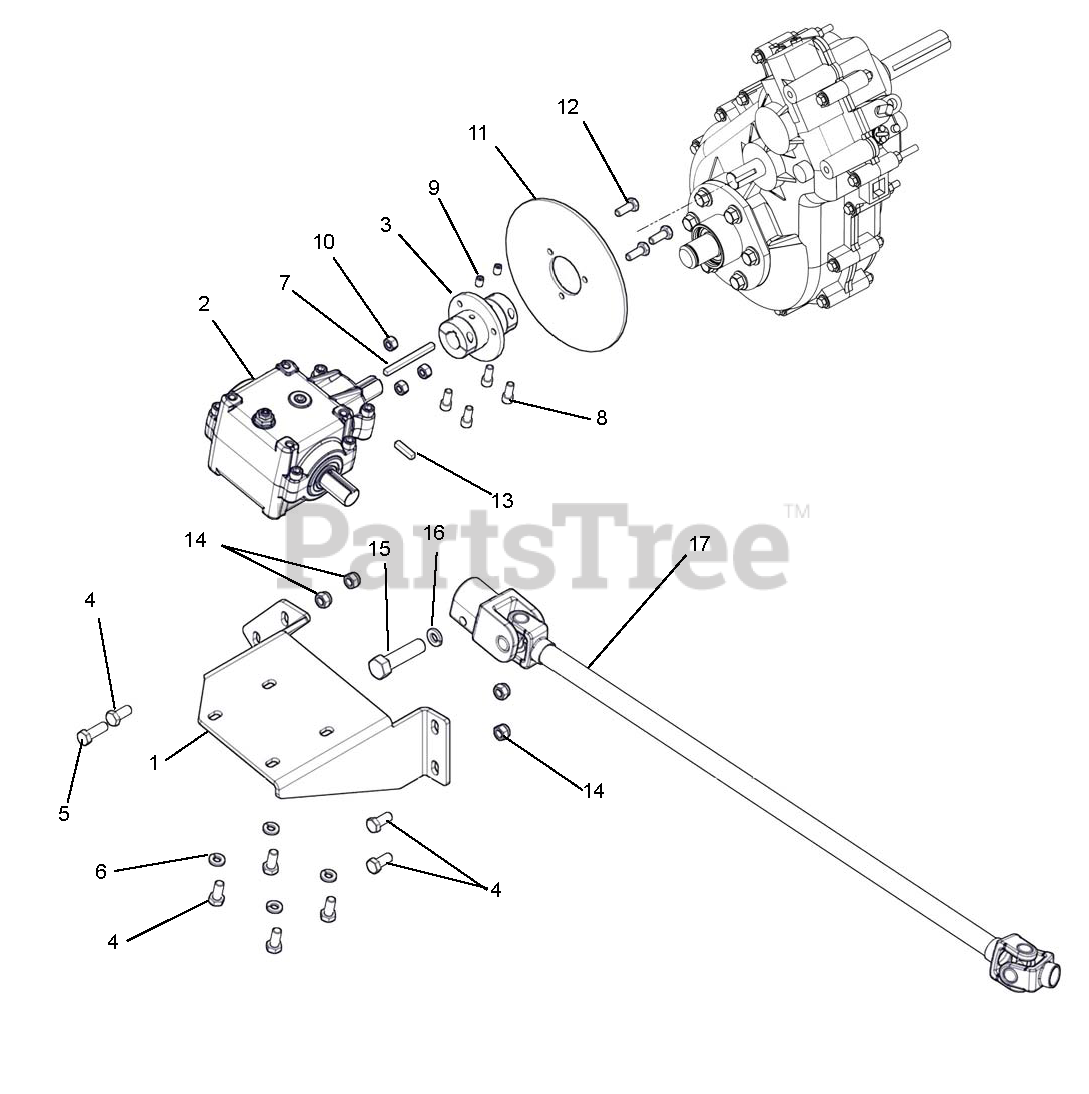

Transfer Case and Rear Driveshaft Parts Diagram

  • Title

1

Gravely 04228651

4X4 MOUNT PLATE

$

$

Not available

2

Gravely T826-417C

GBOX MODEL R100 1.5TO1 RATIO

$

$

Not available

3

Gravely 04054400

COUPLER, SHORT

$

$

Not available

4

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00130969

KEY, .188 X .188 X 2.50 SQ

$3.99

$

Usually ships in 4-12 days

0

8

Gravely T802-774C

HSHCS 1/4-28X5/8

$

$

Not available

9

Gravely 06006000

SCR-SET .25-28X.375 SK CUP

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04228200

DISK, PARK BRAKE

$

$

Not available

12

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 2 left!

0

13

Gravely T800-296C

KEY 3/16 X 7/8

$

$

Not available

14

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

15

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

17

Gravely T826-419C

REAR HALF DRIVELINE 4X4 ST

$

$

Not available
