996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Bench Seat Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

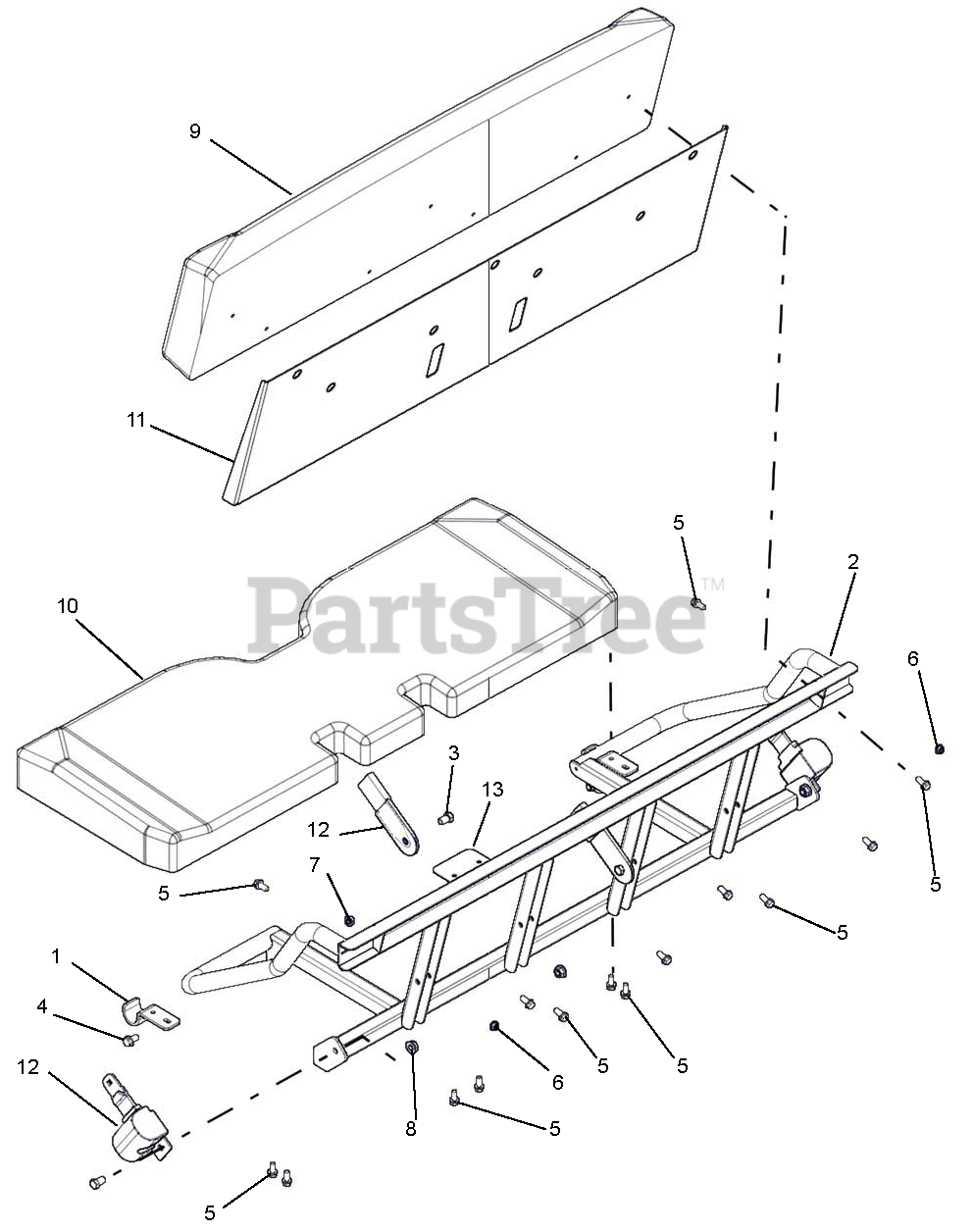

Bench Seat Parts Diagram

  • Title

1

Gravely T700-389D

SEAT PIVOT PLATE

$

$

Not available

2

Gravely 04054351

SEAT FRAME, TREKER

$

$

Not available

3

Gravely 05958700

BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

4

Gravely T802-185C

HFSS 3/8-16X3/4 LG

$

$

Not available

5

Gravely 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$3.49

$

In Stock, only 4 left!

0

9

Gravely 04313400

SEAT BACK, BENCH

$

$

Not available

10

Gravely 04265200

SEAT BOTTOM

$

$

Not available

11

Gravely 04214851

SEAT BACK PANEL, BLACK

$

$

Not available

12

Gravely 00181572

ASSY, SEAT BELT

$

$

Not available

13

Gravely 04247151

SEAT BOTTOM PLATE

$

$

Not available
