996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Electrical Wiring Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

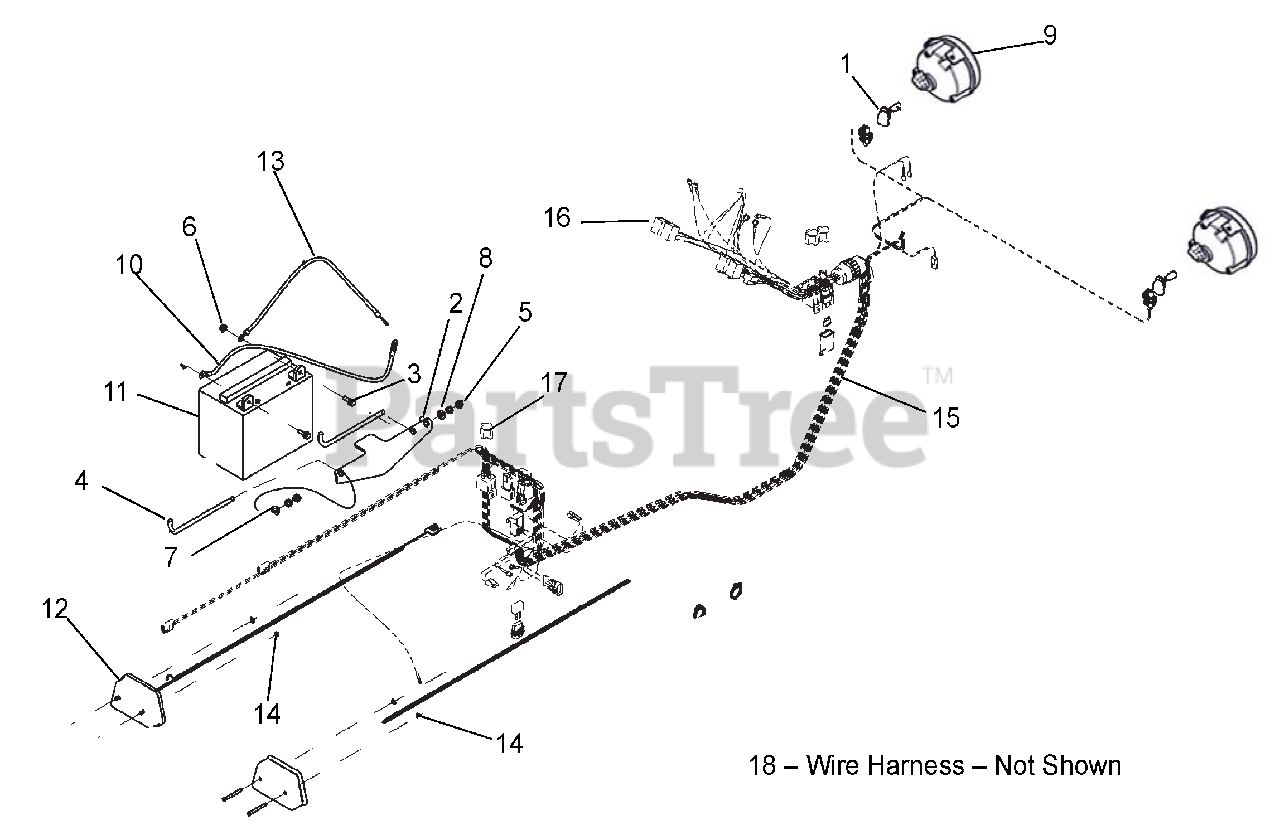

Electrical Wiring Parts Diagram

  • Title

1

HEADLIGHT BULB 37.5 WATT 894

$

$

Not available

2

Gravely T700-456D

HOLDOWN, BATTERY ST

$

$

Not available

3

Gravely 06006127

SCR-HEX-FLNG .25-20 X .625 G2

$

$

Not available

4

Gravely T802-793C

SP HOOK 5/16-18X9X3 THREAD

$

$

Not available

5

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

6

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 04090600

HEADLIGHT, ROUND

$

$

Not available

10

Gravely T833-256C

BATTERY CABLE POSITIVE 15 INCH

$

$

Not available

11

BATTERY (BUY LOCALLY BCI Group U1/U1R, Min. 300CA)

Note: (BUY LOCALLY BCI Group U1/U1R, Min. 300CA)

$

$

Not available

12

Gravely 04237900

TAIL LIGHT, LED

$

$

Not available

13

Gravely T833-303C

20" 6GA NEGATIVE BLACK CABLE

$

$

Not available

14

Gravely T840-105C

PUSH RETAINERS 4 NON-THRD SHFT

$

$

Not available

15

Gravely 04237600

HARNESS, MAIN

$

$

Not available

16

Gravely 04237701

HARNESS, SUB DASH

$

$

Not available

17

Gravely 00102770

RELAY, ISO MINI ELEC.

$29.99

$

Usually ships in 4-12 days

0

18

Gravely 04320101

HARNESS,SUB ENGINE KILL

Note: (Not Shown)

$

$

Not available

19

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: (600/601 Series) (Not Shown)

$5.99

$

In Stock, Qty 6

0

20

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: (600/601 Series) (Not Shown)

$5.99

$

In Stock, only 2 left!

0

21

Gravely 04504100

FUSE,30 AMP MINI-ATC

Note: (600/601 Series) (Not Shown)

$7.49

$

In Stock, only 2 left!

0

22

Gravely 04438400

RELAY,MICRO5 TERMINAL W/DIODES

Note: (600/601 Series) (Not Shown)

$22.99

$

In Stock, Qty 9

0

23

Gravely 04504200

COVER, HARNESS FUSE/RELAY MOD

Note: (601 Series) (Not Shown)

$30.99

$

Usually ships in 4-12 days

0

24

Gravely 03653300

MODULE - VOLTAGE SENSOR

Note: (700/701 Series) (Not Shown)

$66.99

$

Usually ships in 4-12 days

0

25

Gravely 00102770

RELAY, ISO MINI ELEC.

Note: (100/100 Series) (Not Shown)

$29.99

$

Usually ships in 4-12 days

0
