996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Floor Panel And Shields Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

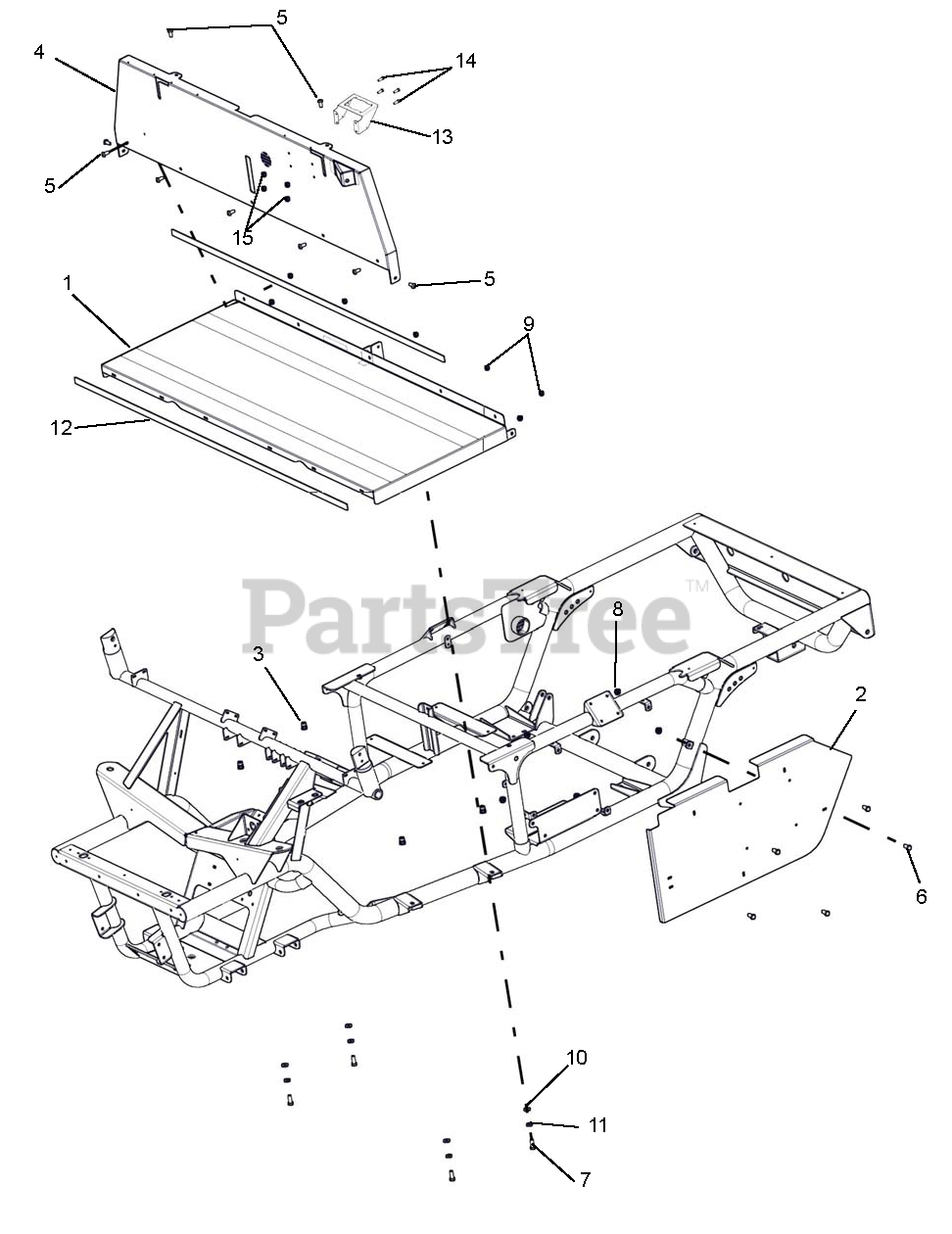

Floor Panel And Shields Parts Diagram

  • Title

1

Gravely 04259651

WLDT-FLOOR

$

$

Not available

2

Gravely T700-145D

SIDE PANEL, WIDE

$

$

Not available

3

Gravely 06500638

NUTZERT, 5/16-18 X .667 HEX Y

$

$

Not available

4

Gravely 04268351

WLDT, KICK PANEL

$

$

Not available

5

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

6

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

10

Gravely T804-084C

WASHER FLAT 5/16 HARD ASTMF436

$

$

Not available

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely T990-227R

FOAM RUBBER 3/16X3/4 THK W/PSA

$

$

Not available

13

Gravely 04451051

BRKT, MODULE EPA FUSE/RELAY

$

$

Not available

14

Gravely T801-180C

TTHMS 1/4-20X3/4 ZNYCR

$

$

Not available

15

Gravely T803-293C

NUT HEX FLG TL 1/4-20 ZNYCR

$

$

Not available

16

Gravely 00181143

CABLE, CHOKE 84.0"

Note: (Not Shown)

$

$

Not available
