996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Front Brake System Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

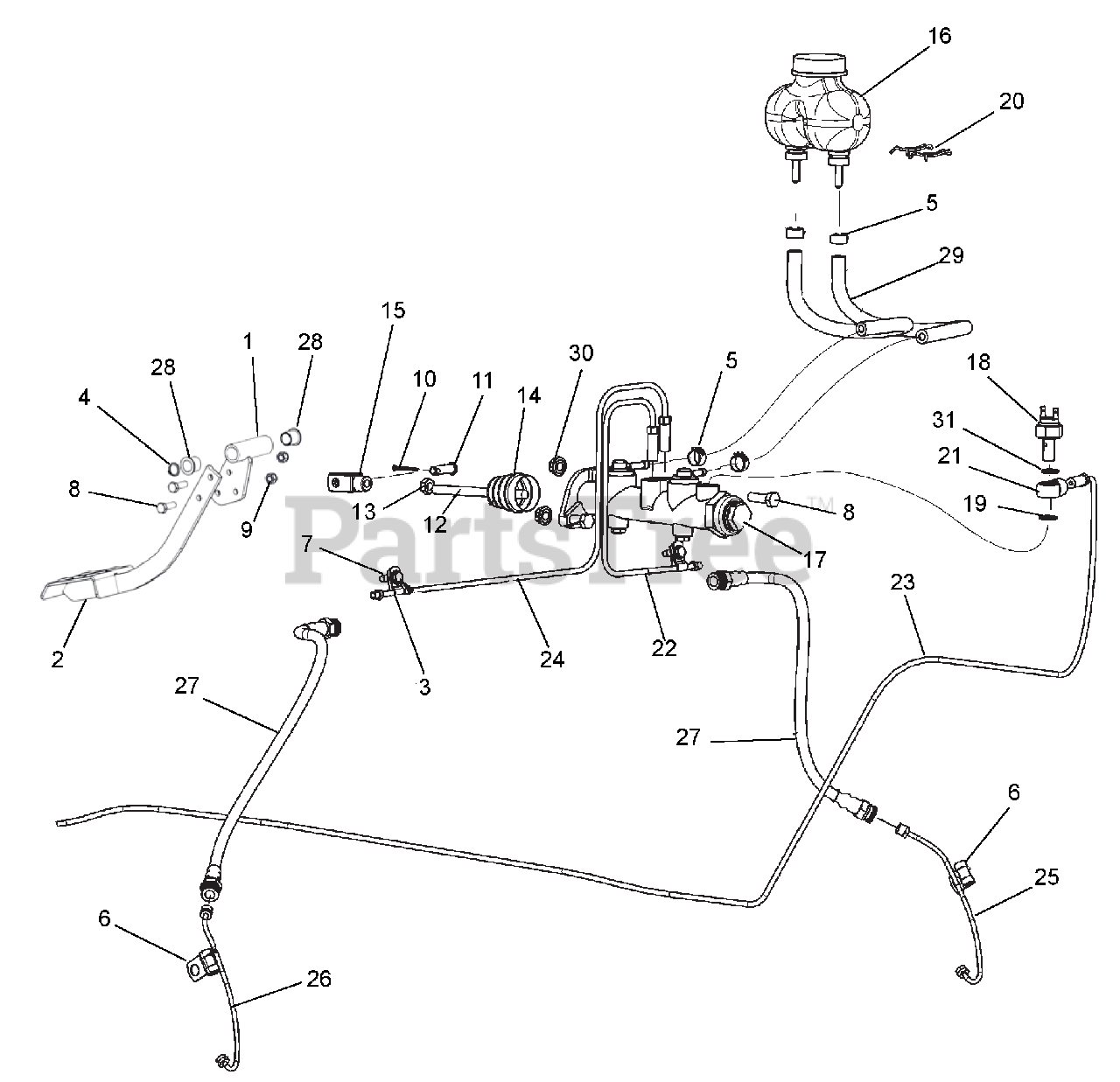

Front Brake System Parts Diagram

  • Title

1

Gravely T700-056H

BRAKE PEDAL PIVOT WELDMENT

$

$

Not available

2

Gravely 04183751

BRAKE PEDAL ASM

$

$

Not available

3

Gravely T800-347C

WIRING/TUBE CLIP FOR 1/4 OD

$

$

Not available

4

Gravely 05700140

SNAP RING, .625 X .035 EXT
(Superseded to 05711900)

$1.49

$

In Stock, Qty 15

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely T800-360C

HOSE CLAMP 1/4 ID

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06120224

HH DRILL SCREW 1/4 X 3/4LG

$

$

Not available

8

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

10

Gravely 06707000

PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

In Stock, Qty 11

0

11

Gravely 06819500

PIN-CLEV .313X1.00X.81 U

$

$

Not available

12

Gravely T815-150C

MASTER CYLINDER PUSH ROD

$

$

Not available

13

Gravely 06542700

NUT, JAM M8-1.25 YWZC

$

$

Not available

14

Gravely T815-152C

MASTER CYLINDER BOOT

$

$

Not available

15

Gravely T815-154C

MASTER CYLINDER CLEVIS

$

$

Not available

16

Gravely T815-155C

DUAL RESERVOIR BRK FLUID W/CAP

$

$

Not available

17

Gravely 04096300

DUAL MASTER CYLINDER

$

$

Not available

18

Gravely 04104600

BRAKE SWITCH, HIGH PRESSURE

$

$

Not available

19

Gravely 04096302

WASHER, COPPER, 3.5 MM

$

$

Not available

20

Gravely T815-163C

CLIP MASTER CYLINDER

$

$

Not available

21

Gravely T815-167C

BULK HEAD FLOW THROUGH

$

$

Not available

22

Gravely T815-173C

FRONT, BRAKE LINE LH

$

$

Not available

23

Gravely T815-175C

BRAKE, LINE MAIN

$

$

Not available

24

Gravely T815-174C

FRONT, BRAKE LINE RH

$

$

Not available

25

Gravely T815-190C

FRONT, BRAKE LINE END LH

$

$

Not available

26

Gravely T815-196C

FRONT, BRAKE LINE END RH

$

$

Not available

27

Gravely T815-210C

BRAKE LINE RBR 17" M10X1FEMALE

$

$

Not available

28

Gravely T817-526C

BUSHING 3/4ODX5/8IDX3/4 FLG HD

$

$

Not available

29

Gravely T840-104C

12.5" FUEL LINE/HYD FLUID RES.

$

$

Not available

30

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Gravely T815-158C

MSTR CYL CPPR WSHR 16X10X1.5MM

$

$

Not available
