996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Front Differential And Driveshaft Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

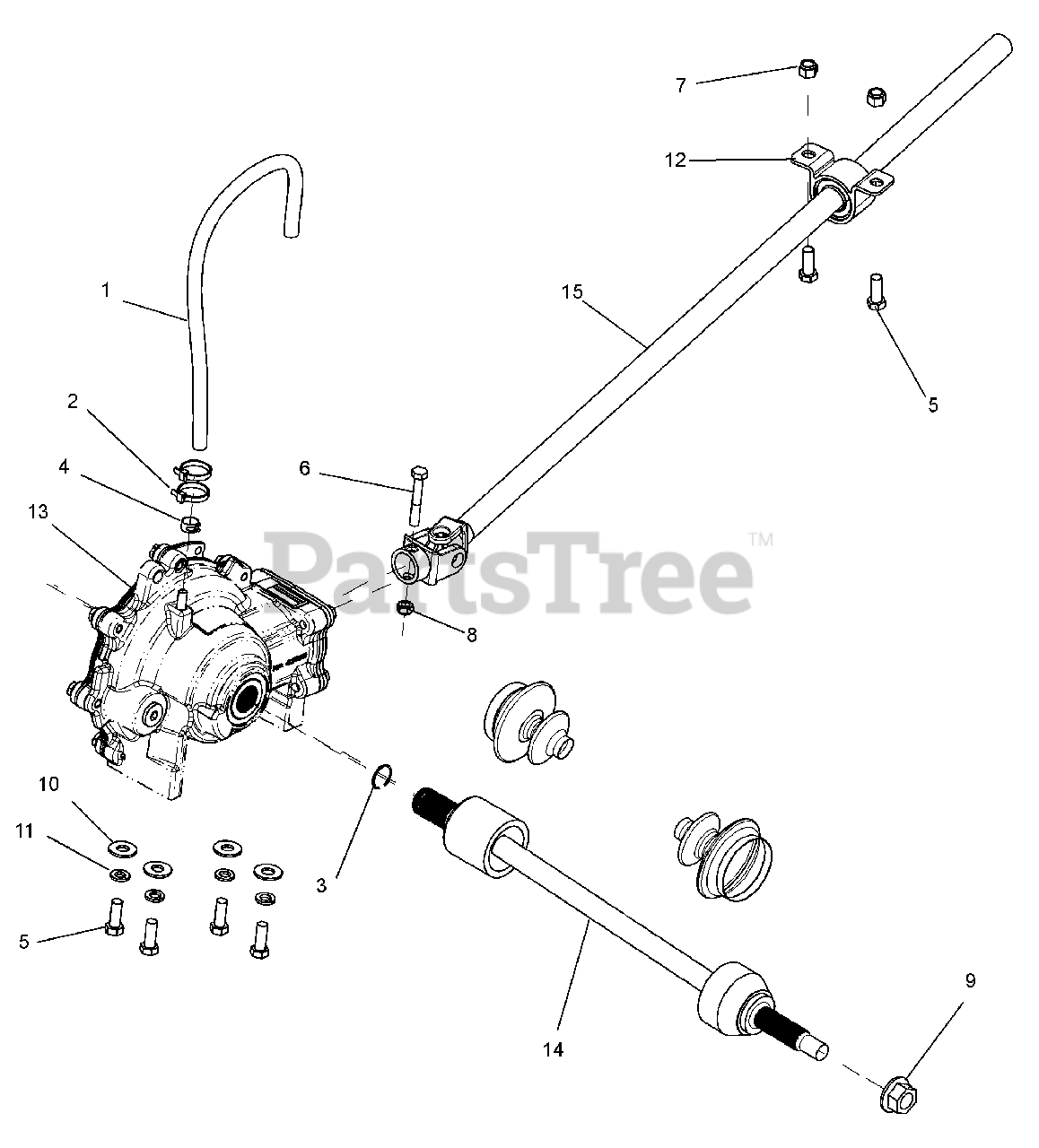

Front Differential And Driveshaft Parts Diagram

  • Title

1

Gravely T700-466D

VENT HOSE 17.5LG 4 X 4 GBOX

$

$

Not available

2

Gravely T800-303C

CABLE TIE 2 DIA MIN Ð BLK

$

$

Not available

3

Gravely T800-353C

SPRING CIR CLIP .95OD X .063 WIRE

$

$

Not available

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

5

Gravely 05948700

HHCS .38-16 X 1 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05957200

BOLT, HEX .31-18 X 2 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

7

Gravely 06535800

NUT, NYLOCK .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 06530200

NUT, NYLOCK .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely T803-332C

NUT, HEX M16 X 1.5 TOP LOCK PLT

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06435900

WASHER FLAT .438 X 1.00 X .083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

11

Gravely 06308800

WASHER LOCK .38 X .094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

12

Gravely T822-203C

PILLOW BLOCK BEARING TRUCK

$

$

Not available

13

Gravely T826-398C

FRONT DIFFERENTIAL WITH ELECTRIC CLUTCH

$950.99

$

Usually ships in 4-12 days

0

14

Gravely T826-405C

FRONT AXLE SHAFT STANDARD

$452.99

$

Usually ships in 4-12 days

0

15

Gravely T826-438C

DRIVELINE 4 X 4 NT/ST

$342.99

$

Usually ships in 4-12 days

0
