996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Front Differential And Driveshaft Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

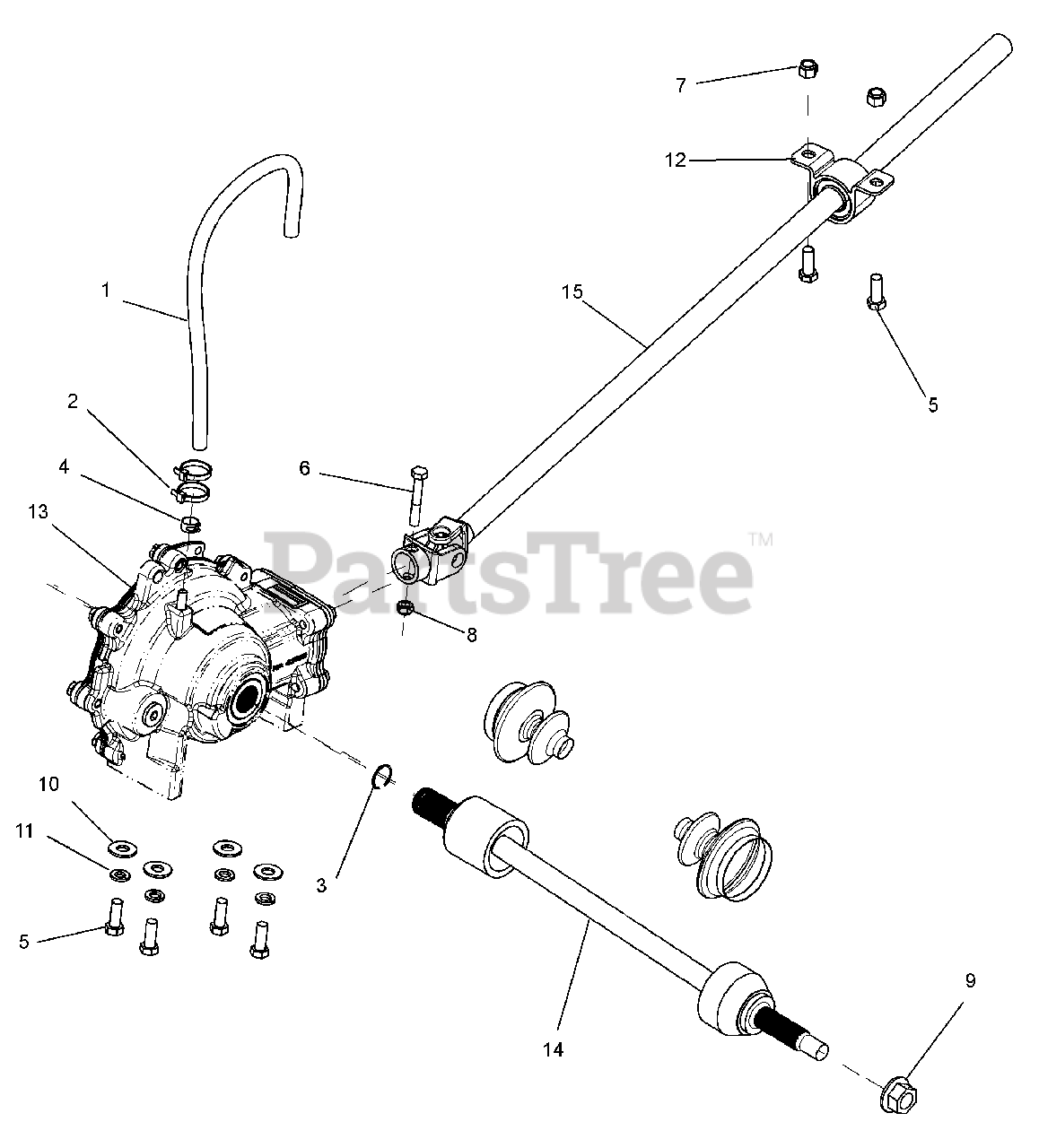

Front Differential And Driveshaft Parts Diagram

  • Title

1

Gravely T700-466D

VENT HOSE 17.5LG 4X4 GBOX

$

$

Not available

2

Gravely T800-303C

CABLE TIE 2 DIA MIN - BLK

$

$

Not available

3

Gravely T800-353C

SPRING CIR CLIP .95ODX.063WIRE

$

$

Not available

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 18

0

7

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

9

Gravely T803-332C

NUT HEX FLG T LCK M16X1.5 PLT

$

$

Not available

10

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

12

Gravely T822-203C

BRG PB .75ID

$

$

Not available

13

Gravely T826-398C

FRONT DIFFERENTIAL W/ELE CLTCH

$

$

Not available

14

Gravely T826-405C

FRONT AXLE SHAFT STANDARD

$470.99

$

Usually ships in 4-12 days

0

15

Gravely T826-438C

FRONT HALF DRIVELINE 4X4 NT/ST

$

$

Not available
