996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Main Frame And Bumper Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

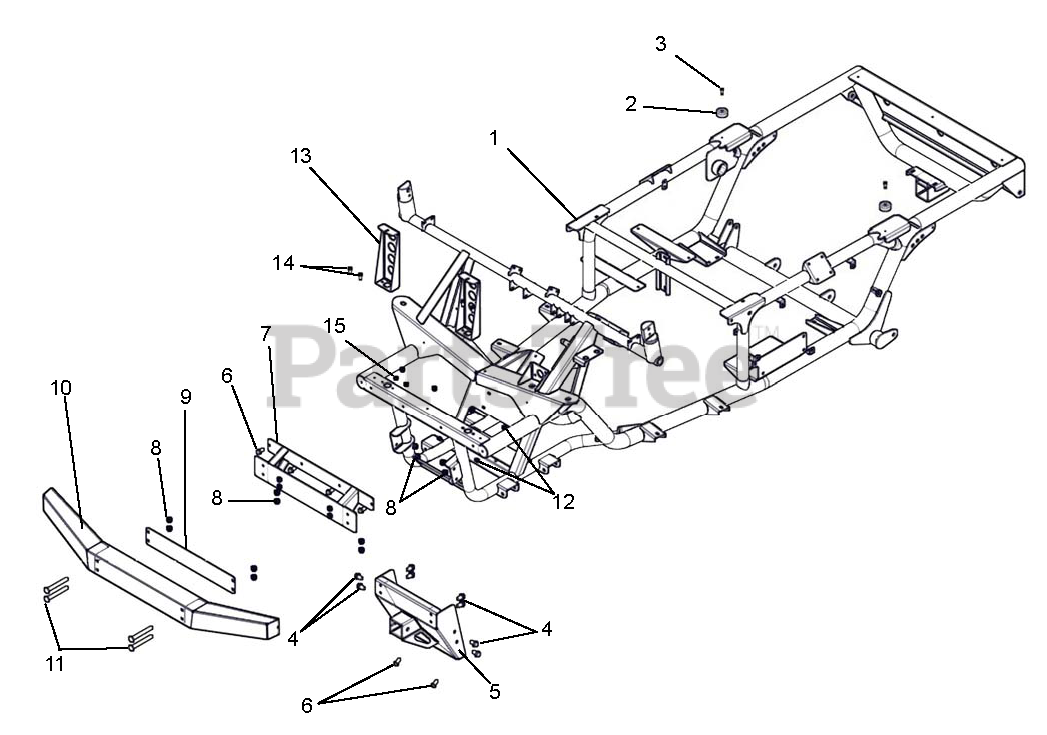

Main Frame And Bumper Parts Diagram

  • Title

1

Gravely 04232351

WLDT-MAINFRAME

$

$

Not available

2

Gravely 00180390

BUMPER, RUBBER .625 X 1.50 DIA

$

$

Not available

3

Gravely AA968100

RIVET, 3/16 X .500 POP ST

$

$

Not available

4

Gravely T802-185C

HFSS 3/8-16X3/4 LG

$

$

Not available

5

Gravely 04095951

WLDT, RECEIVER, FRONT

$

$

Not available

6

Gravely 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

7

Gravely 04085551

WLDT, MNT,BUMPER

$

$

Not available

8

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 04085453

PLATE,BACK,BUMPER

Note: (996123, 125, 146)

$

$

Not available

Gravely 04085468

PLATE,BACK,BUMPER,GRAY

Note: (996147)

$

$

Not available

10

Gravely 04085351

WLDT, BUMPER

$

$

Not available

11

Gravely 06200129

BLT-RDHDSQNK .38-16X4.00 G5 Y

$

$

Not available

12

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 04258551

HOOD MOUNT BRACKET

$

$

Not available

14

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

15

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0
