996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Rear Transaxle And Axle Shafts Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

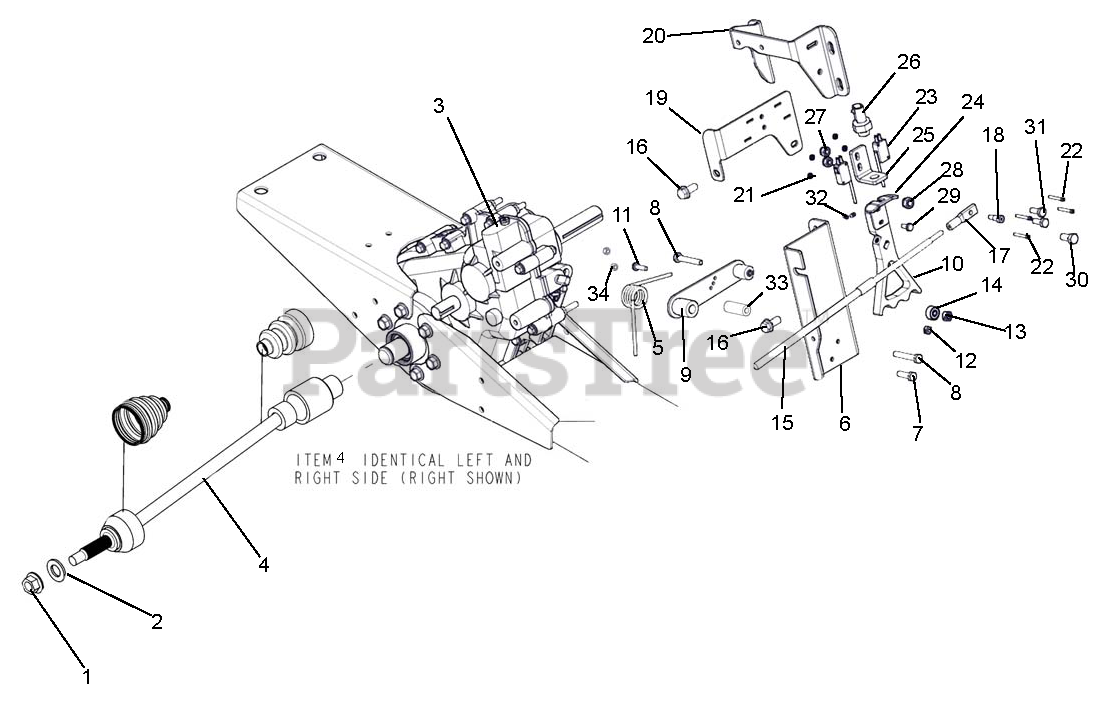

Rear Transaxle And Axle Shafts Parts Diagram

  • Title

1

Gravely T803-332C

NUT HEX FLG T LCK M16X1.5 PLT

$

$

Not available

2

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

3

Gravely T826-454C

TRANSAXLE, DANA

$

$

Not available

4

Gravely T826-456C

REAR AXLE SHFT ST, 24T INT.SPL

$

$

Not available

5

Gravely 04261900

SPRING, TORSION, 1.058 X .777

$

$

Not available

6

Gravely 04264151

BRACKET, SHIFT

$

$

Not available

7

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

8

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

9

Gravely 04264651

FOLLOWER WLDT

$

$

Not available

10

Gravely 04263900

SHIFT CAM, TRANS SIDE

$

$

Not available

11

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

12

Gravely 00964028

LOCKNUT, 10-24 CENTER Y
(Superseded to 06540500)

$

$

Not available

13

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00191185

BRG, BAL .250X.688X.313

$10.99

$

Usually ships in 4-12 days

0

15

Gravely T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$

$

Not available

16

Gravely T802-387C

HFS 5/16-18X3/4 GR5

$

$

Not available

17

Gravely 04187200

CABLE END

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 07070101

BLT-SHLDR .25X.375

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 04226851

BRACKET,MNT,SWITCH

$

$

Not available

20

Gravely T700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

21

Gravely 06545700

NUT-HEX 4-40 YWZC GR5

$

$

Not available

22

Gravely T802-788C

HSHCS #4-40X1

$

$

Not available

23

Gravely T833-330C

PARK BRAKE MICRO-SWITCH

$

$

Not available

24

Gravely 04314151

BRACKET, SWITCH ACTIVATING

$

$

Not available

25

Gravely 04314251

MOUNT, PLUNGER SWITCH

$

$

Not available

26

Gravely 00200412

SWITCH, NEUTRAL

$

$

Not available

27

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

28

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

29

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

32

Gravely 06006000

SCR-SET .25-28X.375 SK CUP

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 04264300

BUSHING, 0253 X .495 X 1.0625

$

$

Not available

34

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
