996146 (440 RX) - Gravely Treker Utility Vehicle, 4x4, Red, Subaru (SN: 000101 - 019999) Steering Parts Diagram

Treker Utility Vehicle, 4x4, Red, Subaru

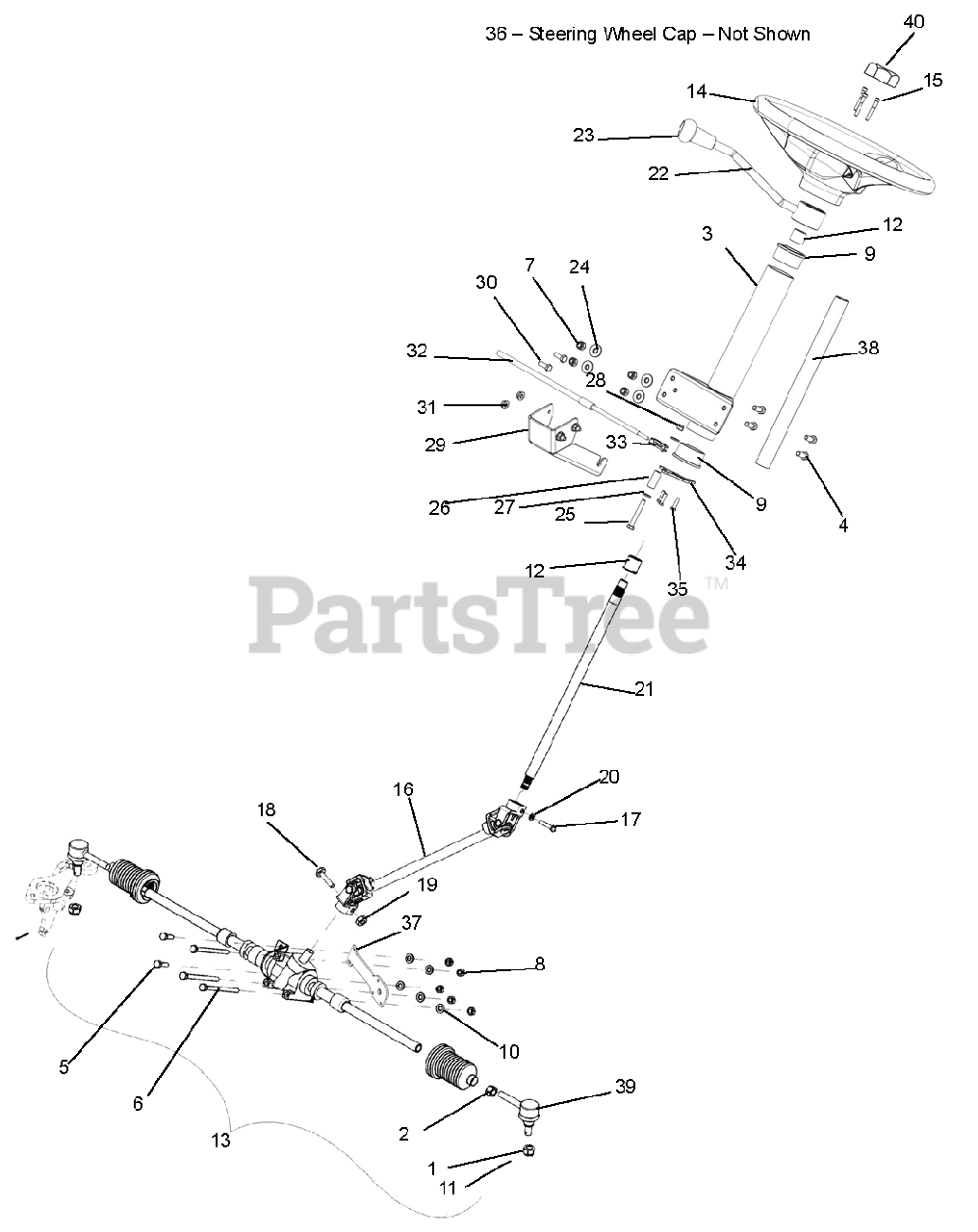

Steering Parts Diagram

  • Title

1

Gravely 06520002

NUT-HEX-SLOTTED M12X1.25 YWZC

$

$

Not available

2

Gravely 06548100

NUT-HEX M14-1.50 GR8.8 YWZC

$

$

Not available

3

Gravely 04157951

WLDT,STEERING COLUMN,BLK

$

$

Not available

4

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

6

Gravely 05973900

BLT-HEX .31-18X4.50 GR5 YWZC

$

$

Not available

7

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04157300

BUSHING, NYLON

$

$

Not available

10

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06707000

PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

In Stock, Qty 11

0

12

Gravely 04157200

BUSHING, NYLON

$

$

Not available

13

Gravely T826-400C

RACK & PINION ST

$

$

Not available

14

Gravely 03964990

STEERING WHEEL, 3 SPK CONTOUR

$

$

Not available

15

Gravely 00967418

BOLT, 10-24X1.25 SOC GR5 Y

$3.99

$

Usually ships in 4-12 days

0

16

Gravely T840-093C

STEERING SHAFT TRUCK

$

$

Not available

17

Gravely T23035

MVL BOLT FOR 840-093C

$

$

Not available

18

Gravely T802-628C

HHCS M10X1.5X35 PLT

$

$

Not available

19

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$1.99

$

Usually ships in 4-12 days

0

20

Gravely T20061

MVL SPRING WASHER FOR 840-093C

$

$

Not available

21

Gravely T840-130C

UPPER STEERING SHAFT TRUCK ASM

$

$

Not available

22

Gravely 04160551

WLDT,COLUMN SHIFT LEVER

$

$

Not available

23

Gravely T840-288C

DASH SHIFTER KNOB

$

$

Not available

24

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

26

Gravely 04300451

SHIFT STOP

$

$

Not available

27

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

29

Gravely 04237251

CABLE BRKT,SHIFTER,BLK

$

$

Not available

30

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

31

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

32

Gravely T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$

$

Not available

33

Gravely T890-884C

YOKE 10-32 W/ LOCK

$

$

Not available

34

Gravely 04157400

CAM, COLUMN SHIFTER

$

$

Not available

35

Gravely 05901511

SHCS #10-24 X .750

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 04062500

CAP, STEERING WHEEL

Note: (Not Shown)

$

$

Not available

37

Gravely 04338851

SPACER,STEERING

$

$

Not available

38

Gravely 04157100

WLDT, COLUMN SHIFTER

$140.99

$

Usually ships in 4-12 days

0

39

Gravely T0180006

TIE ROD END 826-399C

$

$

Not available

40

Gravely T803-283C

NUT HEX M16X2.00X8MM THK PLT

$

$

Not available
