996147 (440 CX) - Gravely Treker Utility Vehicle, 4x4, Camo, Subaru (SN: 020000 & Above) Fuel Tank Parts Diagram

Treker Utility Vehicle, 4x4, Camo, Subaru

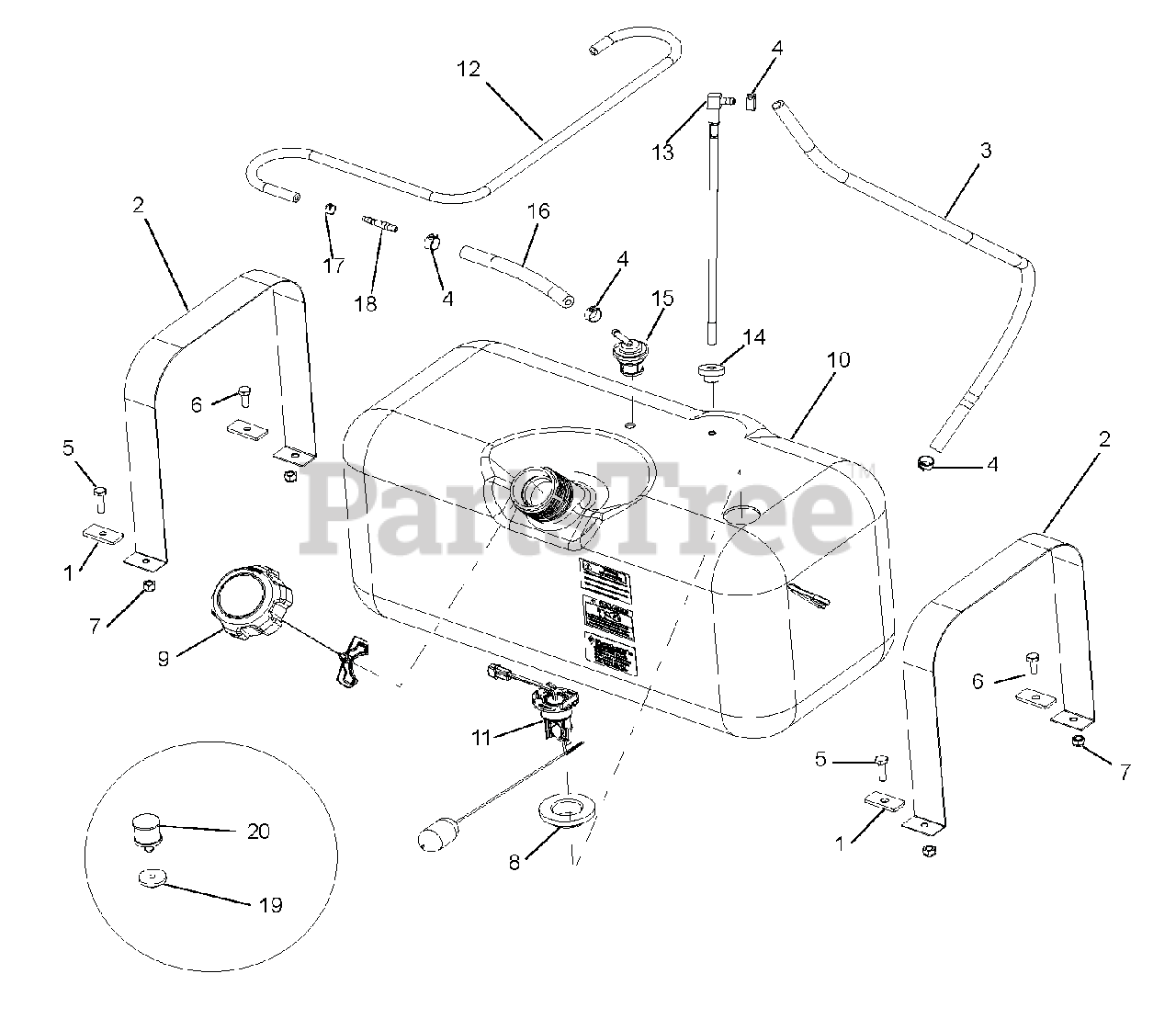

Fuel Tank Parts Diagram

  • Title

1

Gravely T700-017D

GAS TANK MOUNT SPACER

$

$

Not available

2

Gravely T700-175D

GAS TANK STRAP, WIDE

$

$

Not available

3

Gravely T700-213D

FUEL LINE 10" ST MODEL

$

$

Not available

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

7

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

8

Gravely 04240300

GROMMET, FUEL SENDER

$

$

Not available

9

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$21.99

$

In Stock, Qty 12

0

10

Gravely 04434100

TANK, FUEL 2012 EPA

$

$

Not available

11

Gravely 04053801

SENDER, FUEL LEVEL

$

$

Not available

12

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 21551100

FUEL, TANK PICK-UP LINE

$54.99

$

Usually ships in 4-12 days

0

14

Gravely 00387300

GROMMET, DAPCO VITON #12240

$9.99

$

In Stock, Qty 20+

0

15

Gravely 21552800

VALVE, GROMMET FUEL TANK VENT

Note: (SN 20,000 +)

$64.99

$

Usually ships in 4-12 days

0

16

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (SN 20,000 +)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

18

Gravely 04580000

ADAPTOR, HOSE 3/16 TO 1/4

Note: (SN 20,000 +)

$

$

Not available

19

Gravely 21551000

GROMMET, FUEL TANK

Note: (SN 10,000 - 19,999)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 21550900

SLOSH VALVE, FLAMBEAU 468885A

Note: (SN 10,000 - 19,999)

$

$

Not available
