996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Drive Belt - Driven Pulley Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

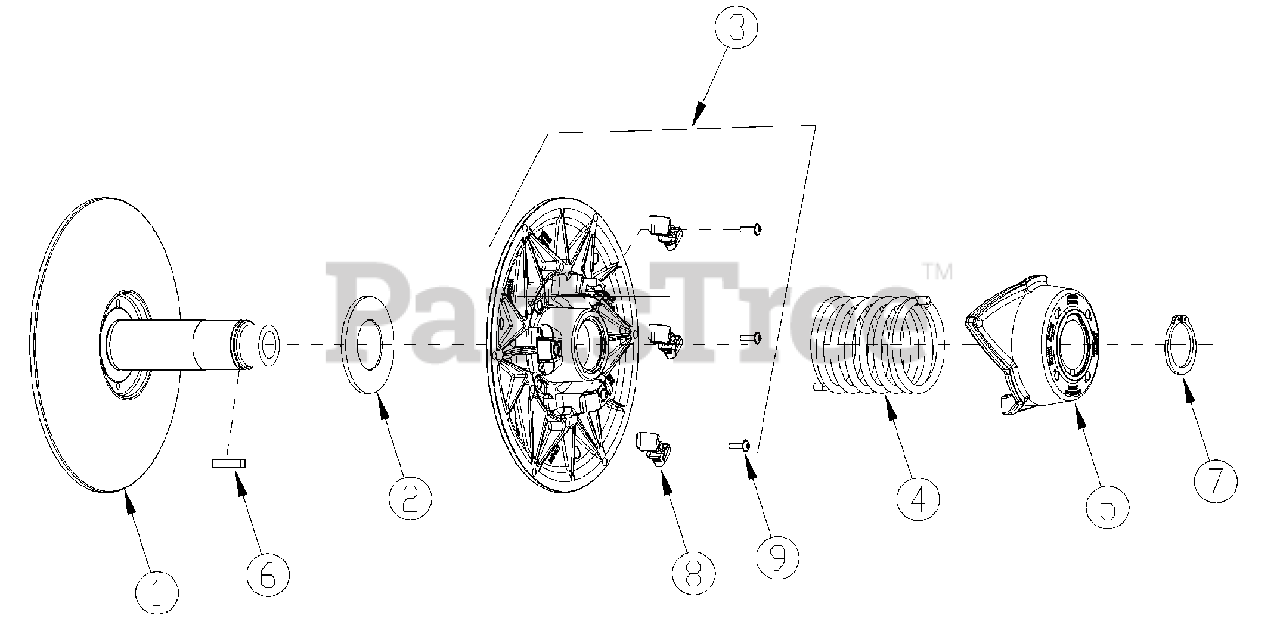

Drive Belt - Driven Pulley Parts Diagram

  • Title
1

Ariens T6105-0005

FIXED FLANGE

$

$

Not available

2

SHIM WASHER

$

$

Not available

3

Ariens T6110-0001

SLIDING FLANGE

$

$

Not available

4

SPRING

$

$

Not available

5

CAM

$

$

Not available

6

SQUARE KEY 1/4

$

$

Not available

7

Ariens T0080-0220

SNAP RING

$

$

Not available

8

$

$

Not available

9

Ariens T0080-0031

HEX. SOCKET BUTTON HEAD

$

$

Not available
