996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Dump Bed Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

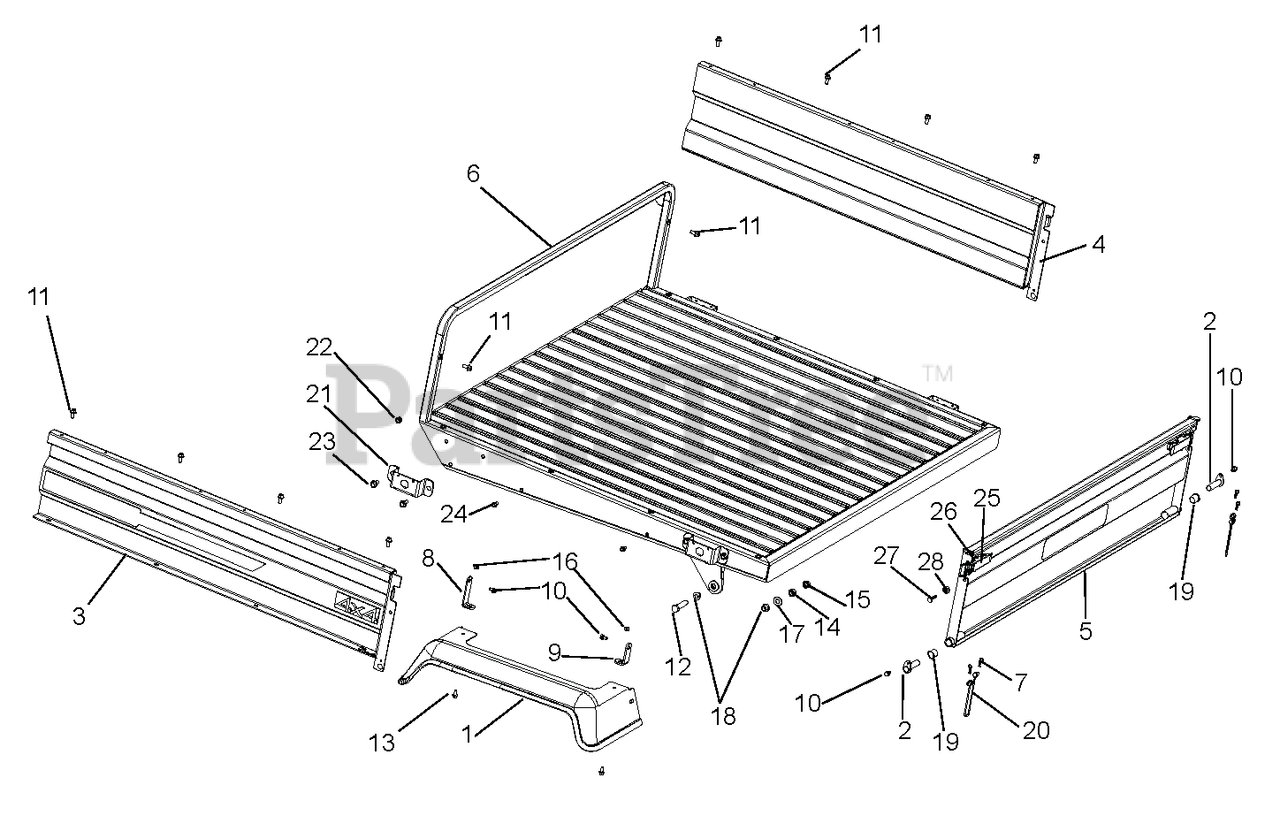

Dump Bed Parts Diagram

  • Title

1

Ariens T840-122C

FENDER, REAR UNIVERSAL

$

$

Not available

2

Ariens T700-461H

WELDMENT, TAILGATE PIVOT

$

$

Not available

3

Ariens 50501700

KIT,LH ARIENS BED SIDE W/DECAL

Note: (996126)

$

$

Not available

Ariens 50501500

KIT,LH ARIENS BED SIDE W/DECAL

Note: (996148)

$

$

Not available

4

Ariens 50501800

KIT,RH ARIENS BED SIDE W/DECAL

Note: (996126)

$

$

Not available

Ariens 50501600

KIT,RH ARIENS BED SIDE W/DECAL

Note: (996148)

$

$

Not available

5

Ariens 50501900

KIT,ARIENS TAILGATE W/DECALS

$

$

Not available

6

Ariens 04419000

ASM, BED BASE

$

$

Not available

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

8

Ariens T700-588D

BRACKET, FENDER MOUNT FRONT

$

$

Not available

9

Ariens T700-590D

BRACKET, FENDER MOUNT REAR

$

$

Not available

10

Ariens 07430103

SCREW HEX SELF-TAP 1/4-20X 1/2

$

$

Not available

11

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 13

0

12

Ariens T802-797C

HFS 1/2-13X2 1/4 GR5 PLT

$

$

Not available

13

Ariens 07051300

BLT-SCRHFWH .25-20X.62 YWZC

$

$

Not available

14

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 15

0

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

17

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Ariens T817-559C

BUSHING 1/2IDX5/8ODX1/2 FLANGE

$

$

Not available

19

Ariens T817-616C

BSHG FLG .63IDX.75ODX1.50L

$

$

Not available

20

Ariens 04225300

CABLE, TAILGATE,11.25"

$

$

Not available

21

Ariens 04397500

BRACKET,TREKER,STAKE POCKET

$28.99

$

Usually ships in 4-12 days

0

22

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

23

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, only 2 left!

0

24

Ariens 07051300

BLT-SCRHFWH .25-20X.62 YWZC

$

$

Not available

25

Ariens 04215500

LATCH, TAILGATE

$

$

Not available

26

Ariens 04146751

SPACER, LATCH

$

$

Not available

27

Ariens 06200201

BLT-RDHDSQNK 10-24X.75 G5 Y

$

$

Not available

28

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0
