996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 000101 - 019999) Rear Transaxle Components Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

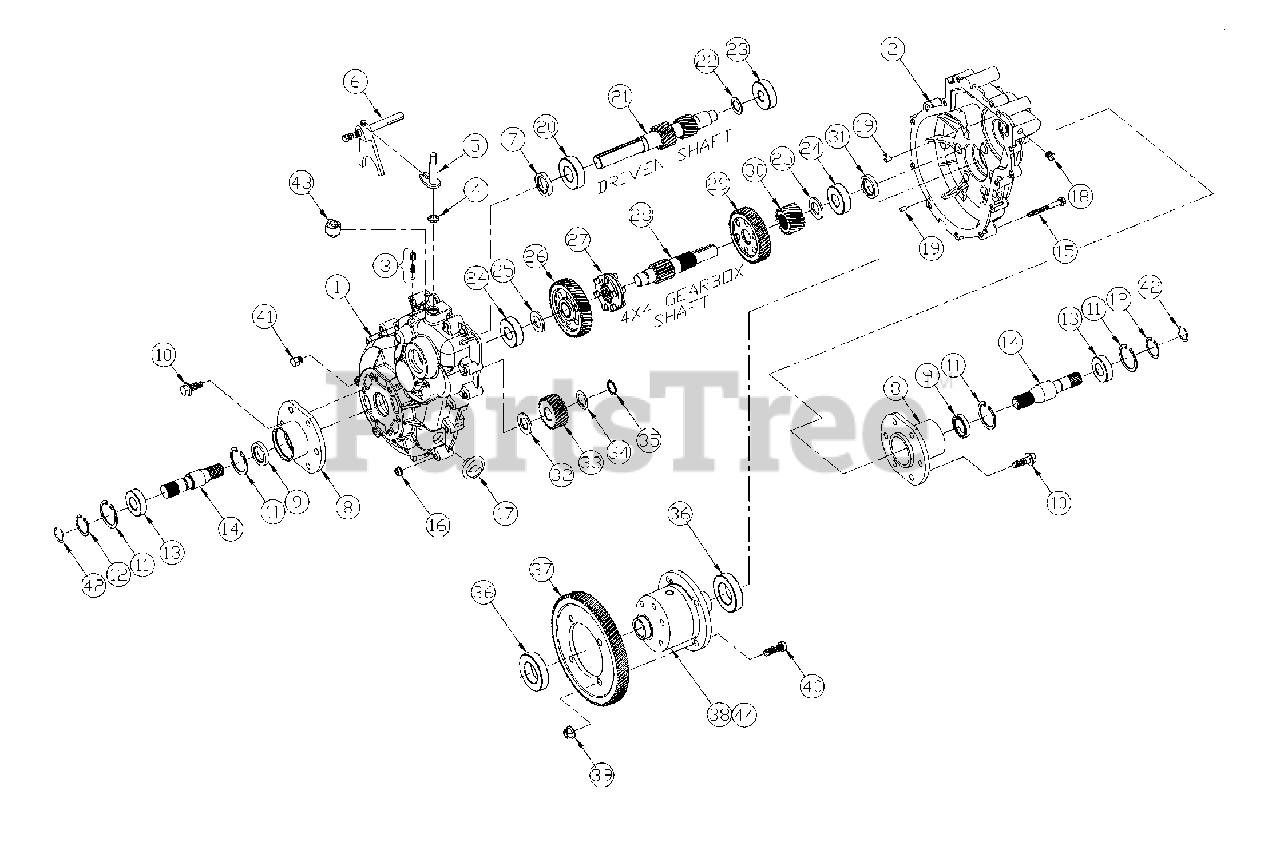

Rear Transaxle Components Parts Diagram

  • Title

Ariens T826-454C

TRANSAXLE, DANA

$

$

Not available

1

Ariens T012CH291-2X

DANA HOUSING AND SHAFT ASSBLY

$374.99

$

Usually ships in 4-12 days

0

2

Ariens T012CH289

DANA HOUSING-AXLE FIN

$320.99

$

Usually ships in 4-12 days

0

3

Ariens T012LK133

DANA KIT, DETENT

$

$

Not available

4

Ariens T012HH122

DANA SEAL - OIL

$

$

Not available

5

Ariens T012GV164-X

DANA ACTUATOR ASSY

$

$

Not available

6

Ariens T012SV118-X

DANA SHIFT ROD SUB-ASSY

$

$

Not available

7

Ariens T012HH128

DANA SEAL - OIL

$

$

Not available

8

Ariens T012TA378

REAR TUBE ASSY

$

$

Not available

9

Ariens T012HH107

SEAL - OIL

$

$

Not available

10

Ariens T026HM107

DANA SCREW - FLG HEAD

$

$

Not available

11

Ariens T840293

DANA RING, RETAINING

$

$

Not available

12

Ariens T012HR133

RING - RETAINER

$

$

Not available

13

Ariens T012HD106

BEARING - BALL SINGLE

$

$

Not available

14

Ariens T012SR172

SHAFT - AXLE, FIN

$

$

Not available

15

Ariens T012HM110-1

DANA SCREW - FLG HEAD

$

$

Not available

16

Ariens T012HN120

DANA NUT - LOCK

$

$

Not available

17

Ariens T41356

DANA PLUG - RUBBER

$

$

Not available

18

Ariens T012HN140

DANA VENT PLUG

$

$

Not available

19

Ariens T012HP120

DANA PIN - DOWEL

$

$

Not available

20

Ariens T585965

DANA BEARING 6205

$

$

Not available

21

Ariens T012GS307

DANA SHAFT - INPUT FIN

$

$

Not available

22

Ariens T012LK134

DANA KIT, SHIM

$

$

Not available

23

Ariens T012HD111

DANA BEARING -6303 BALL SINGLE

$

$

Not available

24

Ariens T012HD129

DANA BEARING -6204 BALL SINGLE

$

$

Not available

25

Ariens T012HS121

DANA SPACER - FLAT

$

$

Not available

26

Ariens T012GS202-X

DANA GEAR ASSY - FORWARD

$200.99

$

Usually ships in 4-12 days

0

27

Ariens T012GS302

DANA GEAR - CLUTCH

$

$

Not available

28

Ariens T012GS337

DANA SHAFT - INTERMEDIATE FIN

$

$

Not available

29

Ariens T012GS204-X

DANA GEAR ASSY - REVERSE

$

$

Not available

30

Ariens T012GS215

DANA GEAR - HELICAL FIN

$

$

Not available

31

Ariens T012HH140

DANA SEAL - OIL

$

$

Not available

32

Ariens T012HS125

DANA WASHER - THRUST

$

$

Not available

33

Ariens T012GS207-X

DANA GEAR ASSY - IDLER

$

$

Not available

34

Ariens T012HS126

DANA WASHER - THRUST

$

$

Not available

35

Ariens T012HR128

DANA RING - SNAP

$

$

Not available

36

Ariens T585994

DANA BEARING 6007

$

$

Not available

37

Ariens T012GS216

DANA GEAR - HELICAL FIN

$

$

Not available

38

Ariens T826-458C

DIFFERENTIAL, AUTO-LOCK

$

$

Not available

39

Ariens T012HN138

RPBY 35704

$

$

Not available

40

Ariens T012HM129

DANA BOLT - HEX

$

$

Not available

41

Ariens T012HG145

DANA DRAIN PLUG

$

$

Not available

42

Ariens T012HR132

RETAINER - SHAFT, AXLE

$

$

Not available

43

Ariens T5803

SWITCH, NEUTRAL, DANA GBOX

$

$

Not available

44

Ariens T700-518A

AUTO-LOK KIT

Note: (Kit includes 1 ea. #38, 4 ea. #39 & 4 ea. #40)

$

$

Not available

45

Ariens 00070019

OIL,THP FLUID-424 EQUIV-2.5GAL

Note: (Not Shown)

$

$

Not available
