996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Hood Assembly Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

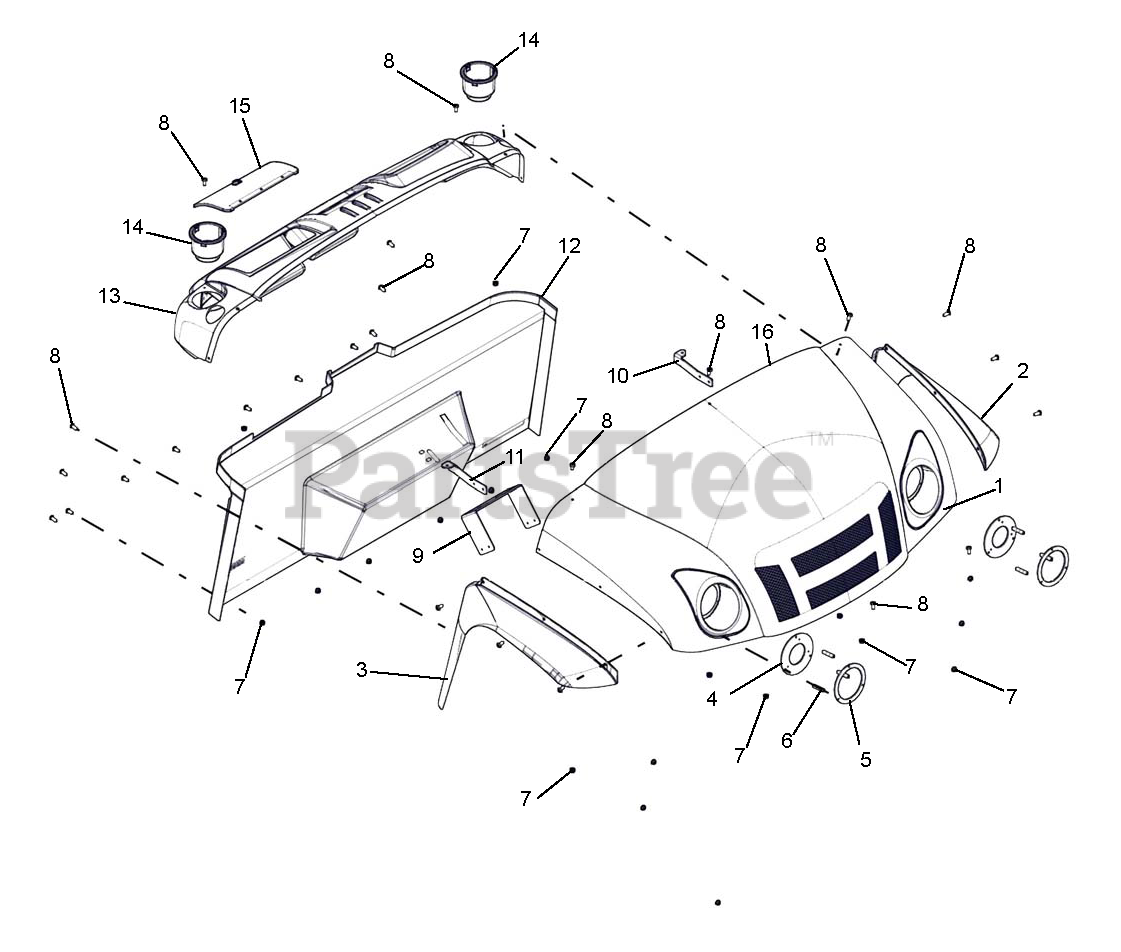

Hood Assembly Parts Diagram

  • Title

1

Ariens 50501400

KIT, HOOD W/DECALS

$

$

Not available

2

Ariens 04075002

FENDER, FRONT, LH

$

$

Not available

3

Ariens 04075003

FENDER, FRONT, RH

$

$

Not available

4

Ariens 04266651

TOP FLANGE, HEADLIGHT

$

$

Not available

5

Ariens 04266551

BASE FLANGE, HEADLIGHT

$

$

Not available

6

Ariens 04266751

SPACER, HEADLIGHT

$

$

Not available

7

Ariens T803-293C

NUT HEX FLG TL 1/4-20 ZNYCR

$

$

Not available

8

Ariens T801-181C

TTHMS 1/4-20X1 ZNYCR

$

$

Not available

9

Ariens 04182851

BRACKET,MNT,SWITCH

$

$

Not available

10

Ariens 04183351

BRACKET,MNT,CUPHOLDER,LH

$

$

Not available

11

Ariens 04182751

BRACKET, MNT,CUP HOLDER

$

$

Not available

12

Ariens 50528005

KIT, FOOTWELL W/DECALS

$

$

Not available

13

Ariens 50502000

DASH, ASM W/DECALS 4X2

Note: (996126)

$

$

Not available

Ariens 50502100

DASH, ASM W/DECALS 4X4

Note: (996148)

$

$

Not available

14

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 04379300

DOOR, GLOVEBOX NO LOGO

$

$

Not available

16

Ariens T816-318C

TRIM, 1/8 RUBBER EDGE(PER FT)

$

$

Not available
