996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Rear Transaxle and Axle Shafts Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

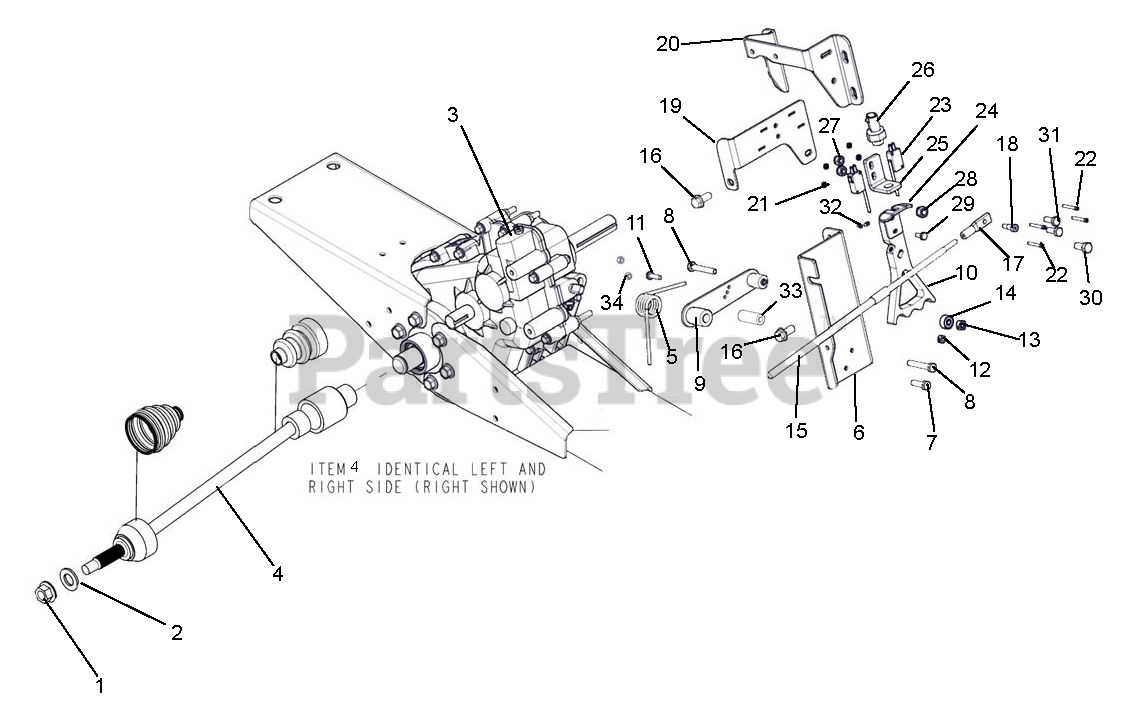

Rear Transaxle and Axle Shafts Parts Diagram

  • Title

1

Ariens T803-332C

NUT HEX FLG T LCK M16X1.5 PLT

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

3

Ariens T826-454C

TRANSAXLE, DANA

$

$

Not available

4

Ariens T826-456C

REAR AXLE SHFT ST, 24T INT.SPL

$

$

Not available

5

Ariens 04261900

SPRING, TORSION, 1.058 X .777

$

$

Not available

6

Ariens 04264151

BRACKET, SHIFT

$

$

Not available

7

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

8

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 5

0

9

Ariens 04264651

FOLLOWER WLDT

$

$

Not available

10

Ariens 04263900

SHIFT CAM, TRANS SIDE

$

$

Not available

11

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

12

Ariens 00964028

LOCKNUT, 10-24 CENTER Y
(Superseded to 06540500)

$

$

Not available

13

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00191185

BRG, BAL .250X.688X.313

$10.99

$

Usually ships in 4-12 days

0

15

Ariens T840-270C

SHIFT CABLE (DASH)

Note: (DASH)

$148.99

$

Usually ships in 4-12 days

0

16

Ariens T802-387C

HFS 5/16-18X3/4 GR5

$

$

Not available

17

Ariens 04187200

CABLE END

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 07070101

BLT-SHLDR .25X.375

$6.49

$

Usually ships in 4-12 days

0

19

Ariens 04226851

BRACKET,MNT,SWITCH

$

$

Not available

20

Ariens T700-286D

BRACKET, CVT COVER TO TRANS.

$

$

Not available

21

Ariens 06545700

NUT-HEX 4-40 YWZC GR5

$

$

Not available

22

Ariens T802-788C

HSHCS #4-40X1

$

$

Not available

23

Ariens T833-330C

PARK BRAKE MICRO-SWITCH

$

$

Not available

24

Ariens 04314151

BRACKET, SWITCH ACTIVATING

$

$

Not available

25

Ariens 04314251

MOUNT, PLUNGER SWITCH

$

$

Not available

26

Ariens 00200412

SWITCH, NEUTRAL

$

$

Not available

27

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

28

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

32

Ariens 06006000

SCR-SET .25-28X.375 SK CUP

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 04264300

BUSHING, 0253 X .495 X 1.0625

$

$

Not available

34

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
