996148 - Ariens Contractor 4WD Utility Vehicle, Subaru EH65 (SN: 020000 & Above) Transfer Case and Rear Driveshaft Parts Diagram

Contractor 4WD Utility Vehicle, Subaru EH65

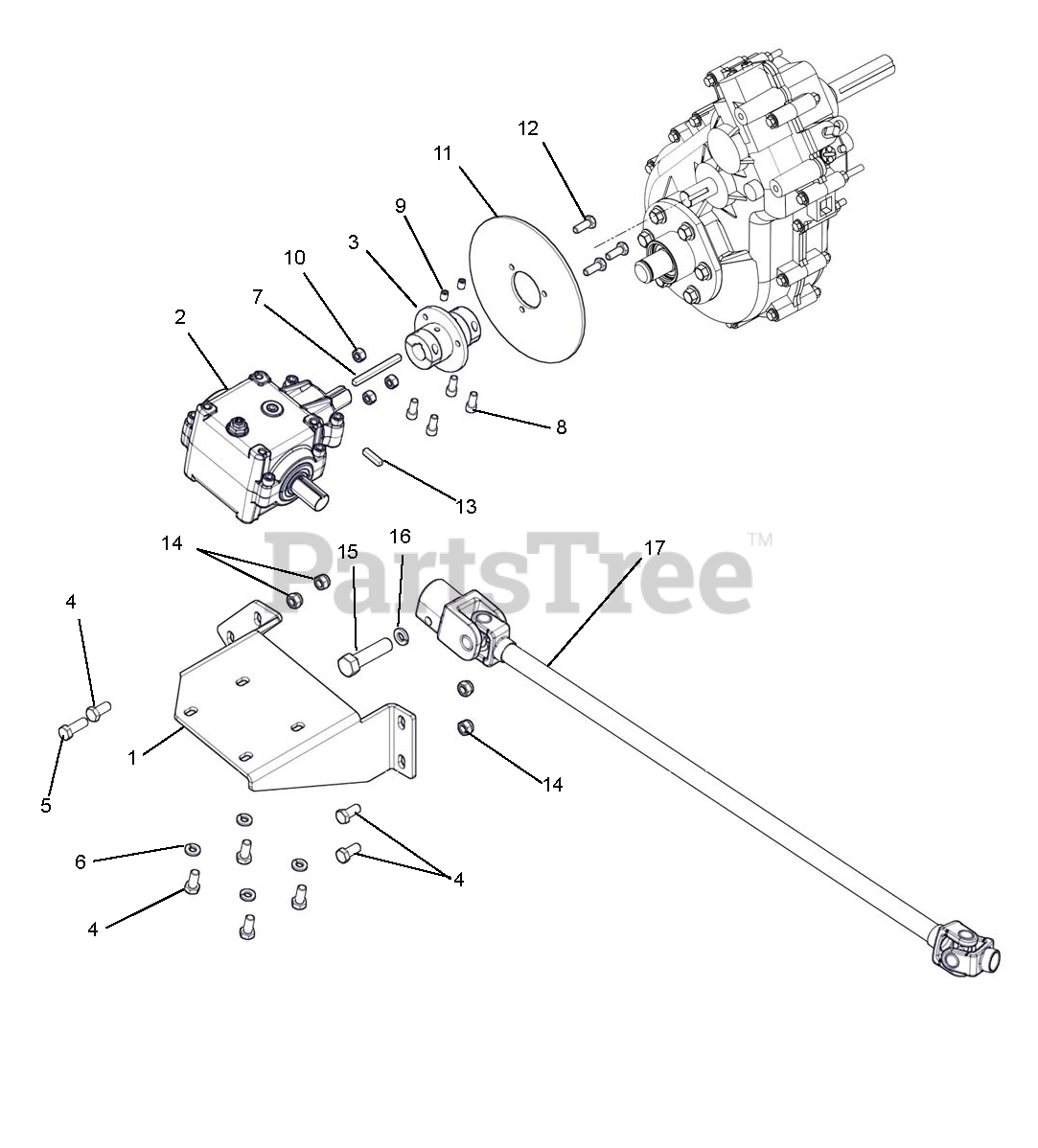

Transfer Case and Rear Driveshaft Parts Diagram

  • Title

1

Ariens 04228651

4X4 MOUNT PLATE

$

$

Not available

2

Ariens T826-417C

GBOX MODEL R100 1.5TO1 RATIO

$

$

Not available

3

Ariens 04054400

COUPLER, SHORT

$

$

Not available

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

5

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00130969

KEY, .188 X .188 X 2.50 SQ

$3.49

$

Usually ships in 4-12 days

0

8

Ariens T802-774C

HSHCS 1/4-28X5/8

$

$

Not available

9

Ariens 06006000

SCR-SET .25-28X.375 SK CUP

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 04228200

DISK, PARK BRAKE

$

$

Not available

12

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

13

Ariens T800-296C

KEY 3/16 X 7/8

$

$

Not available

14

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

16

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

17

Ariens T826-419C

REAR HALF DRIVELINE 4X4 ST

$678.99

$

Usually ships in 4-12 days

0
