996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 160100 - 170100) Shift Lever And Cable Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

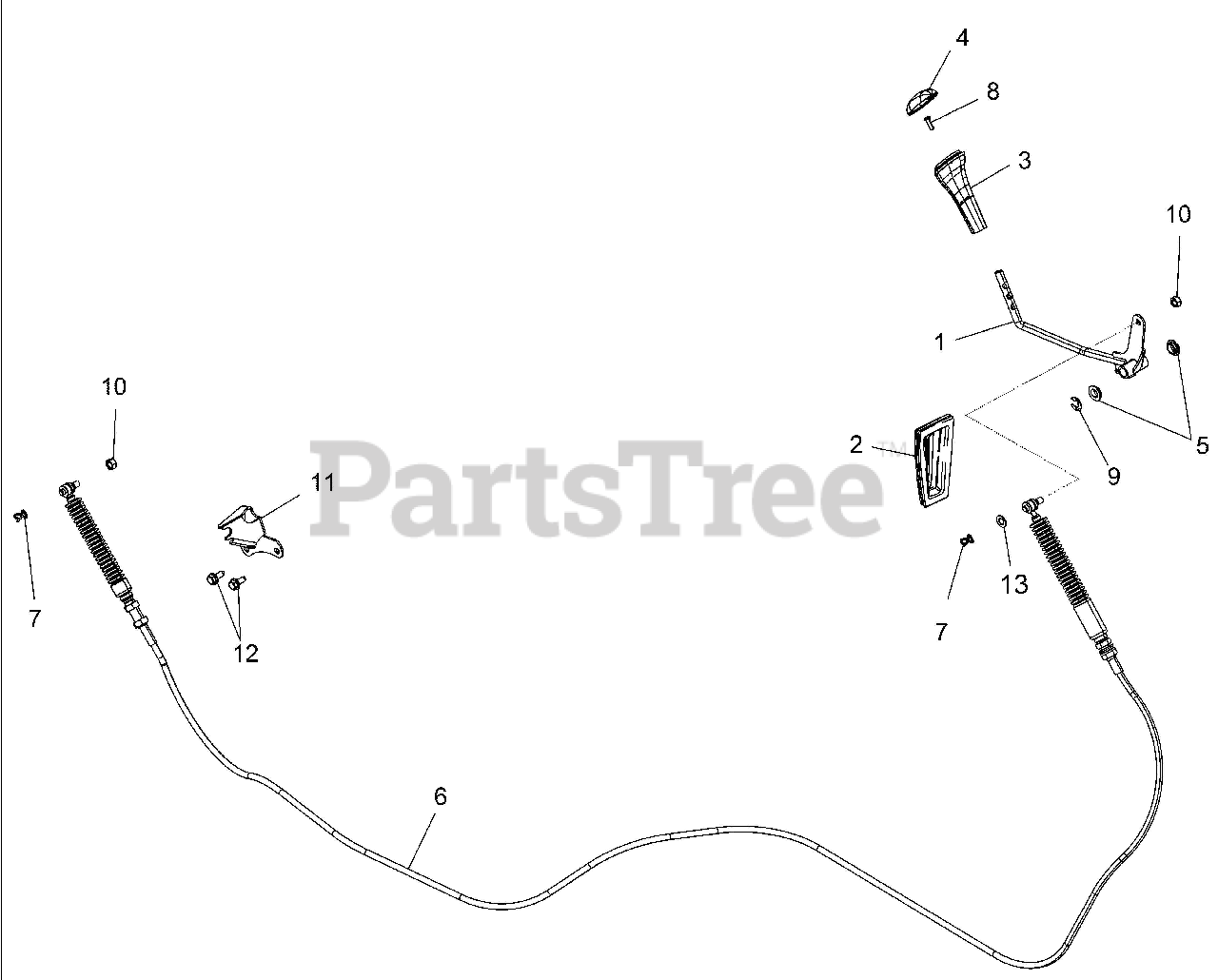

Shift Lever And Cable Parts Diagram

  • Title

1.

Gravely 21900810

WELD-SHIFT LEVER,BLK

$

$

Not available

2.

Gravely 21900231

GROMMET-SHIFT LEVER

$

$

Not available

3.

Gravely 21900243

KNOB-GEAR SELECTOR SHIFT

$

$

Not available

4.

Gravely 21900274

COVER-SHIFT

$

$

Not available

5.

Gravely 21900268

BUSHING-PEDAL PIVOT

$

$

Not available

6.

Gravely 21901420

CABLE, SHIFT

$

$

Not available

7.

Gravely 21900498

PIN-CLIP,14MM

$

$

Not available

8.

Gravely 21900366

SCREW

$

$

Not available

9.

Gravely 21900518

E RING

$

$

Not available

10.

Gravely 21900461

NUT,NYLOK M8X1.25(10) *

$

$

Not available

11.

Gravely 21900196

BRKT-SHIFT CABLE

$

$

Not available

12.

Gravely 21900445

BOLT-M10X1.25X16,HXHD,FLG

$

$

Not available

13.

Gravely 21900827

WASHER,FLAT(10)

$

$

Not available
