996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 170101 - 179999) Rear Half Shaft Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

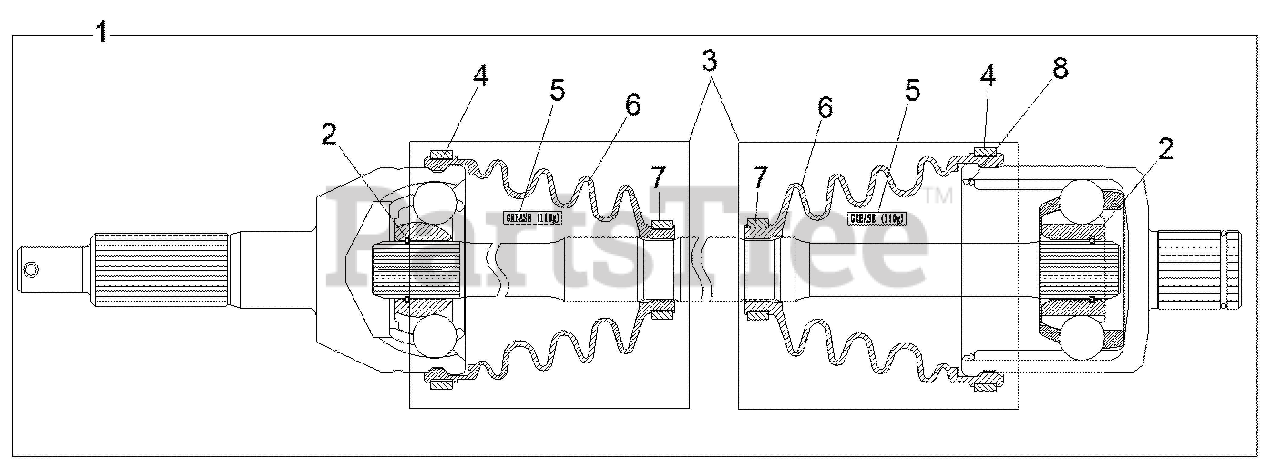

Rear Half Shaft Parts Diagram

  • Title

1.

Gravely 21900036

ASM-DRIVESHAFT,REAR

Note: [INCL. 2-8]

$

$

Not available

2.

Gravely N/A

CIRCLIP(PR-3041)

$

$

Currently unavailable

3.

Gravely 21900627

KIT-BOOT(PR-8071)

Note: [INCL. 4-7]

$

$

Not available

4.

Gravely 21900642

CLAMP-LARGE(PR-0027)

$

$

Not available

5.

Gravely 21900649

GREASE(K575/VW738)

$

$

Not available

6.

Gravely 21900657

BOOT(PR-0025)

$

$

Not available

7.

Gravely 21900647

CLAMP-SMALL(PR-0026)

$

$

Not available

8.

Gravely 21901705

RING-RUBBER

$

$

Not available
