996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Clutch Cover And Ducting Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

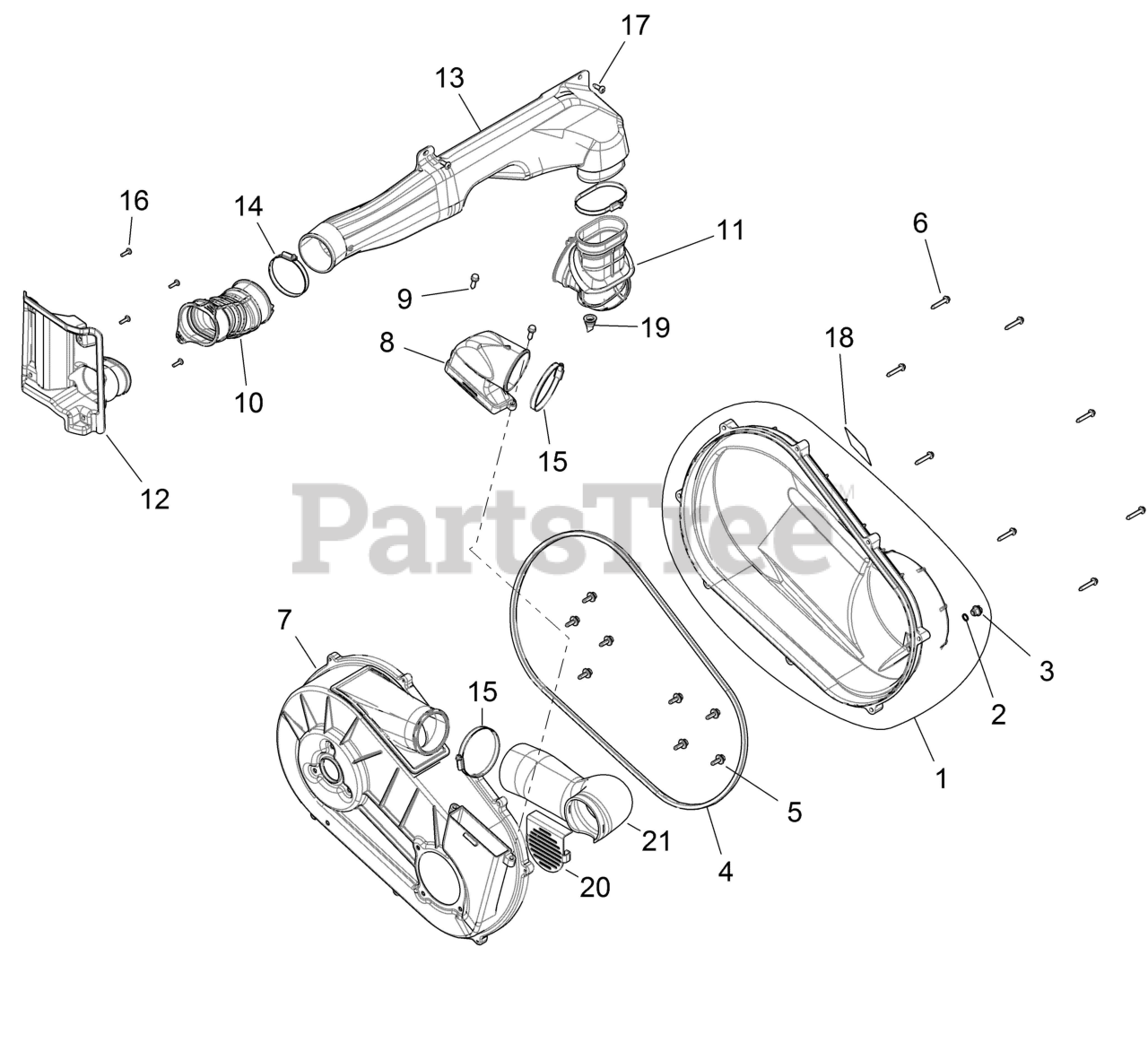

Clutch Cover And Ducting Parts Diagram

  • Title
1

Gravely 21900086

ASM-COVER,CLUTCH,OUTER

Note: [INCL. 2-3]

$

$

Not available

2

Gravely 21900208

O RING-.364X.504X.07

$

$

Not available

3

Gravely 21900253

PLUG-DRAIN

$

$

Not available

4

Gravely 21900278

SEAL-OUTER CLUTCH COVER

$

$

Not available

5

Gravely 21900433

ASM-BOLT/WASHER,20 MM

$

$

Not available

6

Gravely 21900439

SCR-HXFL-M6X35 ZOD HILO

$

$

Not available

7

Gravely 21901947

ASM, INNER CLUTCH COVER

Note: [INCL. 8-9]

$

$

Currently unavailable

8

Gravely 21900866

DUCT-CLUTCH,AIR IN

$

$

Not available

9

Gravely 21900370

SCREW (10)

$

$

Not available

10

Gravely 21900245

HOSE-INTAKE,CLUTCH

$

$

Not available

11

Gravely 21901870

HOSE-CLUTCH,AIR IN,TRAP,570

$

$

Not available

12

Gravely 21900275

INTAKE-FENDER-REAR

$

$

Not available

13

Gravely 21900277

DUCT-INTAKE,CLUTCH

$

$

Not available

14

Gravely 21900338

CLAMP,BAND,NARROW (10)

$

$

Not available

15

Gravely 21900343

CLAMP-BAND,NARROW 70-90MM

$

$

Not available

16

Gravely 21900389

SCR-10X5/8-HI/LO,PN-T25,TRX-M

$

$

Not available

17

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

18

Gravely 21901396

DECAL, BELT, CAUTION/CHECK

$

$

Not available

19

Gravely 21901867

PLUG-DRAIN

$

$

Not available

20

Gravely 21901959

BRKT, GRATE

$

$

Currently unavailable

21

Gravely 21901963

HOSE, CLUTCH OUTLET

$

$

Currently unavailable
