996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Cylinder Head, Cams And Valves Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

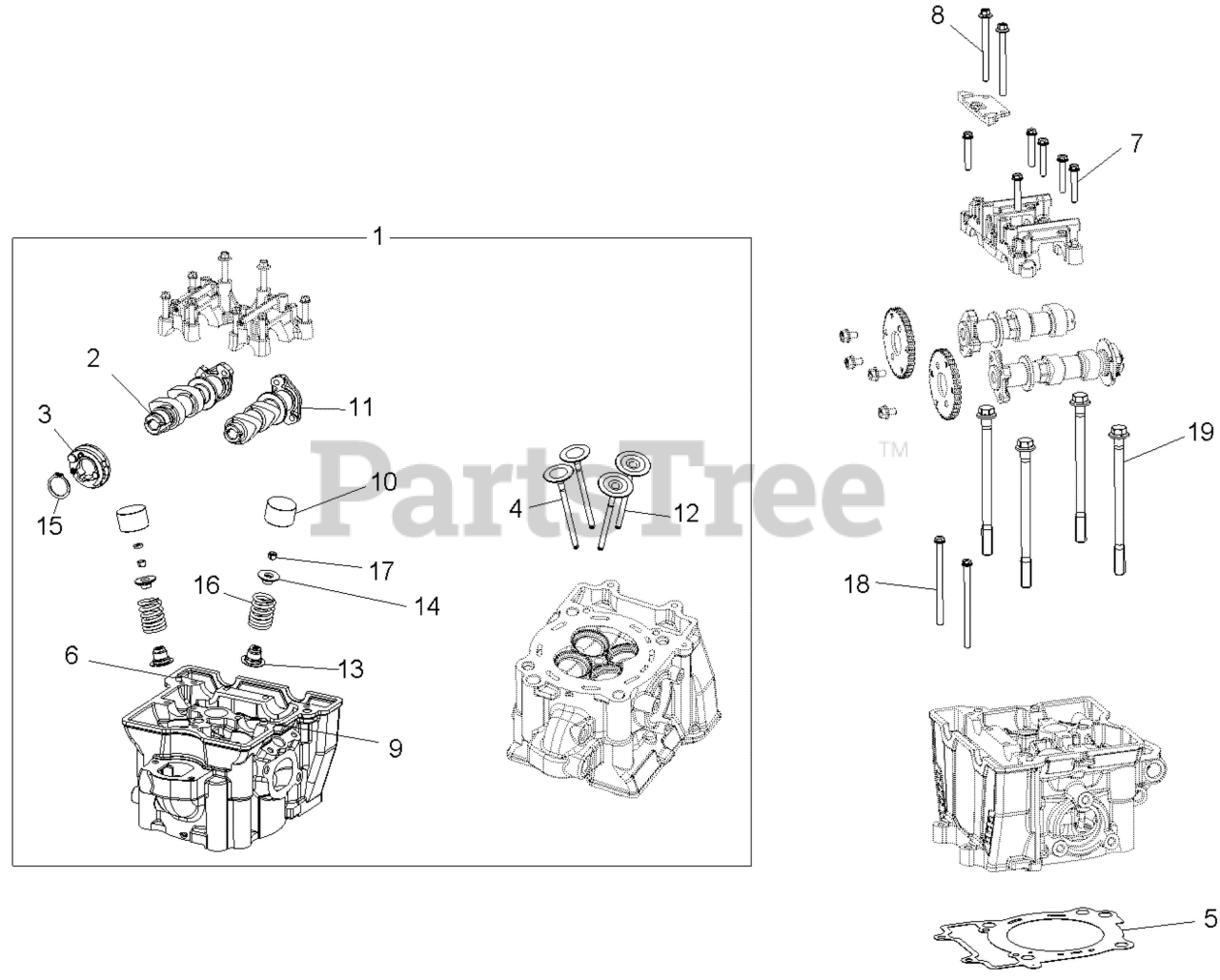

Cylinder Head, Cams And Valves Parts Diagram

  • Title

1

Gravely 21900112

ASM-CYLINDER HEAD,1CYL,MACH
(Superseded to 21900842)

Note: W/REF. HEAD, GUIDES, CARRIER, 6-9

$

$

Not available

2

Gravely 21901846

CAMSHAFT-EXH,MACH

$

$

Not available

3

Gravely 21900026

ASM-DECOMP SYSTEM,LH

$

$

Not available

4

Gravely 21901848

VALVE-INTAKE,STEEL

$

$

Not available

5

Gravely 21901871

GASKET-CYL HEAD,1 CYL,99MM

$

$

Not available

6

PIN, DOWEL

$

$

Not available

7

Gravely 21901879

SCR-HXFL-M6X1.0X35 10.9 ZY3

$

$

Not available

8

Gravely 21900427

SCR-HXFL M6X1.0X70 B18.2.3.4M

$

$

Not available

9

Gravely 21900505

DWL-HOL,M8X10

$

$

Not available

10

Gravely 21900726

TAPPET-VALVE,GRADED 4.400

$

$

Not available

10

Gravely 21900769

TAPPET-VALVE,GRADED 4.425

$

$

Not available

10

Gravely 21900766

TAPPET-VALVE,GRADED 4.450

$

$

Not available

10

Gravely 21900767

TAPPET-VALVE,GRADED 4.475

$

$

Not available

10

Gravely 21900753

TAPPET-VALVE,GRADED 4.500

$

$

Not available

10

Gravely 21900756

TAPPET-VALVE,GRADED 4.525

$

$

Not available

10

Gravely 21900745

TAPPET-VALVE,GRADED 4.550

$

$

Not available

10

Gravely 21900746

TAPPET-VALVE,GRADED 4.575

$

$

Not available

10

Gravely 21900717

TAPPET-VALVE,GRADED 4.600

$

$

Not available

10

Gravely 21900720

TAPPET-VALVE,GRADED 4.625

$

$

Not available

10

Gravely 21900703

TAPPET-VALVE,GRADED 4.650

$

$

Not available

10

Gravely 21900698

TAPPET-VALVE,GRADED 4.675

$

$

Not available

10

Gravely 21900699

TAPPET-VALVE,GRADED 4.70

$

$

Not available

10

Gravely 21900705

TAPPET-VALVE,GRADED 4.725

$

$

Not available

10

Gravely 21900691

TAPPET-VALVE,GRADED 4.750

$

$

Not available

10

Gravely 21900696

TAPPET-VALVE,GRADED 4.775

$

$

Not available

10

Gravely 21900685

TAPPET-VALVE,GRADED 4.800

$

$

Not available

10

Gravely 21900682

TAPPET-VALVE,GRADED 4.825

$

$

Not available

10

Gravely 21900681

TAPPET-VALVE,GRADED 4.850

$

$

Not available

10

Gravely 21900700

TAPPET-VALVE,GRADED 4.875

$

$

Not available

10

Gravely 21900688

TAPPET-VALVE,GRADED 4.900

$

$

Not available

10

Gravely 21900706

TAPPET-VALVE,GRADED 4.925

$

$

Not available

10

Gravely 21900689

TAPPET-VALVE,GRADED 4.950

$

$

Not available

10

Gravely 21900702

TAPPET-VALVE,GRADED 4.975

$

$

Not available

10

Gravely 21900707

TAPPET-VALVE,GRADED 5.000

$

$

Not available

10

Gravely 21900714

TAPPET-VALVE,GRADED 5.025

$

$

Not available

10

Gravely 21900725

TAPPET-VALVE,GRADED 5.050

$

$

Not available

10

Gravely 21900731

TAPPET-VALVE,GRADED 5.075

$

$

Not available

10

Gravely 21900743

TAPPET-VALVE,GRADED 5.100

$

$

Not available

10

Gravely 21900748

TAPPET-VALVE,GRADED 5.125

$

$

Not available

10

Gravely 21900740

TAPPET-VALVE,GRADED 5.150

$

$

Not available

10

Gravely 21900744

TAPPET-VALVE,GRADED 5.175

$

$

Not available

10

Gravely 21900770

TAPPET-VALVE,GRADED 5.200

$

$

Not available

10

Gravely 21900751

TAPPET-VALVE,GRADED 5.225

$

$

Not available

10

Gravely 21900785

TAPPET-VALVE,GRADED 5.250

$

$

Not available

10

Gravely 21900754

TAPPET-VALVE,GRADED 5.275

$

$

Not available

10

Gravely 21900741

TAPPET-VALVE,GRADED 5.300

$

$

Not available

10

Gravely 21900788

TAPPET-VALVE,GRADED 5.325

$

$

Not available

10

Gravely 21900719

TAPPET-VALVE,GRADED 5.350

$

$

Not available

10

Gravely 21900778

TAPPET-VALVE,GRADED 5.375

$

$

Not available

10

Gravely 21900750

TAPPET-VALVE,GRADED 5.400

$

$

Not available

10

Gravely 21900790

TAPPET-VALVE,GRADED 5.425

$

$

Not available

10

Gravely 21900775

TAPPET-VALVE,GRADED 5.450

$

$

Not available

11

Gravely 21901845

CAMSHAFT-INTAKE,MACH

$

$

Not available

12

Gravely 21901847

VALVE-EXHAUST,INCONEL

$

$

Not available

13

Gravely 21900136

SEAT-W/SEAL,VALVE SPRING

$

$

Not available

14

Gravely 21900172

RETAINER,VALVE

$

$

Not available

15

Gravely 21900515

RING-SNAP EXT 23MM

$

$

Not available

16

Gravely 21900312

SPRING,VALVE

$

$

Not available

17

Gravely 21900347

KEEPER-VALVE

$

$

Not available

18

Gravely 21900423

SCREW

$

$

Not available

19

Gravely 21901741

BOLT, HEAD,M11X1.0X1.25X150

$

$

Not available
