996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 180101 - 189999) Front Gearcase Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

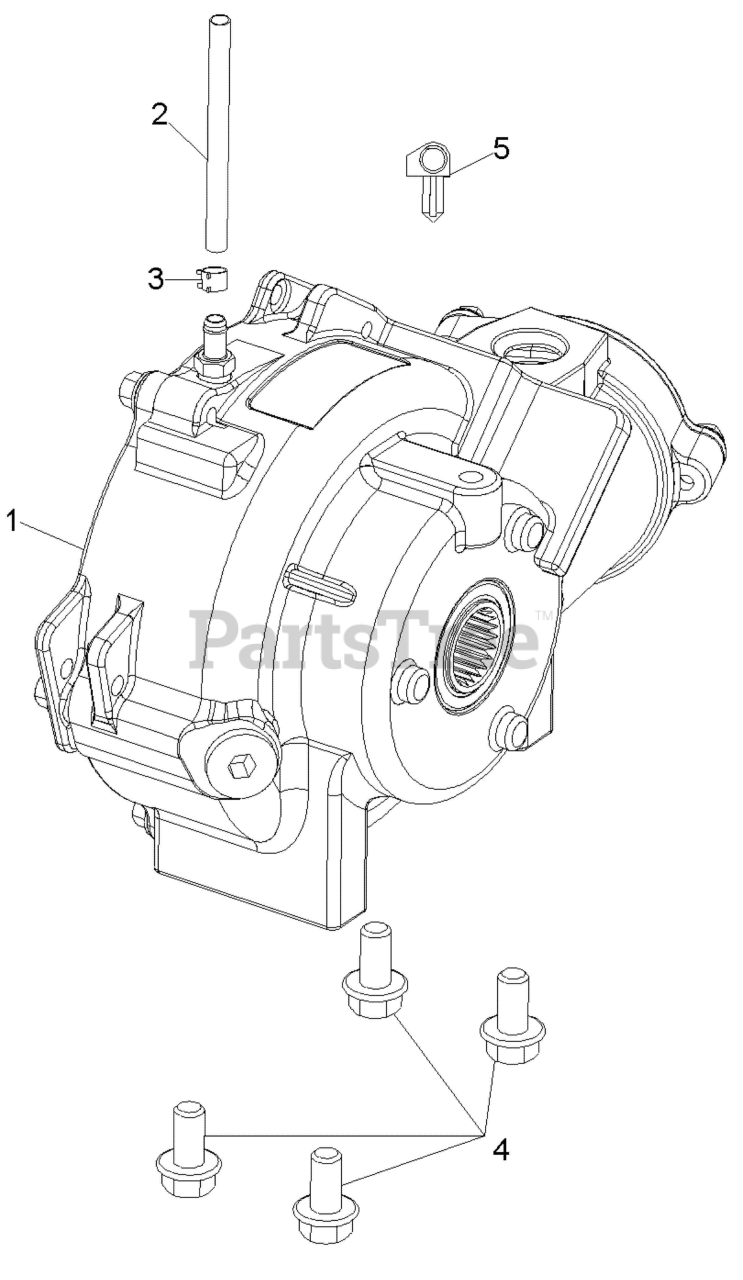

Front Gearcase Mounting Parts Diagram

  • Title

1

ASM., FRONT GEARCASE 12 POCKET

$

$

Not available

2

Gravely 21901896

LINE-BOOST,3/16 ID,76CM

$

$

Not available

3

Gravely 21900326

CLAMP,HOSE(10)

$

$

Not available

4

Gravely 21900391

BOLT-M10X1.5X20,HXFLG,W/PATCH

$

$

Not available

5

Gravely 21900510

CLIP,ROUTING,.472 B.D.,HINGED

$

$

Not available
