996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 150101 - 159999) Exhaust System Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

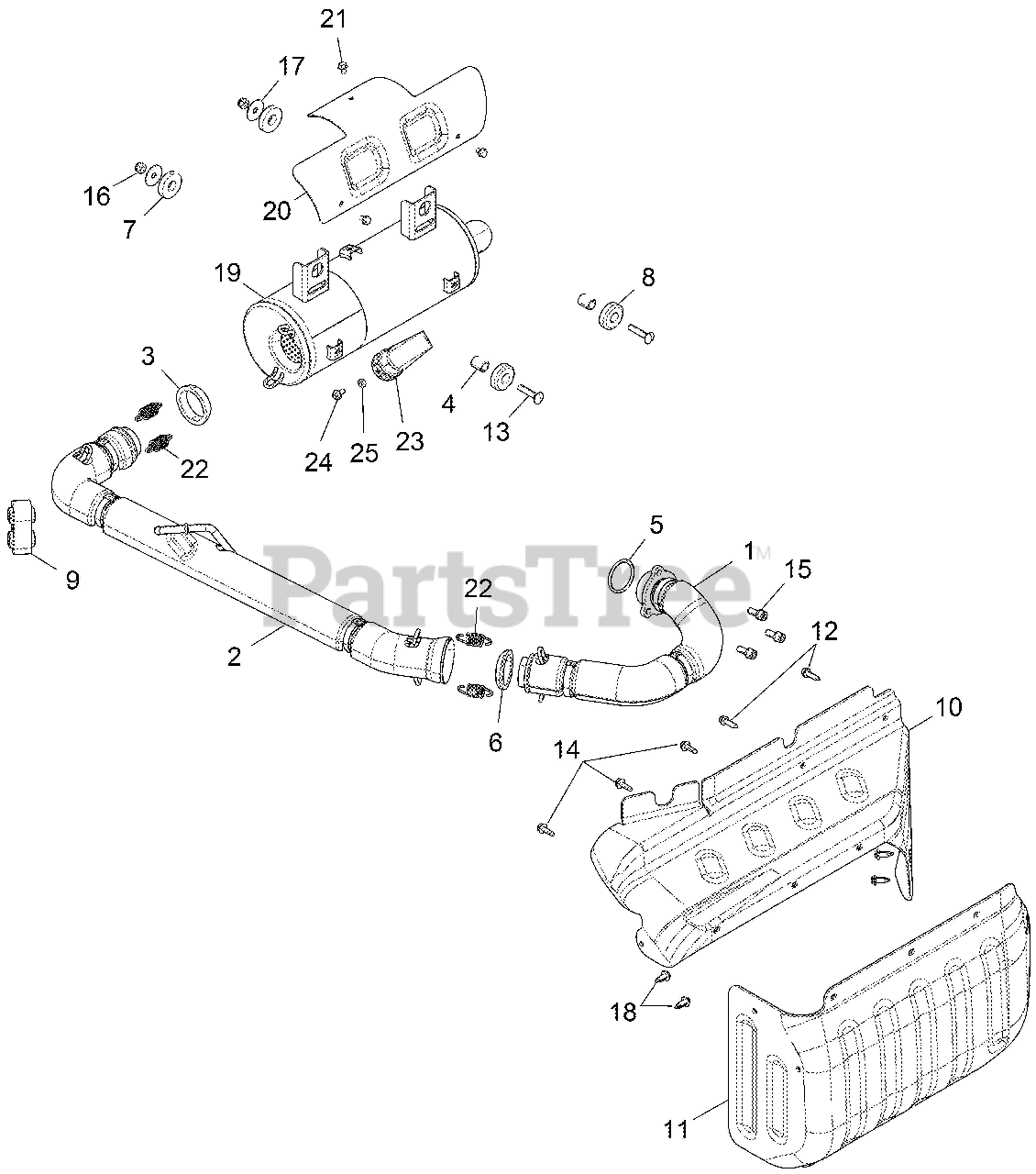

Exhaust System Parts Diagram

  • Title
1.

Gravely 21901403

ASM., HEADPIPE, FRONT

$

$

Not available

2.

Gravely 21901402

ASM., HEADPIPE

$

$

Not available

3.

Gravely 21900135

SEAL-EXHAUST, SOCKET

$

$

Not available

4.

$

$

Not available

5.

Gravely 21900190

GASKET-EXHAUST SEALING

$

$

Not available

6.

Gravely 21900194

SEAL-EXHAUST

$

$

Not available

7.

Gravely 21900246

WSHR-15.4X38.1X7.9 RUBBER

Note: [BUILT 10/13/14 AND BEFORE]

$

$

Not available

7.

Gravely 21901316

WASHER, SILENCER MOUNT

Note: [BUILT 10/14/14 AND AFTER]

$

$

Not available

8.

Gravely 21900247

DAMPER-VIBRATION

$

$

Not available

9.

Gravely 21900856

MOUNT-ISOLATOR

$

$

Not available

10.

Gravely 21900299

SHIELD-HEAT,FOIL,TOP

$

$

Not available

11.

Gravely 21900300

SHIELD-HEAT,FOIL,BOTTOM

$

$

Not available

12.

Gravely 21900370

SCREW (10)

$

$

Not available

13.

Gravely 21900373

BOLT

Note: [BUILT 10/13/14 AND BEFORE]

$

$

Not available

13.

Gravely 21900437

SCR-CAR M8X1.25 40 8.8 ZOD

Note: [BUILT 10/14/14 AND AFTER]

$

$

Not available

14.

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

15.

Gravely 21900412

SCR-M8X1.25X22,HX/SO

$

$

Not available

16.

Gravely 21900457

NUT,NYLOK(10)

Note: [BUILT 10/13/14 AND BEFORE]

$

$

Not available

16.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

Note: [BUILT 10/14/14 AND AFTER]

$

$

Not available

17.

$

$

Not available

18.

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

19.

Gravely 21901343

ASM., SILENCER

Note: [INCL. 23-25]

$

$

Not available

20.

Gravely 21900899

SHIELD-SILENCER

$

$

Not available

21.

Gravely 21900372

SCREW(10)

$

$

Not available

22.

$

$

Not available

23.

Gravely 21901405

ARRESTOR, SPARK

$

$

Not available

24.

Gravely 21900377

SCREW,HXFLGHD,M6X12

$

$

Not available

$

$

Not available
