996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 150101 - 159999) Fuel Tank Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

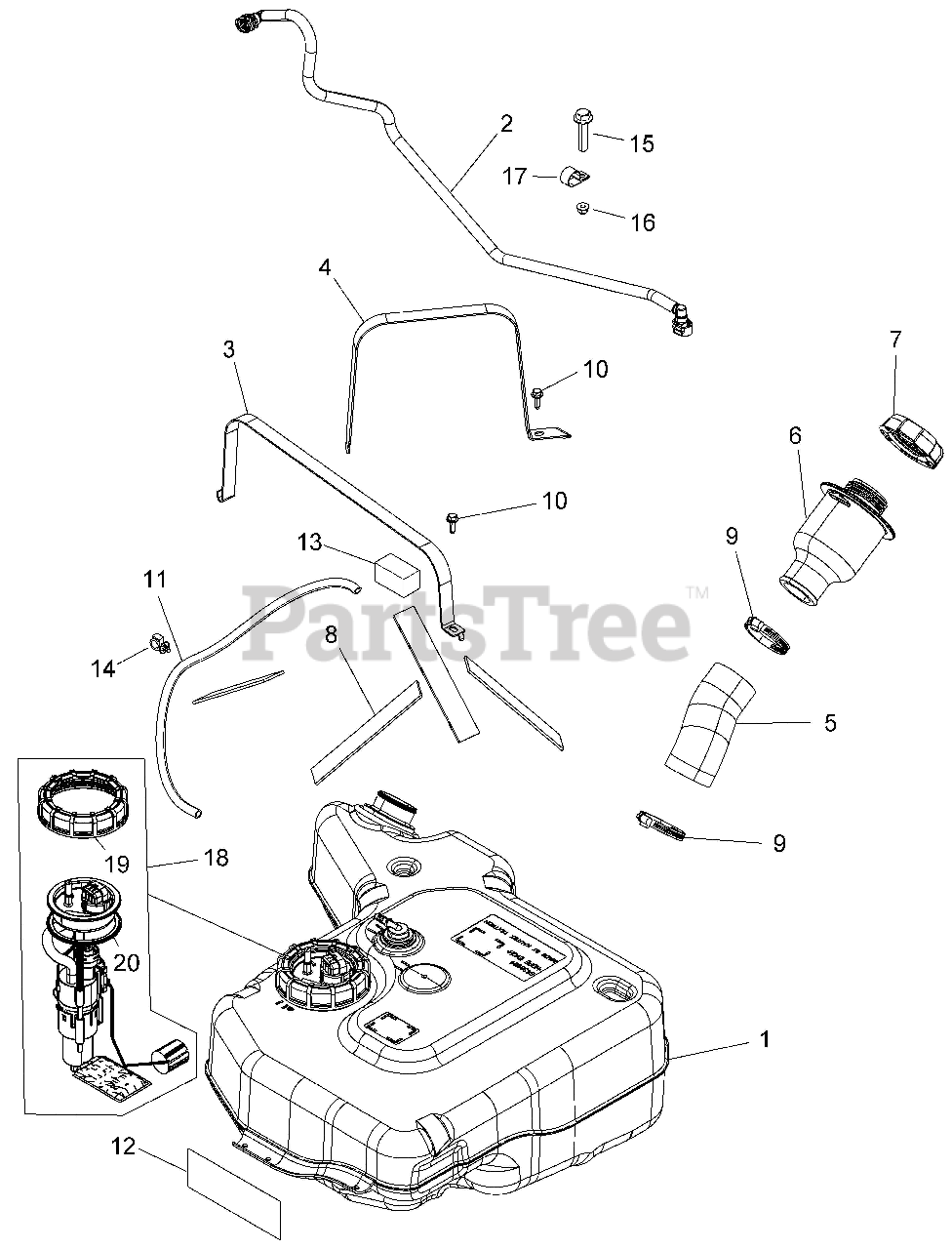

Fuel Tank Parts Diagram

  • Title
1.

Gravely 21900080

ASM-FUEL TANK

$

$

Not available

1.

Gravely 21900838

KIT, FUEL PUMP REPLACEMENT

$

$

Not available

2.

Gravely 21900839

ASM-FUEL LINE,RGR,570,FS

$

$

Not available

3.

Gravely 21900202

BRKT-TANK,STRAP,INSIDE,GALV

$

$

Not available

4.

Gravely 21900203

BRKT-TANK,STRAP,OUTSIDE,GALV

$

$

Not available

5.

Gravely 21900241

HOSE-FUEL FILL

$

$

Not available

6.

Gravely 21900082

ASM-FUEL INLET

$

$

Not available

7.

Gravely 21900263

CAP-GAS TANK

$

$

Not available

8.

Gravely 21900293

PAD, BATTERY

$

$

Not available

9.

Gravely 21900327

CLAMP,BAND,NARROW (10)

$

$

Not available

10.

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

11.

Gravely 21900582

LINE-VENT,5/16 ID 50CM

$

$

Not available

12.

Gravely 21900296

FOIL-FENDER JOINT,RH

$

$

Not available

13.

Gravely 21900297

FILTER-VENT LINE

$

$

Not available

14.

Gravely 21900510

CLIP,ROUTING,.472 B.D.,HINGED

$

$

Not available

15.

Gravely 21900394

BOLT-M6X1.0X20,HXHD,FLG,BLK

$

$

Not available

16.

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

17.

Gravely 21900510

CLIP,ROUTING,.472 B.D.,HINGED

$

$

Not available

18.

Gravely 21900838

KIT, FUEL PUMP REPLACEMENT

Note: [INCL. 19,20]

$

$

Not available

19.

Gravely 21901351

NUT, JAM

$

$

Not available

20.

$

$

Not available
