996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Brake Lines And Master Cylinder Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

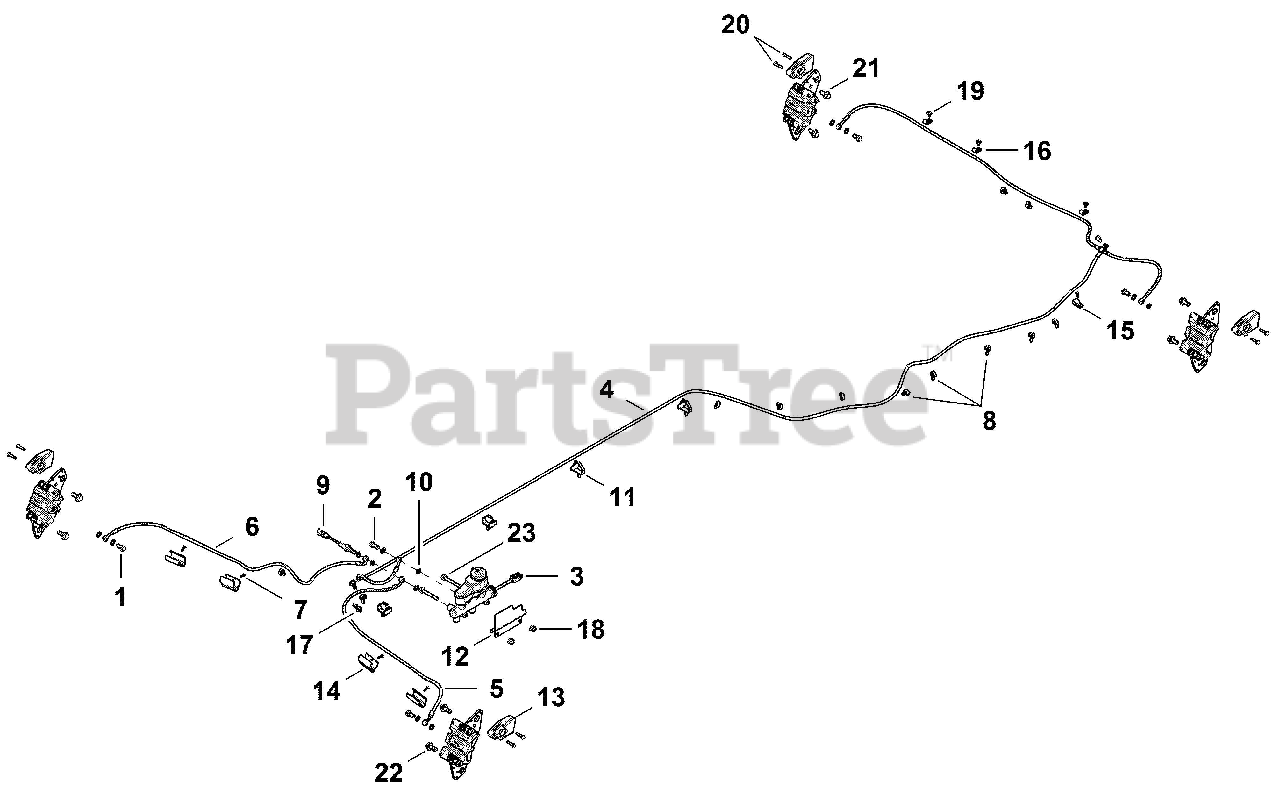

Brake Lines And Master Cylinder Parts Diagram

  • Title
1.

Gravely 21900051

BOLT-BANJO,10MMX1.00

$

$

Not available

2.

Gravely 21900053

BOLT-BANJO, 10MM X 1.25-6G

$

$

Not available

3.

Gravely 21900056

ASM-MASTER CYLINDER,UV,GS

$

$

Not available

4.

Gravely 21901386

LINE, BRAKE, 3 WAY

$

$

Not available

5.

Gravely 21900058

LINE-BRAKE,FRONT,LEFT,BRD

$

$

Not available

6.

Gravely 21900059

LINE-BRAKE,FRONT,RIGHT,BRD

$

$

Not available

7.

Gravely 21900495

POP RIVET(50)

$

$

Not available

$

$

Not available

9.

$

$

Not available

10.

Gravely 21900224

SEAL-STAT-O-3/8,70EP

$

$

Not available

11.

Gravely 21900509

CLIP-ROUTING

$

$

Not available

12.

Gravely 21900186

SHIELD-MASTER CYL

$

$

Not available

13.

Gravely 21900261

SCRAPER-BRAKE,FRONT

$

$

Not available

14.

Gravely 21900265

RETAINER-BRAKE LINE,1"

$

$

Not available

15.

Gravely 21900334

CLAMP, CABLE

$

$

Not available

16.

Gravely 21900337

CLAMP,HOSE

$

$

Not available

17.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

18.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

19.

Gravely 21900497

RIVET(50) *

$

$

Not available

20.

$

$

Not available

21.

Gravely 21900397

BOLT-M10X1.25X20,HXFLG-OLV D

$

$

Not available

22.

Gravely 21900406

BOLT-M10X1.25X25,HXFLG,W/PATCH

$

$

Not available

23.

Gravely 21900436

SCR-HXFL-M8X1.25X60 8.8 ZOD

$

$

Not available
