996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Crankcase Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

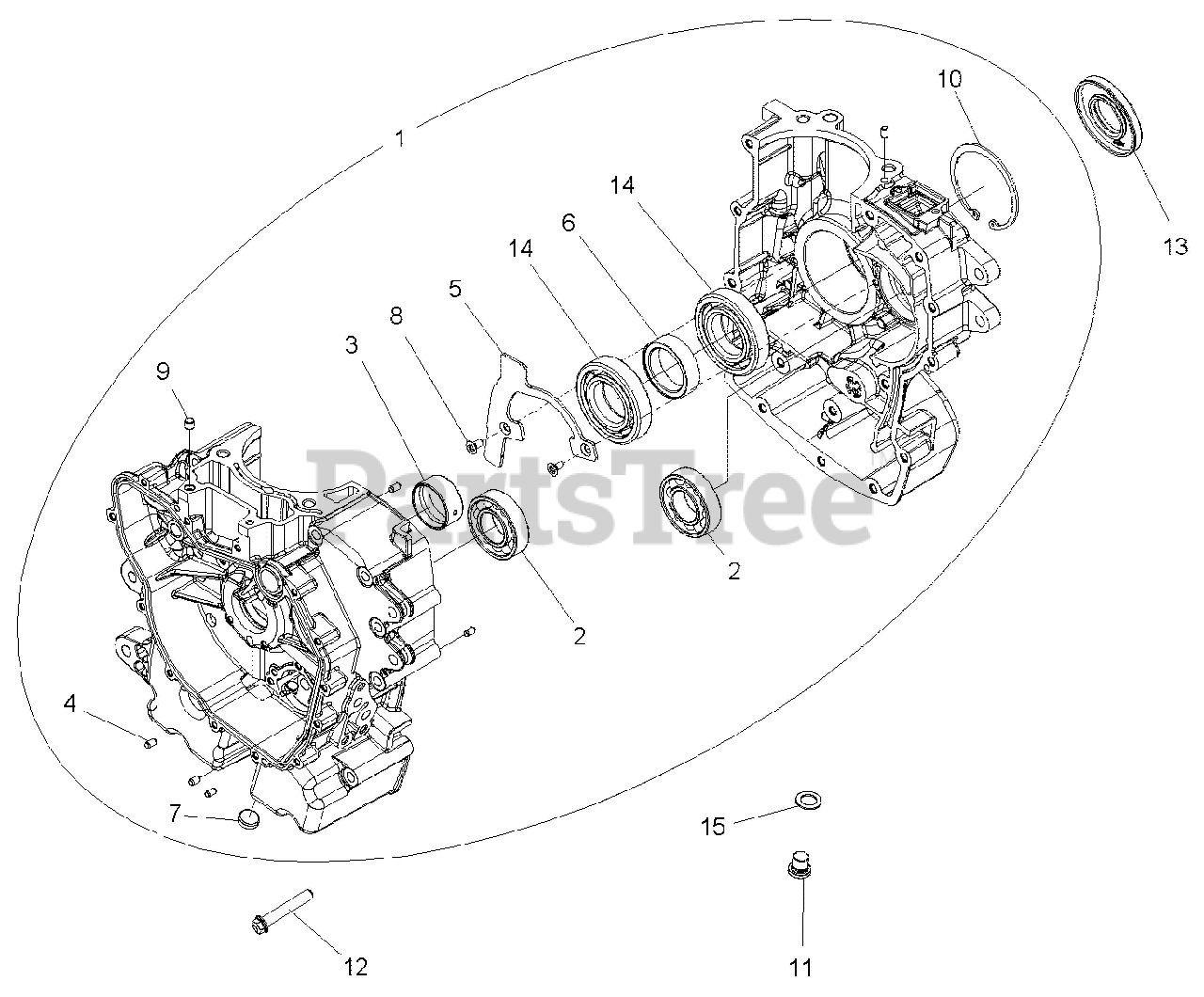

Crankcase Parts Diagram

  • Title

1.

Gravely 21900070

KIT-CRANKCASE 1204921

Note: [INCL. 1-10, 12, 14]

$

$

Not available

2.

Gravely 21900125

BEARING-BALL,30X62X16

$

$

Not available

3.

Gravely N/A

BEARING, MAIN

$

$

Currently unavailable

4.

Gravely 21900157

PIN-DOWEL,M6X10

$

$

Not available

5.

Gravely 21900195

PLATE-BEARING RETAINER

$

$

Not available

6.

Gravely 21900166

SPACER-BRG,MACH

$

$

Not available

7.

Gravely 21900314

PLUG,EXPANSION,19MM

$

$

Not available

8.

Gravely 21900380

SCREW

$

$

Not available

9.

Gravely 21900505

DWL-HOL,M8X10

$

$

Not available

10.

Gravely 21900516

RING-SNAP,80X2.5

$

$

Not available

11.

Gravely 21900317

PLUG-SOCKET,M12X1.5 DIN 908A

$

$

Not available

12.

Gravely 21900871

SCR-M8X1.25X90

$

$

Not available

13.

Gravely 21900133

SEAL-CRANKSHAFT

$

$

Not available

14.

Gravely 21900124

BEARING-BALL 40X80X18 DG NCAGE

$

$

Not available

15.

Gravely 21900294

WASHER-19X12X1.3-COPPER (10)

$

$

Not available
