996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 180101 - 189999) Fuel Tank Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

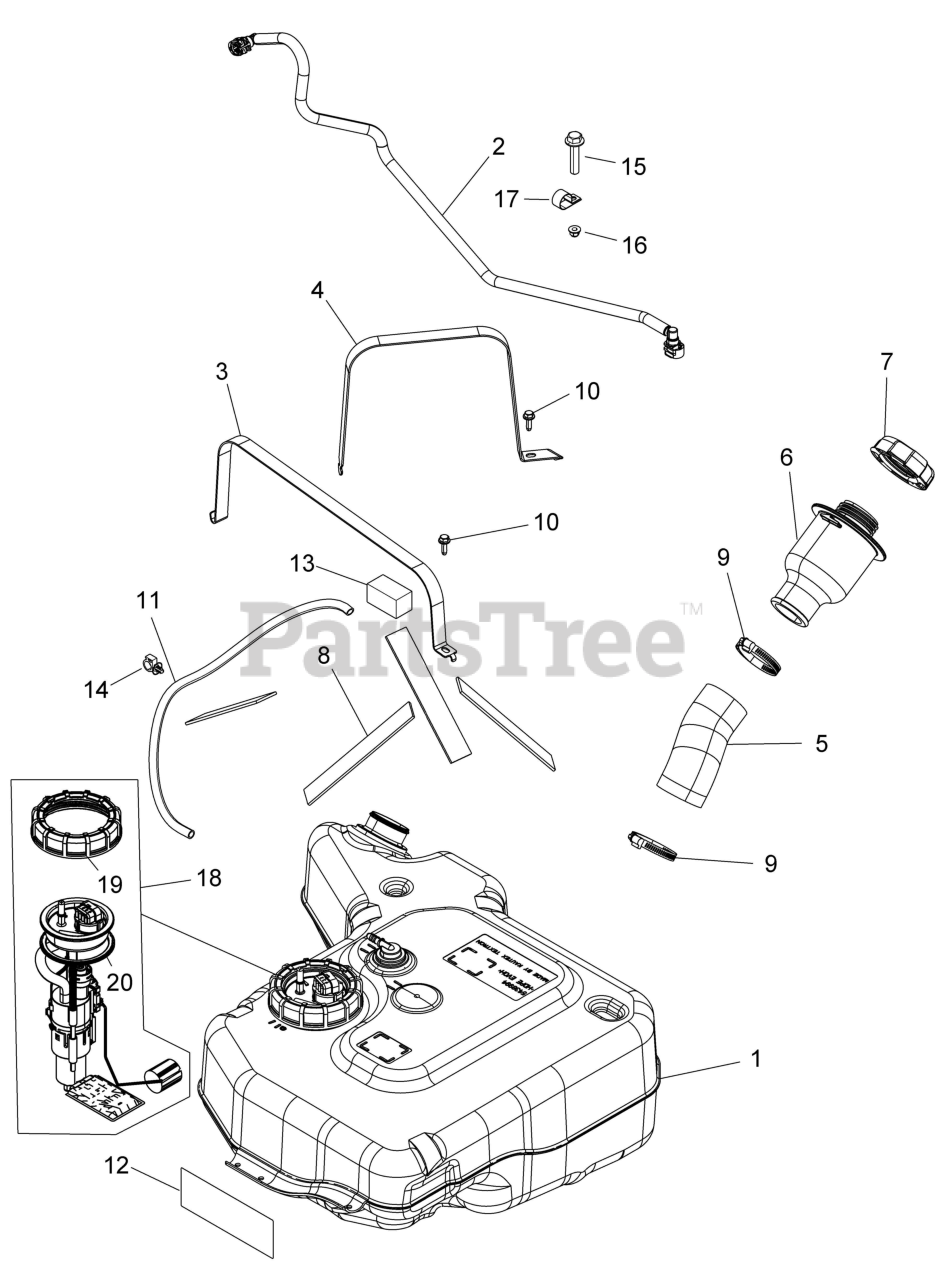

Fuel Tank Parts Diagram

  • Title
1

Gravely 21900080

ASM-FUEL TANK

Note: [INCL. 18-20]

$

$

Not available

2

Gravely 21900839

ASM-FUEL LINE,RGR,570,FS

$

$

Not available

3

Gravely 21900202

BRKT-TANK,STRAP,INSIDE,GALV

$

$

Not available

4

Gravely 21900203

BRKT-TANK,STRAP,OUTSIDE,GALV

$

$

Not available

5

Gravely 21900241

HOSE-FUEL FILL

$

$

Not available

6

Gravely 21900082

ASM-FUEL INLET

$

$

Not available

7

Gravely 21900263

CAP-GAS TANK

$

$

Not available

8

Gravely 21900293

PAD, BATTERY

$

$

Not available

9

Gravely 21900327

CLAMP,BAND,NARROW (10)

$

$

Not available

10

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

11

Gravely 21901894

FUEL LINE-50 CM

$

$

Not available

12

Gravely 21900296

FOIL-FENDER JOINT,RH

$

$

Not available

13

Gravely 21900297

FILTER-VENT LINE

$

$

Not available

14

Gravely 21900510

CLIP,ROUTING,.472 B.D.,HINGED

$

$

Not available

15

Gravely 21900394

BOLT-M6X1.0X20,HXHD,FLG,BLK

$

$

Not available

16

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

17

Gravely 21900510

CLIP,ROUTING,.472 B.D.,HINGED

$

$

Not available

18

Gravely 21901733

KIT-FUEL PUMP REPLACEMENT,RNGR

Note: [INCL. 19,20]

$

$

Not available

19

Gravely 21901351

NUT, JAM

$

$

Not available

20

$

$

Not available
