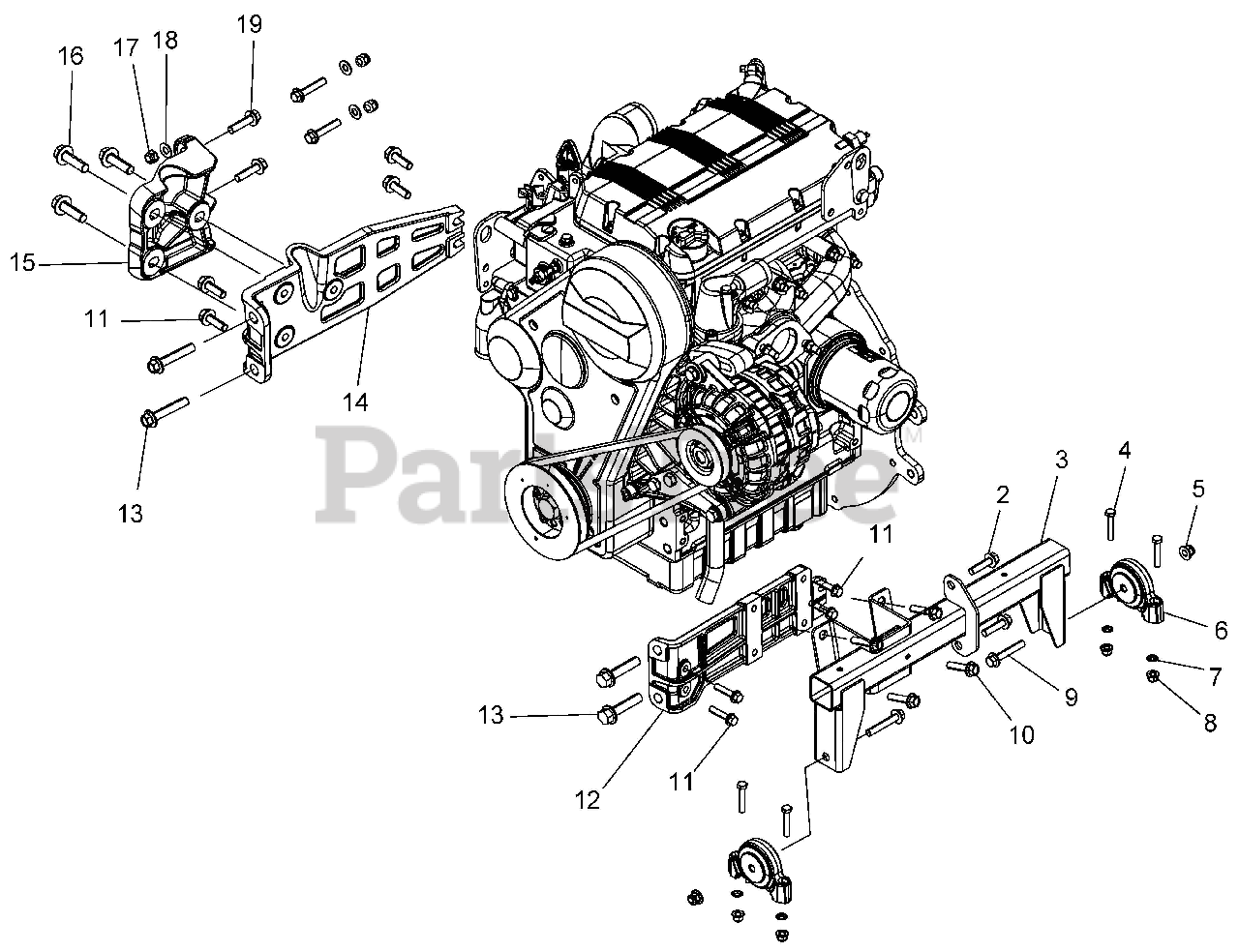

996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

Mounting Parts Diagram

  • Title

1

Gravely N/A

ASM., ENGINE, KDW1003T

Note: Contact Kohler for maintenance and/or repairs

$

$

Currently unavailable

2

Gravely 21900416

SCREW

$

$

Not available

3

Gravely 21901249

MOUNT, ENGINE

$

$

Not available

4

Gravely 21900419

SCREW

$

$

Not available

5

Gravely 21900465

NUT

$

$

Not available

6

Gravely 21900038

MOUNT, ISOLATOR, DRIVELINE

$

$

Not available

7

Gravely 21900460

NUT, PAL

$

$

Not available

8

Gravely 21900464

NUT

$

$

Not available

9

Gravely 21900399

BOLT

$

$

Not available

10

Gravely 21900416

SCREW

$

$

Not available

11

Gravely 21900392

BOLT

$

$

Not available

12

Gravely 21901232

COUPLER, L, ENGINE, FRONT

$

$

Not available

13

Gravely 21901241

SCREW

$

$

Not available

14

Gravely 21901230

COUPLER, ENGINE, GEARCASE

$

$

Not available

15

Gravely 21901231

COUPLER, L, ENGINE, GEARCASE

$

$

Not available

16

Gravely 21900450

SCREW

$

$

Not available

17

Gravely 21900470

NUT

$

$

Not available

18

Gravely 21900486

WASHER

$

$

Not available

19

Gravely 21900451

SCREW

$

$

Not available
