996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Primary Clutch Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

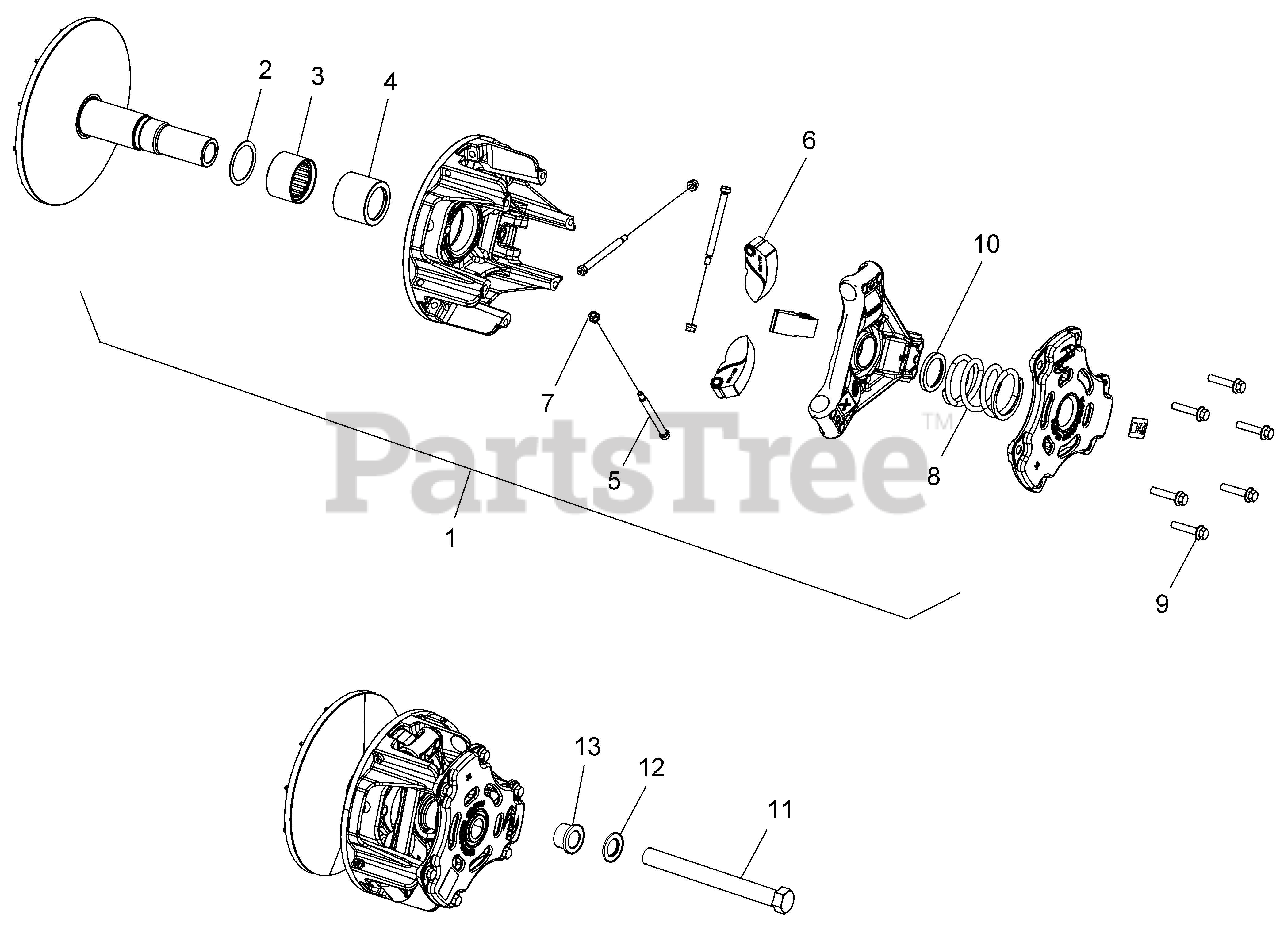

Primary Clutch Parts Diagram

  • Title

1

Gravely 21901407

ASM., DRIVE CLUTCH

Note: [INCL. 2-10]

$

$

Not available

2

Gravely 21901242

WASHER-THRUST

$

$

Not available

3

Gravely 21900926

SUBASSY-IDLER SLEEVE PRIMARY

$

$

Not available

4

Gravely 21901720

CAP, IDLER SLEEVE

$

$

Not available

5

Gravely 21901195

SCREW, SHOULDER HEX SKT .25 X

$

$

Not available

6

Gravely 21901218

WEIGHT,CLUTCH,PRIMARY 153G

$

$

Not available

7

Gravely 21901194

NUT, LOCK HEX #10-24 FLEXLOC

$

$

Not available

8

Gravely 21901235

SPRING-CLUTCH,75-105

$

$

Not available

9

Gravely 21901196

SCREW, HEX FLANGE HD 1/4 - 20

$

$

Not available

10

Gravely 21901208

COLLAR,PRIMARY SHIFT STOP

$

$

Not available

11

Gravely 21900429

SCR-M14X1.5X215, HX, 8.8

$

$

Not available

12

Gravely 21900483

WASHER

$

$

Not available

13

Gravely 21900154

WASHER,CLUTCH RETAINER

$

$

Not available
