996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Front Caliper Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

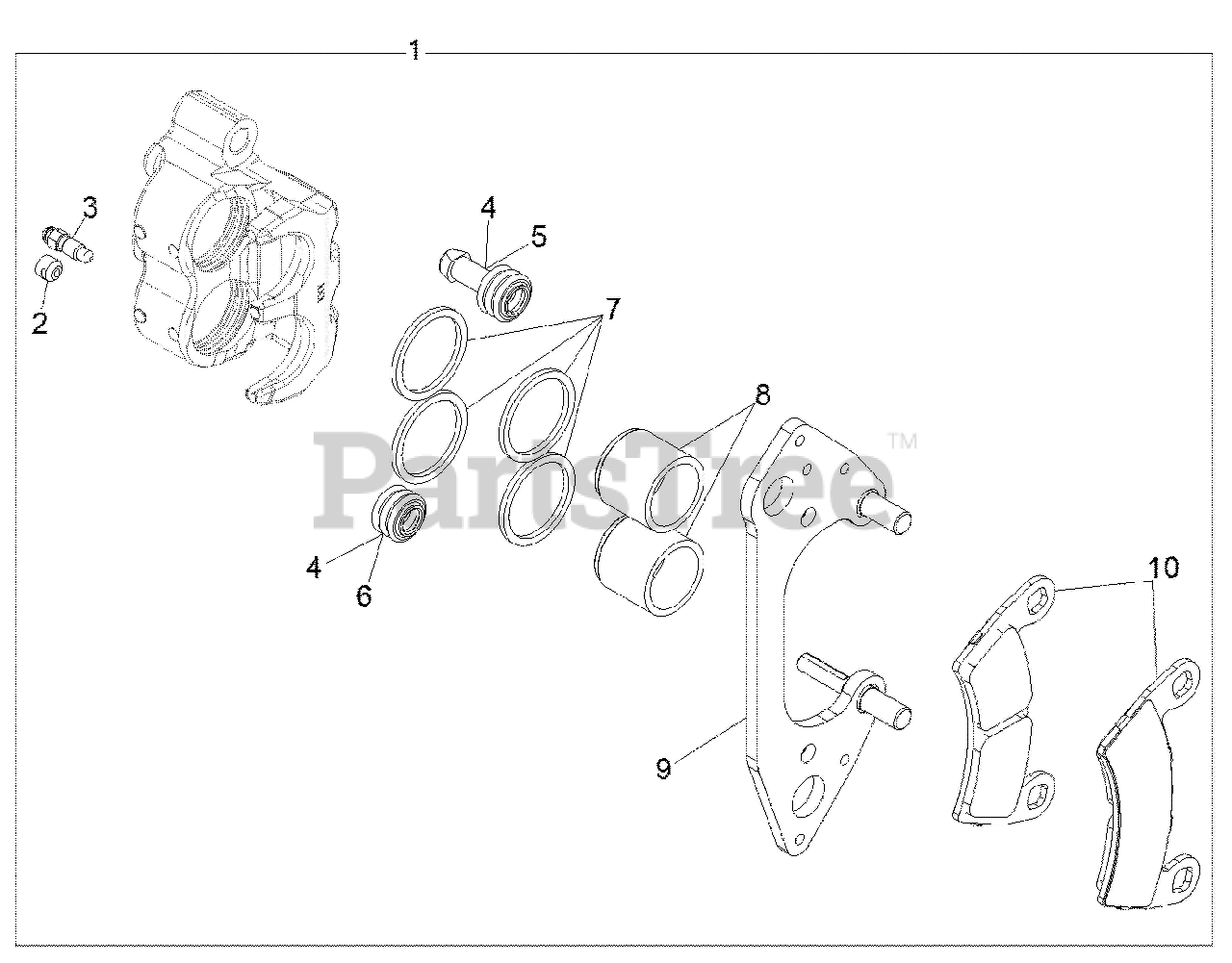

Front Caliper Parts Diagram

  • Title

1.

Gravely 21900065

ASM-BRK-CAL-L-DB1-3/8-GROOVED

Note: [INCL. ALL]

$

$

Not available

1.

Gravely 21900066

ASM-BRK-CAL-R-DB1-3/8-GROOVED

Note: [INCL. ALL]

$

$

Not available

2.

Gravely 21900408

SCR-M10X1.0X8,SOC SET-OD

$

$

Not available

3.

Gravely 21900345

SCR-M7X1.0,BLEEDER,OLIVE D

$

$

Not available

4.

Gravely 21900000

KIT,BOOT,FRONT BRAKE

Note: [INCL. 5,6]

$

$

Not available

5.

Gravely 21900219

BOOT-PIN BUSHING

$

$

Not available

6.

Gravely 21900220

BOOT-PIN SEAL

$

$

Not available

7.

Gravely 21900222

SEAL-CALIPER,INNER,1.375"

$

$

Not available

8.

Gravely 21900173

PISTON-BRAKE,1.375,AL,GROOVED

$

$

Not available

9.

Gravely 21901462

ASM., CALIPER, MOUNT, FRONT

$

$

Not available

10.

Gravely 21900618

KIT-ASM,PAD,BRAKE,DB,1.375

Note: [INCL. 2 PADS]

$

$

Not available
