996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Main Gearcase Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

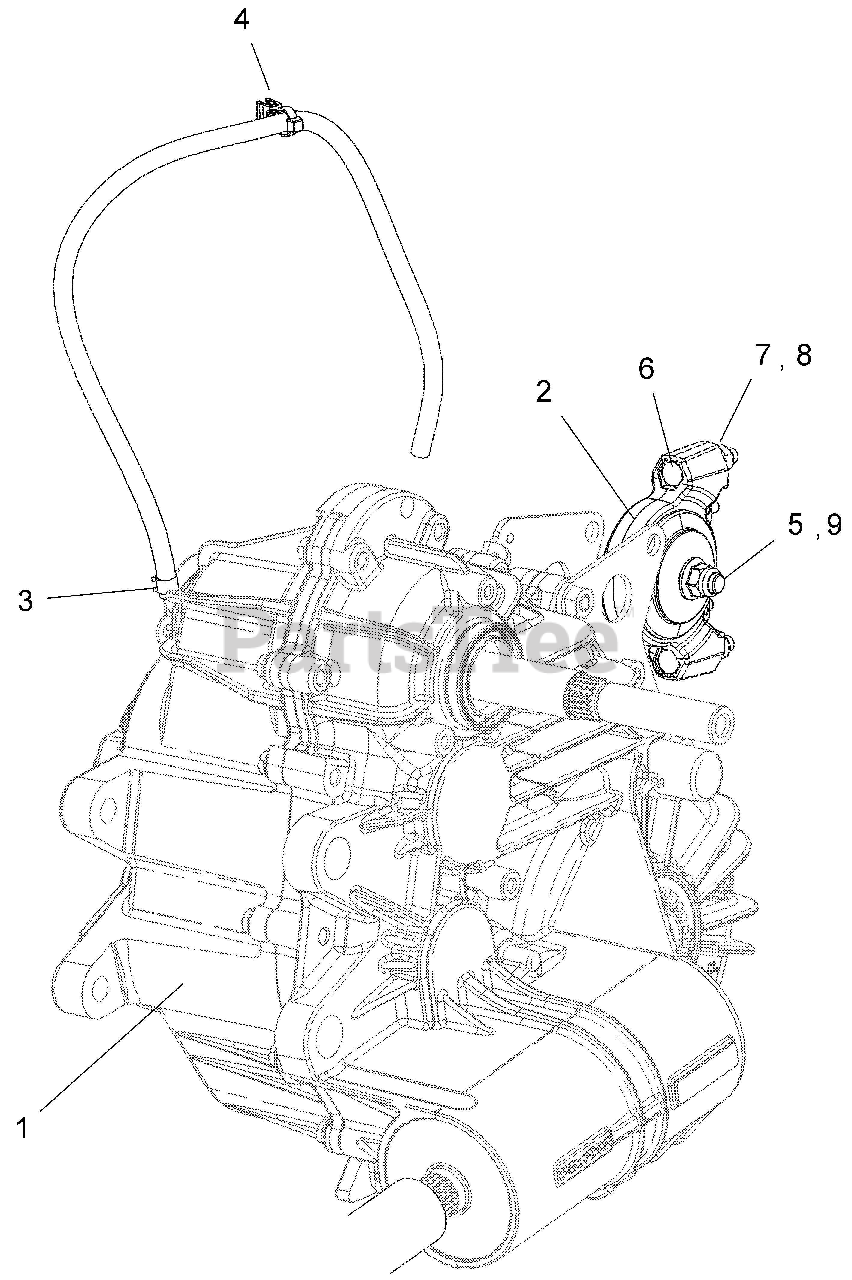

Main Gearcase Mounting Parts Diagram

  • Title

1.

Gravely 21901734

ASM., MAIN GEARCASE 570

$

$

Not available

2.

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

3.

Gravely 21900326

CLAMP,HOSE(10)

$

$

Not available

4.

Gravely 21900352

STRAP-CABLE TIE W/EDGE CLIP

$

$

Not available

5.

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

6.

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

7.

Gravely 21900460

PALNUT

$

$

Not available

8.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

9.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
