996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 170101 - 179999) Throttle Pedal/Cable Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

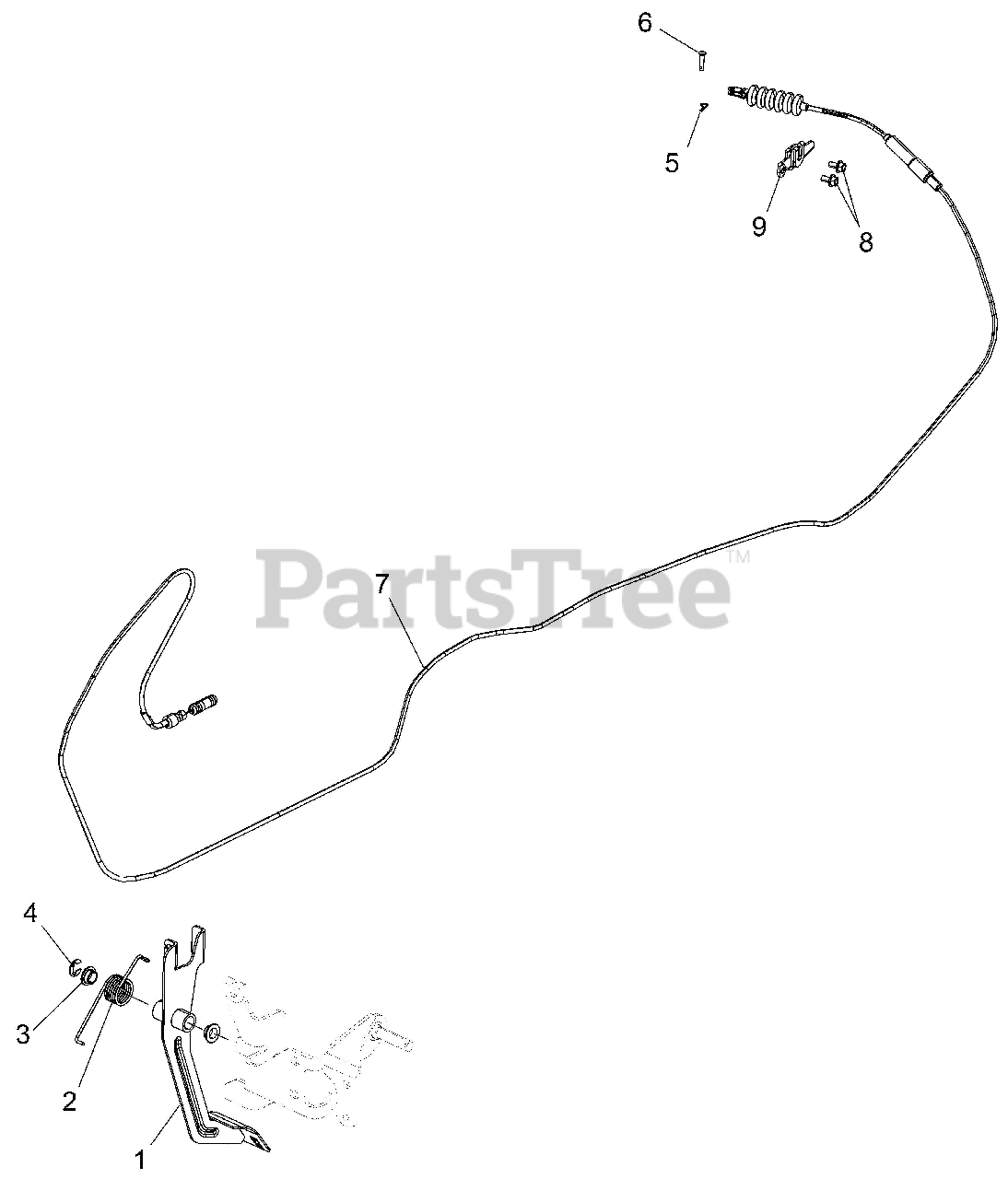

Throttle Pedal/Cable Parts Diagram

  • Title

1

Gravely 21901248

WELD-THROTTLE PEDAL,BLK

$

$

Not available

2

Gravely 21900309

SPRING-ACCELERATOR,HEAVY

$

$

Not available

3

Gravely 21900268

BUSHING-PEDAL PIVOT

$

$

Not available

4

Gravely 21900518

E RING

$

$

Not available

5

Gravely 21901244

HAIRPIN-COTTER 3/16-1/4

$

$

Not available

6

Gravely 21901243

PIN,CLEVIS

$

$

Not available

7

Gravely 21901239

CABLE-THROTTLE,DSL

$

$

Not available

8

Gravely 21900381

SCREW

$

$

Not available

9

Gravely 21901223

BRKT-THROTTLE,ENGINE

$

$

Not available
