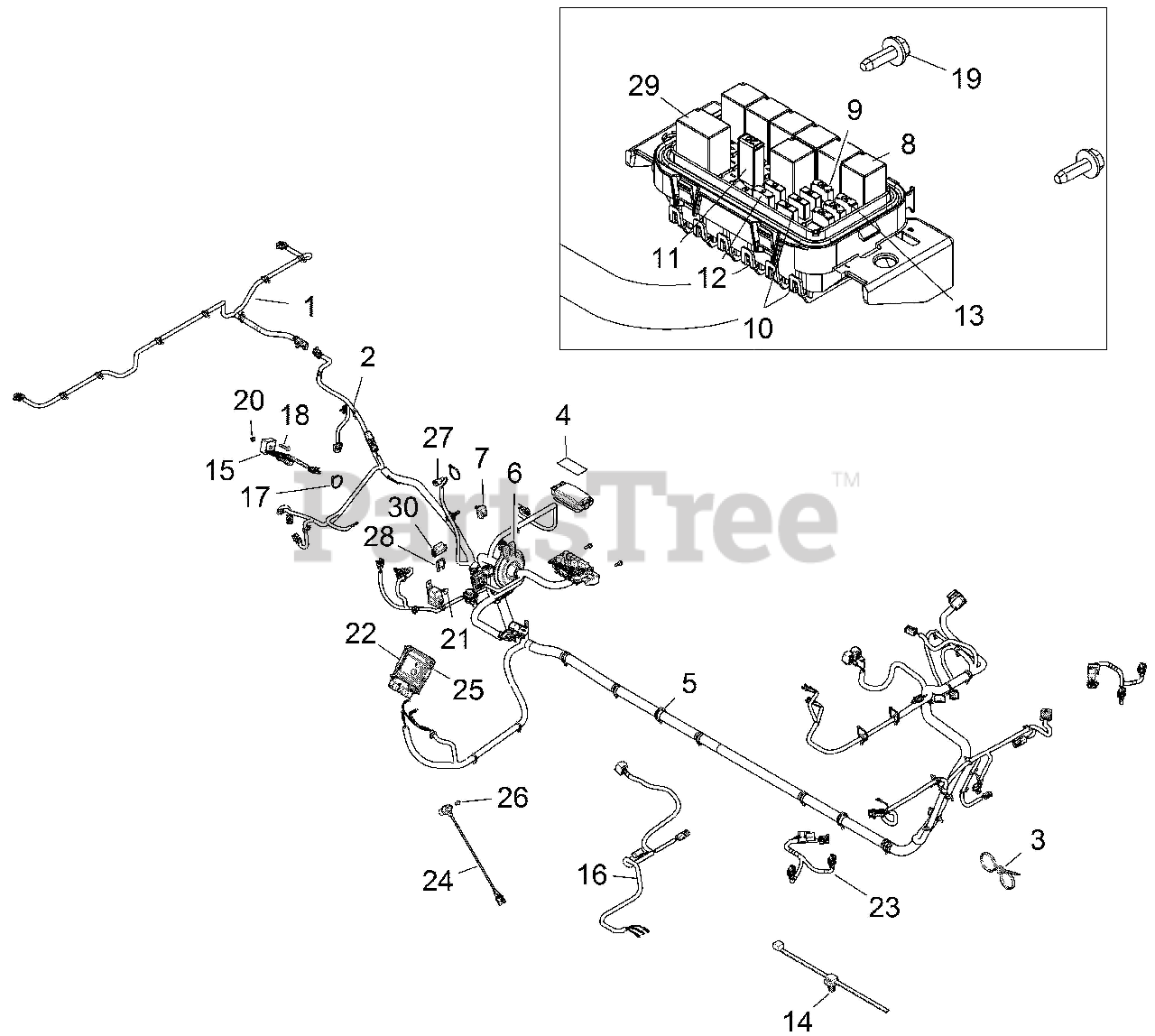

996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 150101 - 159999) Electrical Harness Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

Electrical Harness Parts Diagram

  • Title

1

Gravely 21900887

HARNESS-BOX-ARIENS SPLY

$

$

Not available

2

Gravely 21901408

HARNESS, CHASSIS

Note: [W/REF. 3-13,27-30]

$

$

Not available

2

Gravely 21901496

KIT, FUSIBLE LINK, 2MM

$

$

Not available

2

Gravely 21901497

KIT, FUSIBLE LINK, 1MM

$

$

Not available

2

Gravely 21901498

KIT, FUSIBLE LINK, .8MM

$

$

Not available

3

Gravely 21901419

CABLE TIE

$

$

Not available

4

Gravely 21901430

DECAL, FUSE BLOCK

$

$

Not available

5

Gravely 21900348

CLIP-ROUTING

$

$

Not available

6

Gravely 21900809

GROMMET-CHASSIS HARNESS

$

$

Not available

7

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

9

Gravely 21900826

FUSE,PARK,20 AMP,(10)

$

$

Not available

10

Gravely 21900932

FUSE, MINI BLADE, 15 AMP

$

$

Not available

11

Gravely 21900679

BREAKER-CIRCUIT,20 AMP

$

$

Not available

12

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

13

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

14

Gravely 21900348

CLIP-ROUTING

$

$

Not available

15

Gravely 21900143

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

16

Gravely 21900934

HARNESS-BOX,LIFT

$

$

Not available

17

Gravely 21900324

CABLE TIE (10)

$

$

Not available

18

Gravely 21900402

BOLT-M6X1.0X35,HXFLG/SH-OLV D

$

$

Not available

19

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

20

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

21

Gravely 21901422

CLIP, PLASTIC DART, NYLON

$

$

Not available

22

Gravely 21900144

SERVICE ECU, ALL MY11 800 DOM

$

$

Not available

23

Gravely 21900888

HARNESS-HEADLIGHT,ARIENS

$

$

Not available

24

Gravely 21900073

SENSOR-CRANK POSITION

$

$

Not available

25

Gravely 21900418

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

$

$

Not available

26

Gravely 21901330

SCREW

$

$

Not available

27

Gravely 21901688

BOOT, OIL PRESSURE SWITCH

$

$

Not available

28

Gravely 21901411

TVS, 30VOLT

$

$

Not available

29

Gravely 21901212

RELAY-SPDT,SERIES 301,SEALED

$

$

Not available

30

Gravely 21901423

CLIP, X-MAS-TREE

$

$

Not available
