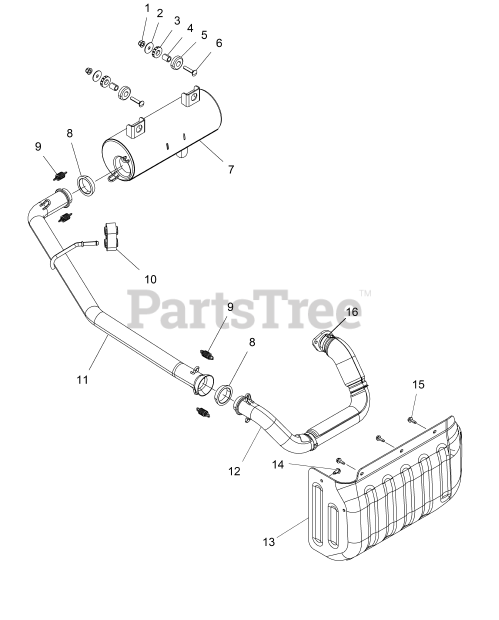

996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 150101 - 159999) Engine Exhaust Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

Engine Exhaust Parts Diagram

  • Title

1

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

Note: 2

$

$

Not available

2

Gravely 21900476

WASHER

Note: 2

$

$

Not available

3

Gravely 21901316

WASHER, SILENCER MOUNT

Note: 2

$

$

Not available

4

Gravely 21900151

BUSHING

Note: 2

$

$

Not available

5

Gravely 21900247

DAMPER-VIBRATION

Note: 2

$

$

Not available

6

Gravely 21900437

SCR-CAR M8X1.25 40 8.8 ZOD

Note: 2

$

$

Not available

7

Gravely 21900923

ASM., SILENCER

Note: 1

$

$

Currently unavailable

8

Gravely 21900135

SEAL-EXHAUST, SOCKET

Note: 2

$

$

Not available

9

Gravely 21900308

SPRING

Note: 4

$

$

Not available

10

Gravely 21900856

MOUNT-ISOLATOR

Note: 1

$

$

Not available

11

Gravely 21901406

HEADPIPE, REAR, DSL

Note: 1

$

$

Currently unavailable

12

Gravely 21900922

ASM., HEADPIPE, DSL

Note: 1

$

$

Currently unavailable

12

Gravely 21900341

CLAMP, HEAT SHIELD, EXHAUST

Note: 1

$

$

Not available

13

Gravely 21900300

SHIELD-HEAT,FOIL,BOTTOM

Note: 1

$

$

Not available

14

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

Note: 2

$

$

Not available

15

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

Note: 2

$

$

Not available

16

Gravely 21900341

CLAMP, HEAT SHIELD, EXHAUST

Note: 3

$

$

Not available
