996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 160100 - 170100) Frame Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

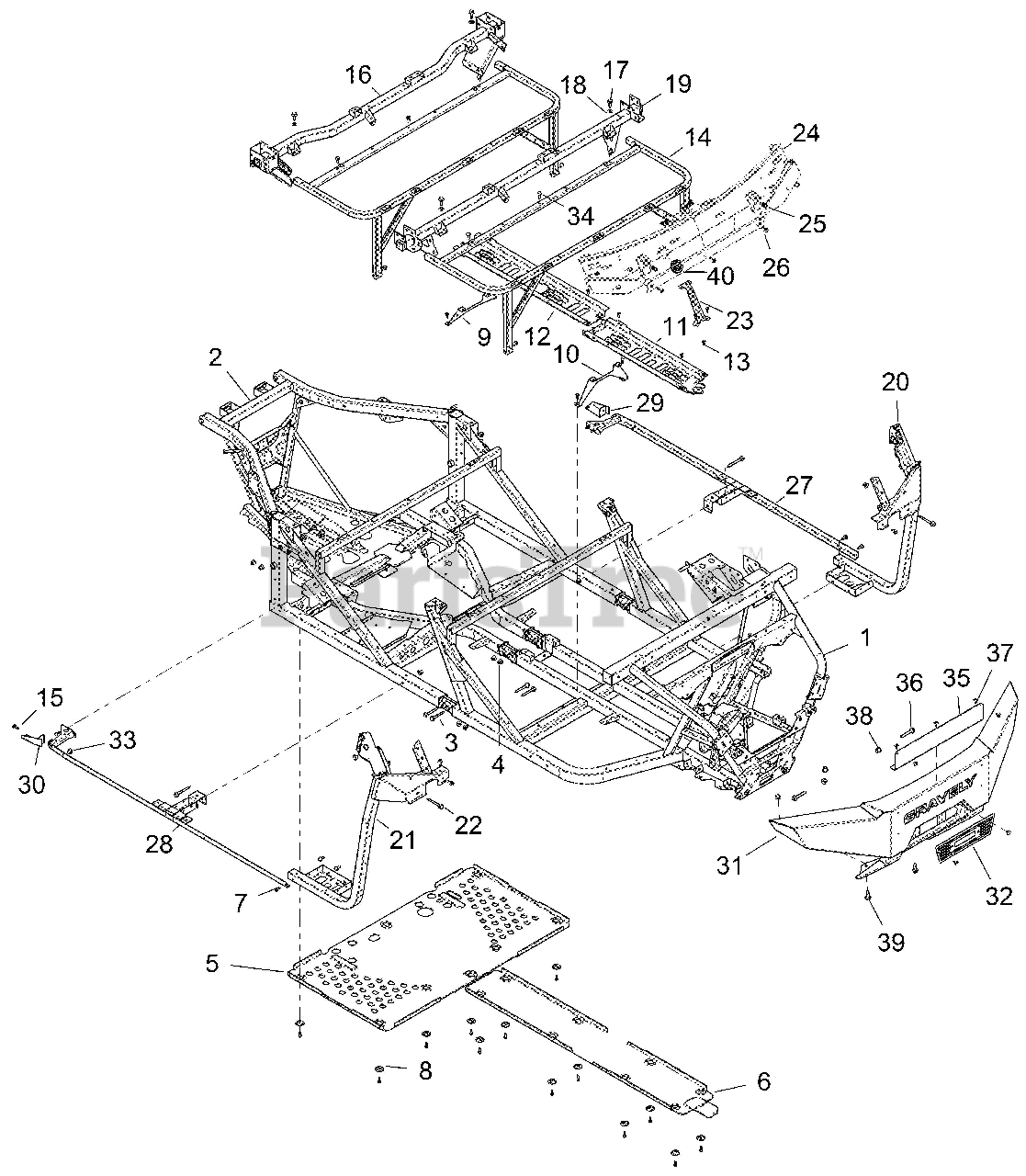

Frame Parts Diagram

  • Title
1.

Gravely 21901392

FRAME, MAIN, FRONT, MATTE BLK

$

$

Not available

2.

Gravely 21901395

FRAME, REAR, MATTE BLACK

$

$

Not available

3.

Gravely 21900398

BOLT-M10X1.25X70,HXFLG-OLIVE D

$

$

Not available

4.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

5.

Gravely 21900565

PLATE-SKID,REAR,BLK

$

$

Not available

6.

Gravely 21900566

PLATE-SKID,FRONT,BLK

$

$

Not available

7.

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

8.

Gravely 21900485

WASHER SKID PLATE

$

$

Not available

9.

Gravely 21900549

BRKT-ROUTING TRAY,BLK

$

$

Not available

10.

Gravely 21900550

BRKT-ROUTING TRAY CTR,BLK

$

$

Not available

11.

Gravely 21900573

TRAY-ROUTING,BLK

$

$

Not available

12.

Gravely 21900577

TRAY-ROUTING,REAR,BLK

$

$

Not available

13.

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

14.

Gravely 21900534

WELD-CAB/SEAT BASE,BLK

$

$

Not available

15.

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

16.

Gravely 21900831

WELD-CAB SUPPORT,REAR,BLK

$

$

Not available

17.

Gravely 21900415

SCR-HXFL-M10X1.25X30 8.8 ZOD

$

$

Not available

18.

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

19.

Gravely 21901394

SUPPORT, CAB, BLACK

$

$

Not available

20.

Gravely 21900829

WELD-FLOOR SUPPORT,LH,BLK

$

$

Not available

21.

Gravely 21900830

WELD-FLOOR SUPPORT,RH,BLK

$

$

Not available

22.

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

23.

Gravely 21900900

BRKT-PLATE,CTR,PIN MT,TTN

$

$

Not available

24.

Gravely 21901391

PLATE,WINDSHIELD MOUNT,LOW BLK

$

$

Not available

25.

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

26.

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

27.

Gravely 21900532

WELD-ROCKER,LH,BLK

$

$

Not available

28.

Gravely 21900533

WELD-ROCKER,RH,BLK

$

$

Not available

29.

Gravely 21901305

BRACKET,SUPPORT,ROCKER,LH BLCK

$

$

Not available

30.

Gravely 21901307

BRACKET,SUPPORT,ROCKER,RH BLCK

$

$

Not available

31.

Gravely 21900878

WELD-BUMPER,FRONT,ARIENS,M BLK

$

$

Not available

32.

Gravely 21901467

SCREEN-BUMPER,BLK

$

$

Not available

33.

Gravely 21900631

NUT-M8X1.25,HXFLG,NYLON INS

$

$

Not available

34.

$

$

Not available

35.

Gravely 21901466

PLATE,GRAVELY RED

$

$

Not available

36.

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

37.

Gravely 21900409

SCR-M6X1X16 TR/TX-M

$

$

Not available

38.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

39.

Gravely 21900415

SCR-HXFL-M10X1.25X30 8.8 ZOD

$

$

Not available

40.

Gravely 21901465

GROMMET-ELEC,CAB,SLIT

$

$

Not available
