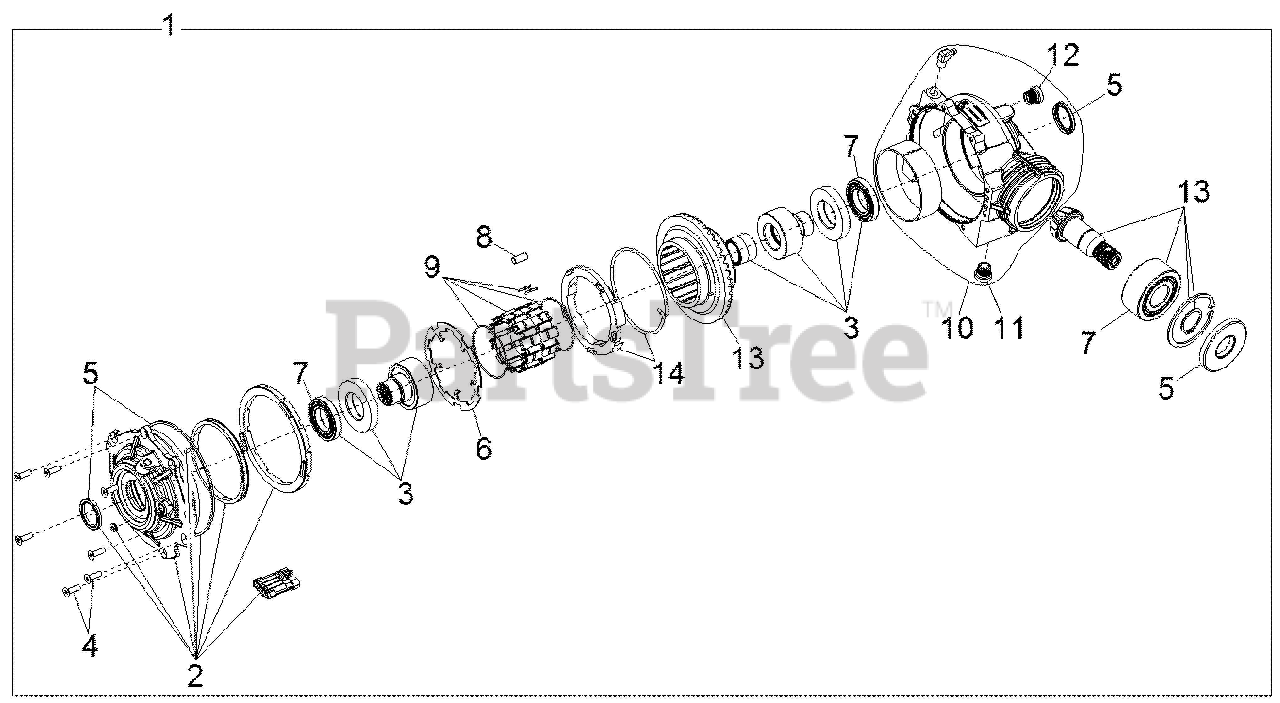

996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 160100 - 170100) Front Gearcase Internals Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

Front Gearcase Internals Parts Diagram

  • Title

1.

Gravely 21900927

ASM-GEARCASE,FRONT 12 POCKET

Note: [INCL. 2-13]

$

$

Not available

2.

Gravely 21900771

ASM-COVER,OUTPUT

Note: [INCL. O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASM., BACKLASH SPACER, 4WD COIL, GROMMET, HEAT SHRINK TUBING]

$

$

Not available

3.

Gravely 21900673

KIT-HUB,ASM

Note: [INCL. BUSHING, HUB SUB. ASM., NYLON SPACER]

$

$

Not available

4.

Gravely 21900787

KIT-FASTENER

Note: [INCL. ALL FASTENERS]

$

$

Not available

5.

Gravely 21900645

KIT-SEAL REPAIR

Note: [INCL. ALL SEALS]

$

$

Not available

6.

Gravely 21901203

PLATE-4WD ARMATURE

$

$

Not available

7.

Gravely 21900715

BEARING-PINION,5306

Note: [INCL. ALL BEARINGS]

$

$

Not available

8.

Note: [INCL. COMPLETE SET OF ROLLER]

$

$

Not available

9.

Gravely 21901204

K-CLUTCH ROLLS

Note: [INCL. ROLL CAGE, SPRING WIRE FOR H-CLIP]

$

$

Not available

10.

Gravely 21900821

KIT-GEARCASE ASM

Note: [INCL. HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG, DRAIN PLUG]

$

$

Not available

11.

Gravely 21900653

DRAIN PLUG(6203-95-010)

$

$

Not available

12.

Gravely 21900648

FILL PLUG(1300-04-001-T)

$

$

Not available

13.

Gravely 21901468

K-GEAR HOUSING & PINION

Note: [INCL. RING GEAR ASM., PINION, BEARING, INTERNAL RING, SHAFT RING]

$

$

Not available

14.

Gravely 21901207

K-TORSION SPRING & RETAINER

Note: [INCL. TORSION SPRING, SPRINT RETAINER ASM.]

$

$

Not available
