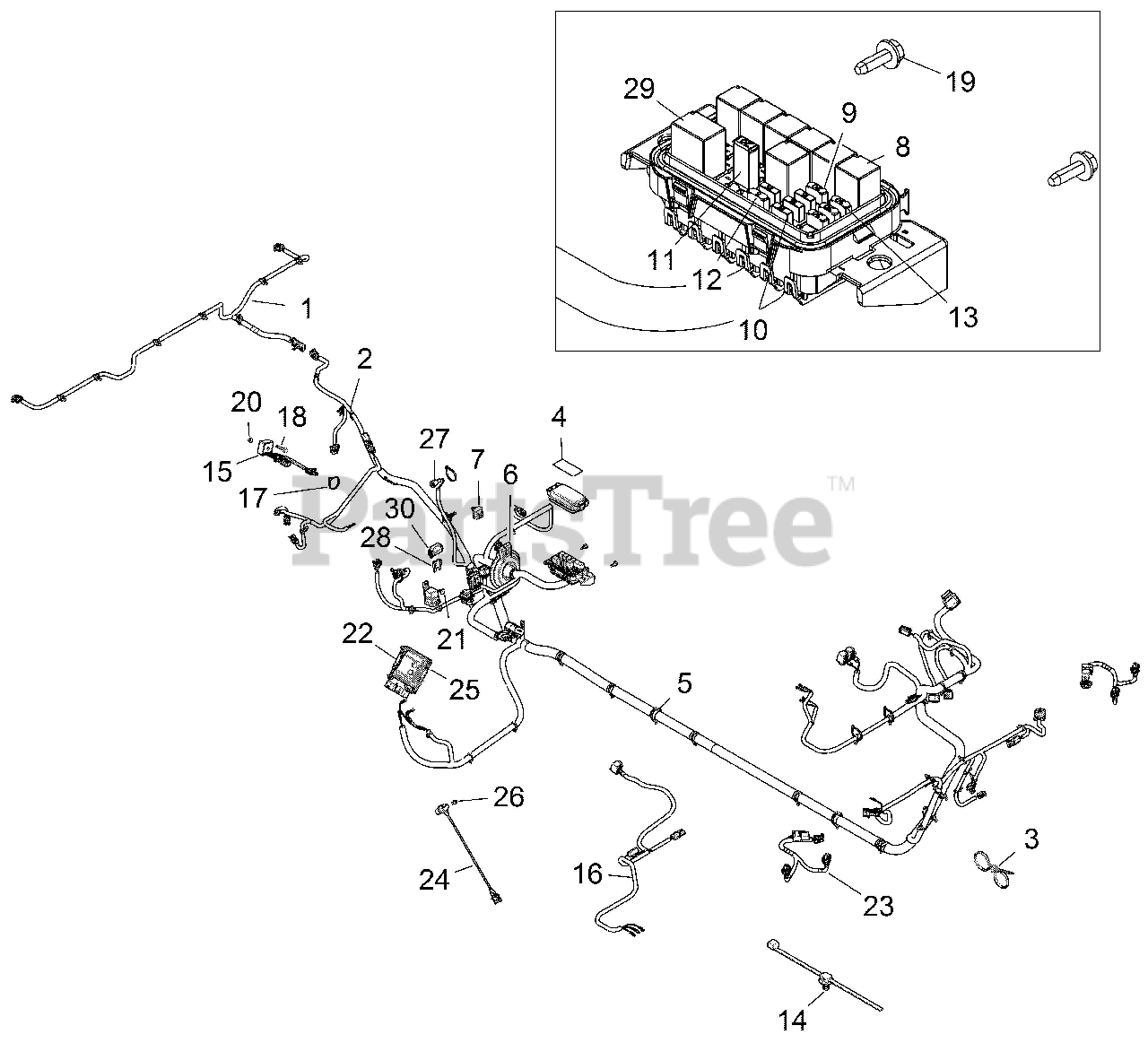

996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 160100 - 170100) Wire Harness Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

Wire Harness Parts Diagram

  • Title

1.

Gravely 21900887

HARNESS-BOX-ARIENS SPLY

$

$

Not available

2.

Gravely 21901408

HARNESS, CHASSIS

Note: [W/REF. 3-13,27-30]

$

$

Not available

2.

Gravely 21901496

KIT, FUSIBLE LINK, 2MM

$

$

Not available

2.

Gravely 21901497

KIT, FUSIBLE LINK, 1MM

$

$

Not available

2.

Gravely 21901498

KIT, FUSIBLE LINK, .8MM

$

$

Not available

3.

Gravely 21900324

CABLE TIE (10)

$

$

Not available

4.

Gravely 21901430

DECAL, FUSE BLOCK

$

$

Not available

5.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

6.

Gravely 21900809

GROMMET-CHASSIS HARNESS

$

$

Not available

7.

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8.

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

9.

Gravely 21900826

FUSE,PARK,20 AMP,(10)

$

$

Not available

10.

Gravely 21901499

FUSE, MINI BLADE, 15 AMP

$

$

Not available

11.

Gravely 21900679

BREAKER-CIRCUIT,20 AMP

$

$

Not available

12.

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

13.

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

14.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

15.

Gravely 21900143

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

16.

Gravely 21900934

HARNESS-BOX,LIFT

$

$

Not available

17.

Gravely 21900324

CABLE TIE (10)

$

$

Not available

18.

Gravely 21900402

BOLT-M6X1.0X35,HXFLG/SH-OLV D

$

$

Not available

19.

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

20.

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

21.

Gravely 21901422

CLIP, PLASTIC DART, NYLON

$

$

Not available

22.

Gravely 21900144

SERVICE ECU, ALL MY11 800 DOM

$

$

Not available

23.

Gravely 21900888

HARNESS-HEADLIGHT,ARIENS

$

$

Not available

24.

Gravely 21900073

SENSOR-CRANK POSITION

$

$

Not available

25.

Gravely 21900418

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

$

$

Not available

26.

Gravely 21901687

SCREW

$

$

Not available

27.

Gravely 21901688

BOOT, OIL PRESSURE SWITCH

$

$

Not available

28.

Gravely 21901411

TVS, 30VOLT

$

$

Not available

29.

Gravely 21901212

RELAY-SPDT,SERIES 301,SEALED

$

$

Not available

30.

Gravely 21901423

CLIP, X-MAS-TREE

$

$

Not available
