996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 170101 - 179999) Prop Shaft Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

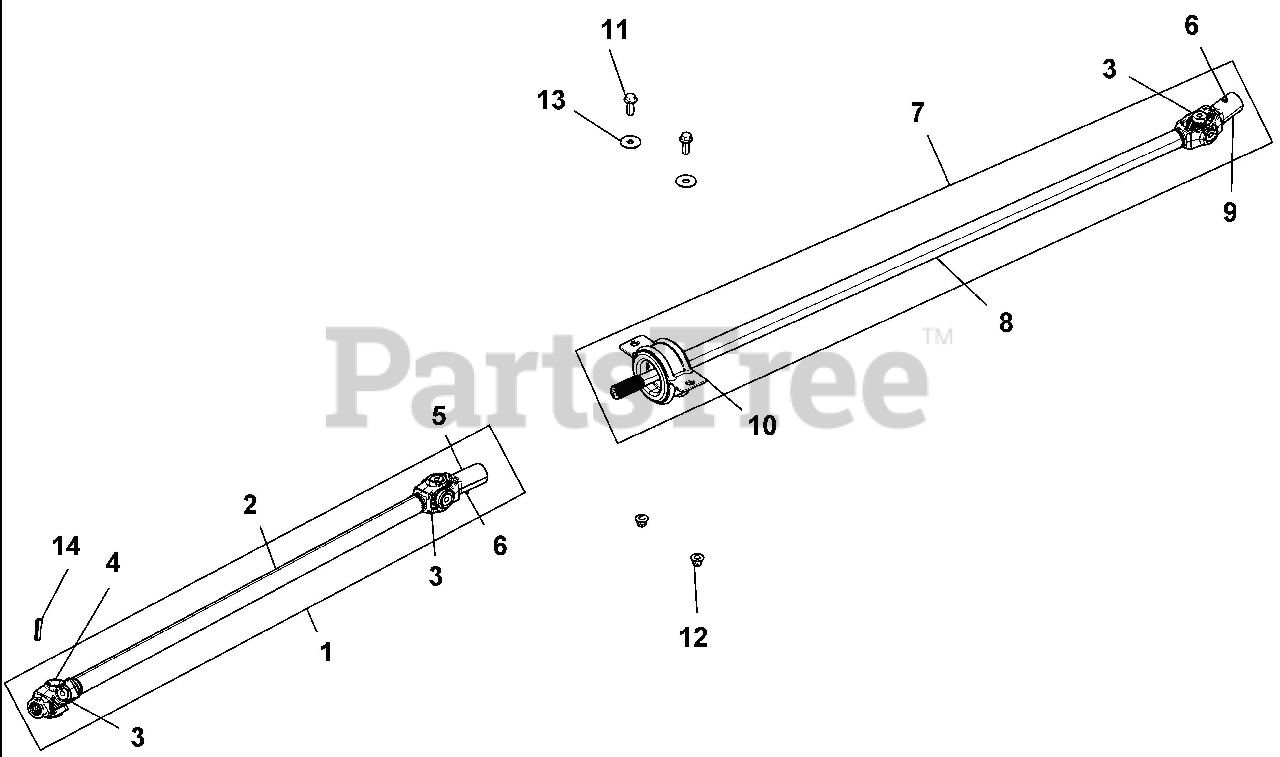

Prop Shaft Parts Diagram

  • Title

1.

Gravely 21900041

ASM-PROPSHAFT,FRONT

$

$

Not available

2.

Gravely 21900043

WELD-PROPSHAFT,FRONT

$

$

Not available

3.

Gravely 21900120

U-JOINT-1000 SERIES

$

$

Not available

4.

Gravely 21900122

YOKE-PIN

$

$

Not available

5.

Gravely 21901410

YOKE, SLIP, INDEXED

$

$

Not available

6.

Gravely 21900329

FITTING, LUBRICATION

$

$

Not available

7.

Gravely 21900042

ASM-PROPSHAFT,REAR

$

$

Not available

8.

Gravely 21900044

WELD-PROPSHAFT,REAR

$

$

Not available

9.

Gravely 21900121

YOKE-SLIP

$

$

Not available

10.

Gravely 21900132

ASM-BEARING,FLEX

$

$

Not available

11.

Gravely 21900415

SCR-HXFL-M10X1.25X30 8.8 ZOD

$

$

Not available

12.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

13.

Gravely 21900480

WASHER, FLAT

$

$

Not available

14.

Gravely 21900504

PIN,SPRING(10)

$

$

Not available
