996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 180101 - 189999) Seat And Seat Belts Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

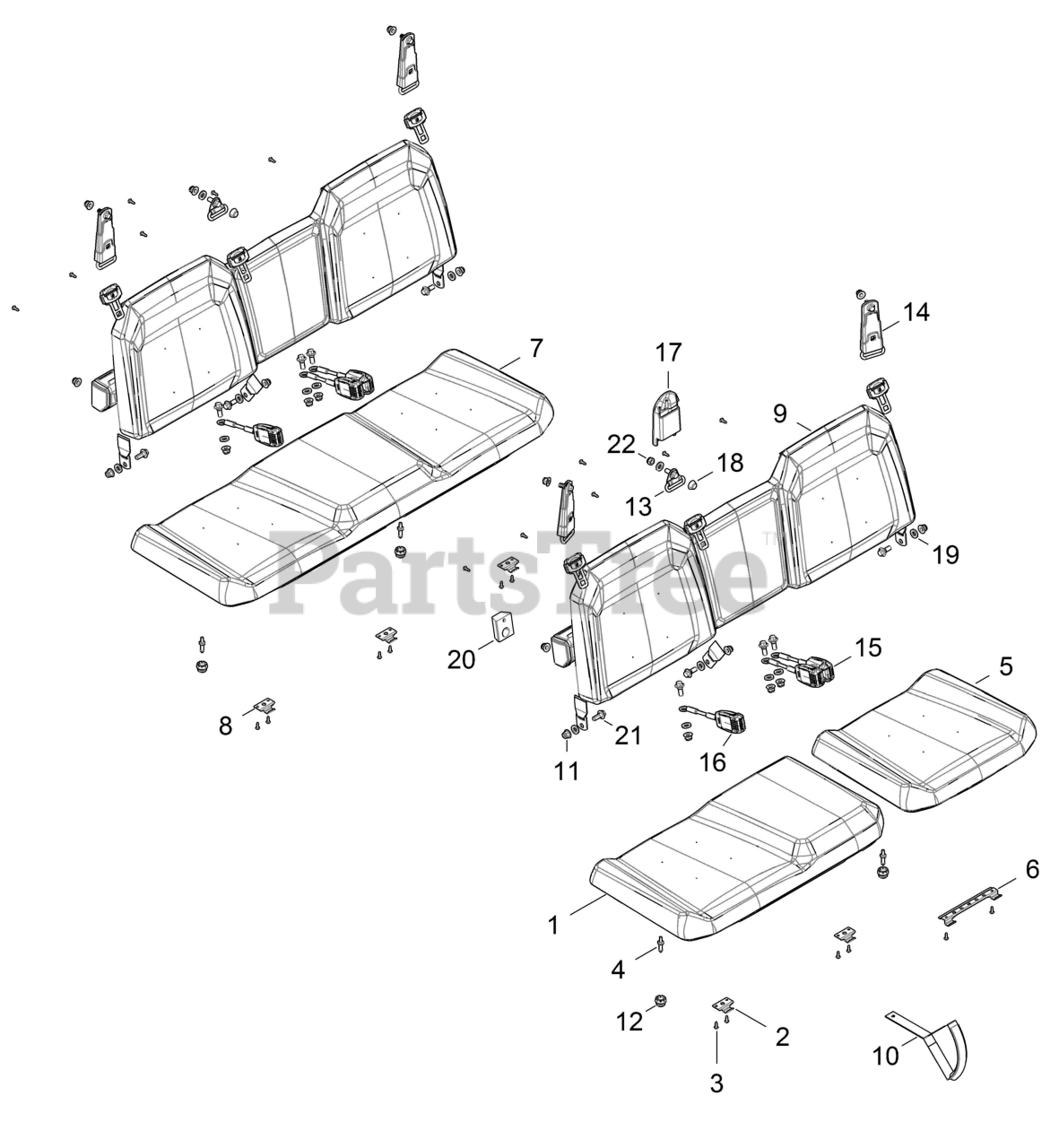

Seat And Seat Belts Parts Diagram

  • Title

1

Gravely 21900890

ASM-SEAT,BTM,60,GRAVELY GRAY

Note: [INCL. QTY 2 OF 2, QTY 4 OF3, QTY 1 OF 4]

$

$

Not available

2

Gravely 21900853

BRKT-SEAT HINGE

$

$

Not available

3

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

4

Gravely 21900306

PIN-SEAT LATCH

$

$

Not available

5

Gravely 21900891

ASM-SEAT,BTM,40,GRAVELY GRAY

Note: [INCL. QTY 2 OF 3, QTY 1 OF 4,6]

$

$

Not available

6

Gravely 21900854

BRKT-SEAT HINGE,DOUBLE

$

$

Not available

7

Gravely 21901385

ASM.,SEAT,3 PASSENGER,BTM GRAY

Note: [INCL. QTY 6 OF 3, QTY 2 OF 4,8]

$

$

Not available

8

Gravely 21900197

BRKT-SEAT HINGE

$

$

Not available

9

Gravely 21900892

ASM-SEAT,3PASS,BACK,GRVLY GRAY

$

$

Not available

10

Gravely 21901345

STRAP, SEAT, CENTER

$

$

Not available

11

Gravely 21900471

NUT-HXFL M12X1.75 NYLOC ZOD

$

$

Not available

12

Gravely 21900264

GROMMET

$

$

Not available

13

Gravely 21900088

ASM-SEAT BELT,3PT,CENTER

$

$

Not available

14

Gravely 21900089

ASM-SEAT BELT,3PT

$

$

Not available

15

Gravely 21900090

BUCKLE-SEATBELT,9.6,DRIVER

$

$

Not available

16

Gravely 21900091

BUCKLE-SEATBELT,9.6,PASSENGER

$

$

Not available

17

Gravely 21900248

COVER-SEAT BELT MOUNT

$

$

Not available

18

Gravely 21900276

CAP-BOLT HEAD

$

$

Not available

19

Gravely 21900301

WASHER-SEATBELT,RUBBER

$

$

Not available

20

Gravely 21900305

PAD-REAR,SEAT BASE

$

$

Not available

21

Gravely 21900449

SCR-HXFLSH-M12X1.75-M14X9 ZOD

$

$

Not available

22

Gravely 21900455

NUT-NYLOK,M12X1.5,0600110

$

$

Not available
