996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Body, Hood and Front Fascia Parts Diagram

Atlas JSV Utility Vehicle

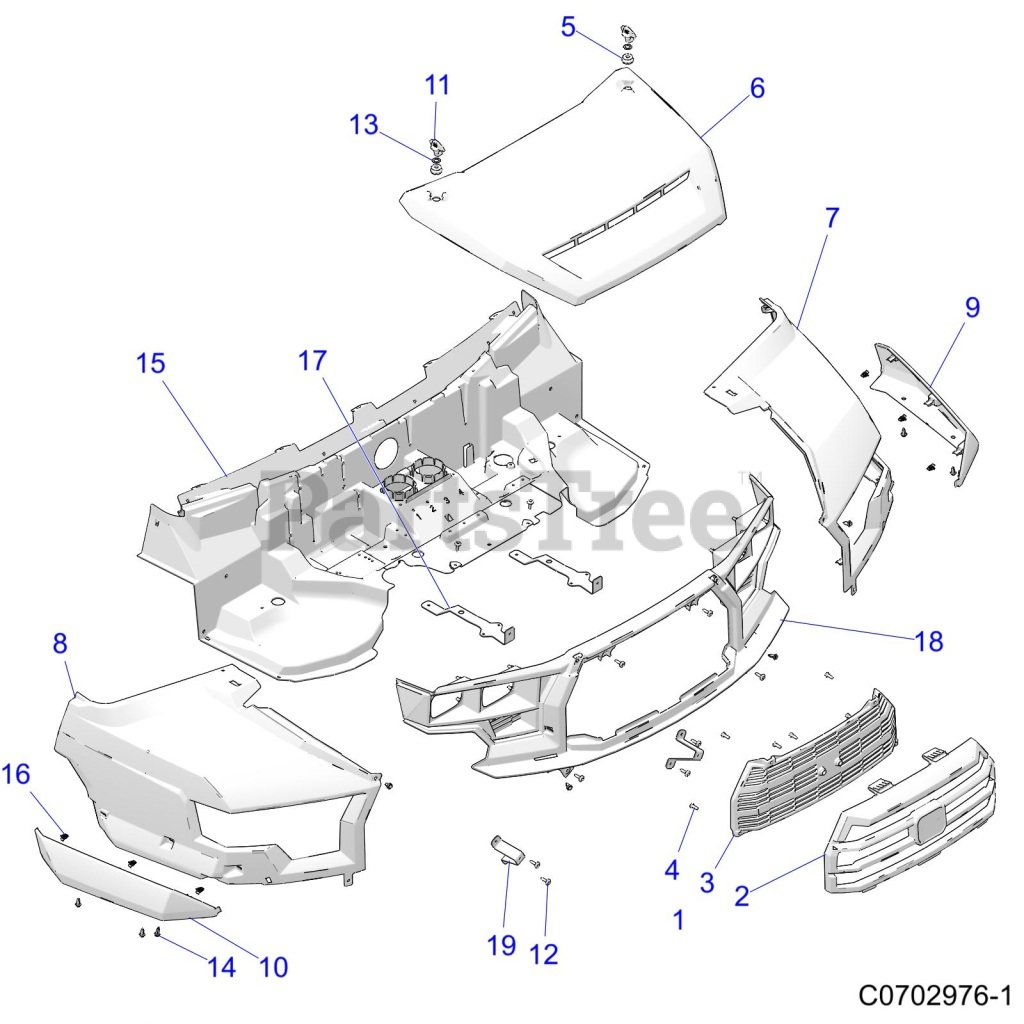

Body, Hood and Front Fascia Parts Diagram

  • Title
1

Gravely 21901292

ASM., GRILL, GRAVELY

Note: [INCL. 2-4]

$

$

Not available

2

Gravely 21901325

GRILL, FRONT, UPPER, BLACK

$

$

Not available

3

Gravely 21901326

GRILL, UPPER, TRIM

$

$

Not available

4

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

5

Gravely 21900225

GROMMET-LATCH

$

$

Not available

6

Gravely 21902249

HOOD-ARNS,I.RED

$

$

Currently unavailable

7

Gravely 21902247

FENDER-FRONT,ARNS,LH,I.RED

$

$

Currently unavailable

8

Gravely 21902248

FENDER-FRONT,ARNS,RH,I.RED

$

$

Currently unavailable

9

Gravely 21902242

FLARE-FENDER,ARNS,LH,BLK

$

$

Currently unavailable

10

Gravely 21902244

FLARE-FENDER,ARNS,RH,BLK

$

$

Currently unavailable

11

Gravely 21901383

LATCH, 1/4 TURN

$

$

Not available

12

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

13

$

$

Not available

14

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

15

Gravely 21902218

LINER-HOOD,BLK

$

$

Currently unavailable

16

Gravely 21901360

CLIP, DASH TRIM METAL

$

$

Not available

17

Gravely 21902246

BRKT-MOUNT,RADIATOR,ARNS,BLK

$

$

Currently unavailable

18

Gravely 21901445

BEZEL-HEADLIGHT

$

$

Not available

19

Gravely 21901461

BRKT-FASCIA MOUNT

$

$

Not available
