996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Electrical, Battery Parts Diagram

Atlas JSV Utility Vehicle

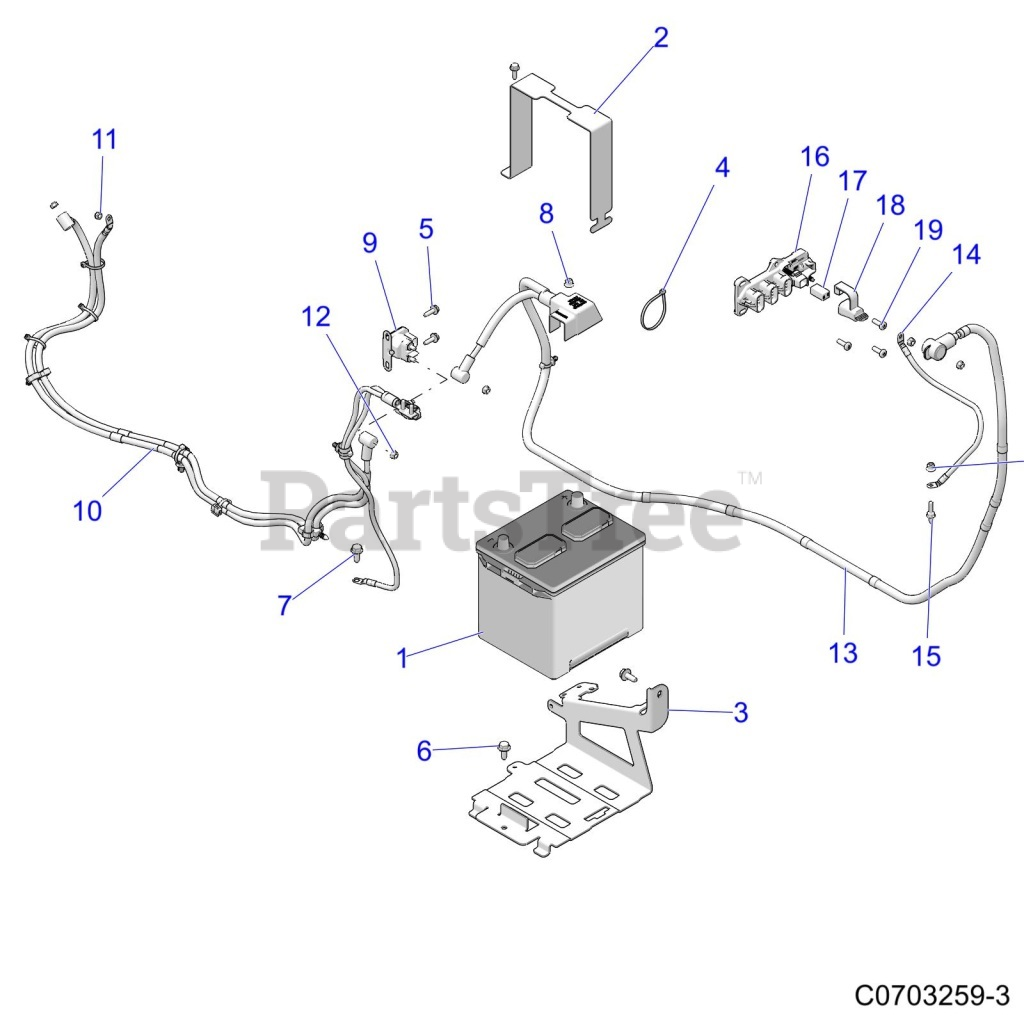

Electrical, Battery Parts Diagram

  • Title
1

Gravely 21902313

BATTERY-575 CCA,FLOODED,FILLED

$

$

Currently unavailable

2

Gravely 21900199

BRKT-BATTERY STRAP GALV

$

$

Not available

3

Gravely 21902314

BRKT-BATTERY TRAY,BLK

$

$

Currently unavailable

4

Gravely 21900324

CABLE TIE (10)

$

$

Not available

5

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

6

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

7

Gravely 21902316

SCR-HXFL-M8X1.25X20 TAP ZY3

$

$

Currently unavailable

8

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

9

Gravely 21900667

SOLENOID-STARTER,SEALED

$

$

Not available

10

Gravely 21902318

CABLE-START,TO,SOLENOID,GAS

$

$

Currently unavailable

11

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available

12

Gravely 21902309

NUT-HXFLGHD,M6,SERRATED

$

$

Currently unavailable

13

Gravely 21902545

CABLE-BATTERY TO SOLENOID

$

$

Currently unavailable

14

Gravely 21902304

CABLE-BAT TO GND

$

$

Currently unavailable

15

Gravely 21900441

STUD-M6X1.0X19-M6 TAPTITE

$

$

Not available

16

Gravely 21902296

BLOCK-TERMINAL,3 POS

Note: [INCL 17-18]

$

$

Currently unavailable

17

Gravely 21902297

FUSE-CARTRIDGE,25A

$

$

Currently unavailable

18

Gravely 21902298

COVER,TB,25A,JCASE

$

$

Currently unavailable

19

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available
