996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Engine, Exhaust System Parts Diagram

Atlas JSV Utility Vehicle

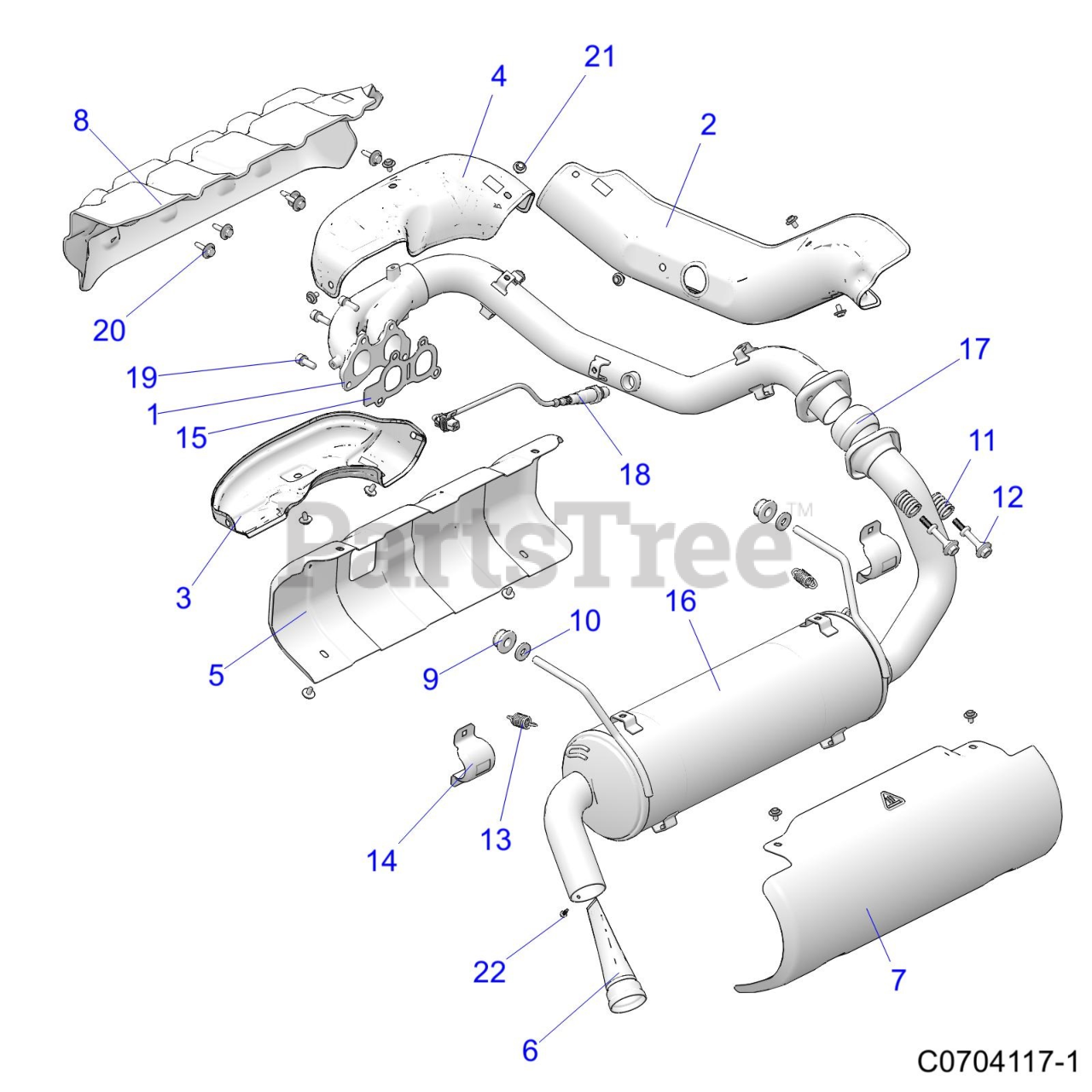

Engine, Exhaust System Parts Diagram

  • Title
1

Gravely 21902512

ASM-HEADPIPE

Note: [INCL. 2-4]

$

$

Currently unavailable

2

Gravely 21902514

SHIELD-HEAT,SILENCER,INNER

$

$

Currently unavailable

3

Gravely 21902513

SHIELD-HEAT,HEADPIPE,FRONT,UPR

$

$

Currently unavailable

4

Gravely 21902519

SHIELD-HEAT,HEADPIPE,INNER

$

$

Currently unavailable

5

Gravely 21902509

SHIELD-HEAT,SILENCER,INNER

$

$

Currently unavailable

6

Gravely 21902508

WELD-SPARK ARRESTOR

$

$

Currently unavailable

7

Gravely 21902510

SHIELD-HEAT,SILENCER,OUTER

$

$

Currently unavailable

8

Gravely 21902521

SHIELD-HEAT,CLOSEOFF

$

$

Currently unavailable

9

Gravely 21902522

ISOLATOR-EXHAUST,HANGER

$

$

Currently unavailable

10

Gravely 21902734

WASHER-.406X1.00X.125,FL

$

$

Currently unavailable

11

Gravely 21902524

SPRING-SPHERICAL,EXHAUST

$

$

Currently unavailable

12

Gravely 21902525

STUD-SPHERICAL,EXHAUST

$

$

Currently unavailable

13

Gravely 21902523

SPRING-EXHAUST S.S. SHOTPEENED

$

$

Currently unavailable

14

Gravely 21902520

SHIELD-BUSHING,SWAY BAR

$

$

Currently unavailable

15

Gravely 21902517

GASKET-EXHAUST SEAL

$

$

Currently unavailable

16

Gravely 21902507

ASM-SILENCER,RGR

Note: [INCL. 5,7]

$

$

Currently unavailable

17

Gravely 21902516

GASKET-DOUBLE SPHERICAL,2"

$

$

Currently unavailable

18

Gravely 21902518

SENSOR-LAMBDA,LSF 4.2

$

$

Currently unavailable

19

Gravely 21900412

SCR-M8X1.25X22,HX/SO

$

$

Not available

20

Gravely 21902526

SCR-HXFL-M6X1.0X25 8.8 ZPB SEM

$

$

Currently unavailable

21

Gravely 21902515

SCR-HHSEMS-M6X1.0X10 A286,LOCK

$

$

Currently unavailable

22

Gravely 21902511

SCR-HXFL-M6X1.0X10 8.8

$

$

Currently unavailable
