996205 (JSV 3400) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Steering, Steering Assembly Parts Diagram

Atlas JSV Utility Vehicle

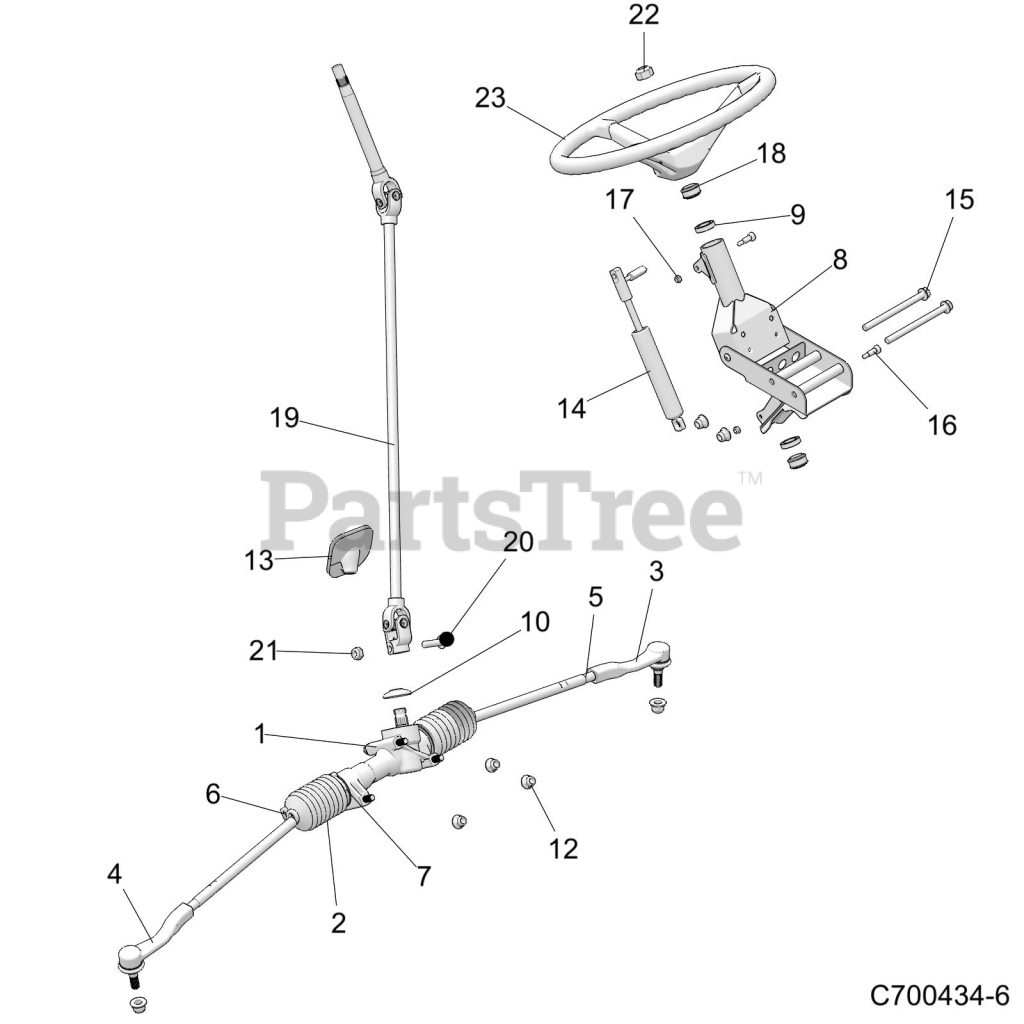

Steering, Steering Assembly Parts Diagram

  • Title
1

Gravely 21902155

ASM-GEAR BOX,STEERING

Note: [INCL. 2-7]

$

$

Currently unavailable

2

Gravely 21900623

BOOT-DRIVER SIDE,RACK

$

$

Not available

3

Gravely 21902741

D.S. OUTER TIE ROD

$

$

Currently unavailable

4

Gravely 21902742

P.S. OUTER TIE ROD

$

$

Currently unavailable

5

Gravely 21902743

NUT, JAM

$

$

Currently unavailable

6

Gravely 21902744

CLAMP, SMALL

$

$

Currently unavailable

7

Gravely 21902745

CLAMP, LARGE

$

$

Currently unavailable

8

Gravely 21901750

ASM,TILT,STEERING,RVTD,M10.BLK

Note: [INCL. 9]

$

$

Not available

9

Gravely 21900129

BEARING-STEERING

$

$

Not available

10

Gravely 21902157

COVER-DUST,STEERING

$

$

Currently unavailable

11

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

12

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

13

Gravely 21902164

GROMMET-STEERING

$

$

Currently unavailable

14

Gravely 21900313

ASM-SHOCK,OIL LOCKING,MACH

$

$

Not available

15

Gravely 21900404

BOLT-M10X1.25X130,HXFLG-OLIVED

$

$

Not available

16

Gravely 21900454

BOLT-SHOULDER,M8-15,M6X1.0-BLK

$

$

Not available

17

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available

18

Gravely 21900491

BUSHING-STEERING

$

$

Not available

19

Gravely 21900049

SHAFT-STEERING,UPPER/LOWER

$

$

Not available

20

Gravely 21900403

SCR-M10X1.50X35 HX/FL

$

$

Not available

21

Gravely 21900469

NUT-NY INS,M10X1.5,HEX,ZINC,YW

$

$

Not available

22

Gravely 21900474

NUT-HEX-M16X2, 8 ZC NYL

$

$

Not available

23

Gravely 21900048

WHEEL-STEERING,15"

$

$

Not available

24

Gravely 21901859

CONNECTOR-CAP,EPS SIGNAL

Note: [NOT ILLUSTRATED]

$

$

Not available

25

Gravely 21901860

CONNECTOR-CAP,EPS POWER

Note: [NOT ILLUSTRATED]

$

$

Not available
