996206 (JSV 3200) - Gravely Atlas JSV Utility Vehicle (SN: 000101 & Above) Supension, Front Parts Diagram

Atlas JSV Utility Vehicle

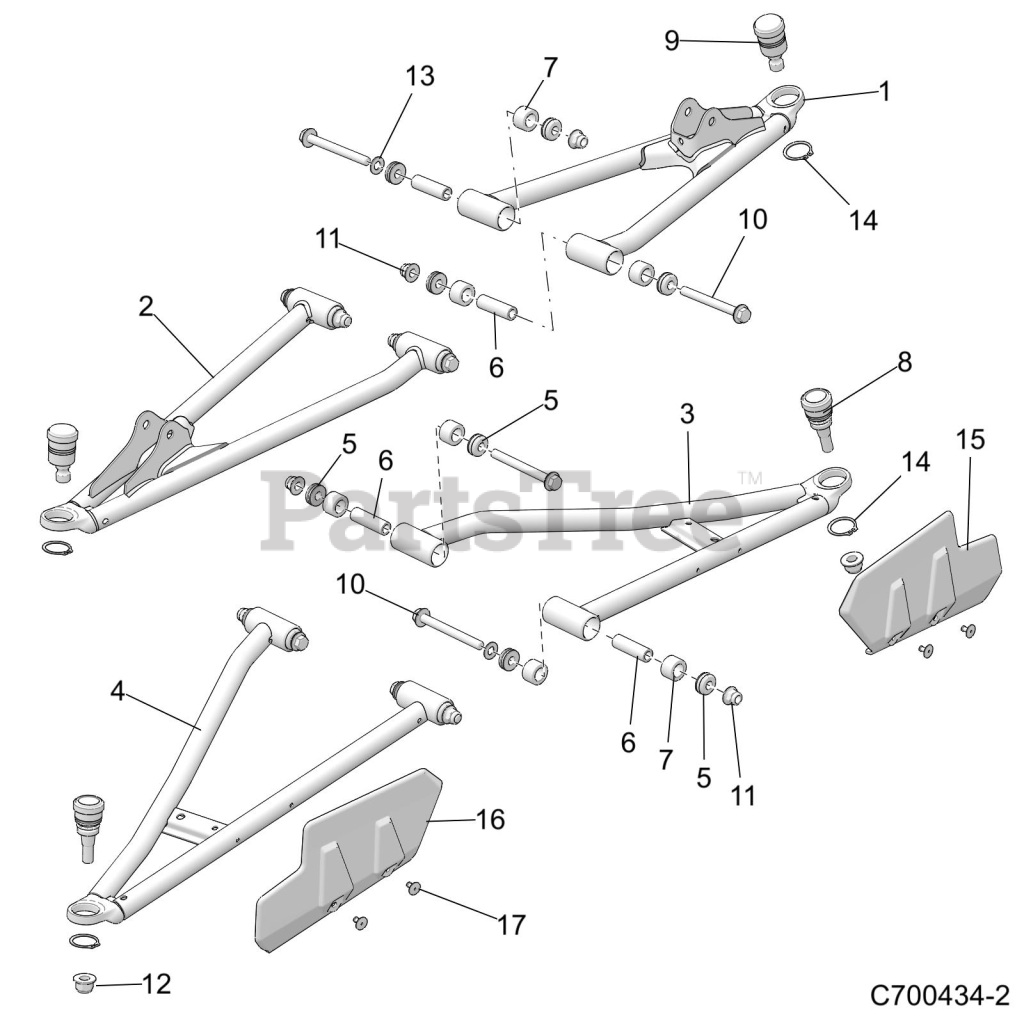

Supension, Front Parts Diagram

  • Title

1

Gravely 21902153

WELD-A-ARM,FR,UPR,LH,BLK

$

$

Currently unavailable

2

Gravely 21902154

WELD-A-ARM,FR,UPR,RH,BLK

$

$

Currently unavailable

3

Gravely 21902151

WELD-A-ARM,FRT,LWR,LH,M.BLK

$

$

Currently unavailable

4

Gravely 21902152

WELD-A-ARM,FRT,LWR,RH,M.BLK

$

$

Currently unavailable

5

Gravely 21902113

ASM-PIVOT CAP,SEALED,M10

$

$

Currently unavailable

6

Gravely 21902156

SHAFT-PIVOT,SHORT,M10

$

$

Currently unavailable

7

Gravely 21902119

BUSHING-STANDARD,SUSP,M10

$

$

Currently unavailable

8

Gravely 21902160

BALL-JOINT,M12X1.50,TAPERED

$

$

Currently unavailable

9

Gravely 21900357

BALL-JOINT,10MM STUD

$

$

Not available

10

Gravely 21900413

SCR-HXFL-M10X1.25X95 10.9 ZOD

$

$

Not available

11

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

12

Gravely 21902143

NUT-M12X1.5,FLG,NYLOC-OLIVE D

$

$

Currently unavailable

13

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

14

Gravely 21900513

RING-RETAINER,EXTERNAL,1.188

$

$

Not available

15

Gravely 21900562

SHIELD-CV,FRONT,LH,BLK

$

$

Not available

16

Gravely 21900563

SHIELD-CV,FRONT,RH,BLK

$

$

Not available

17

Gravely 21900497

RIVET(50) *

$

$

Not available
