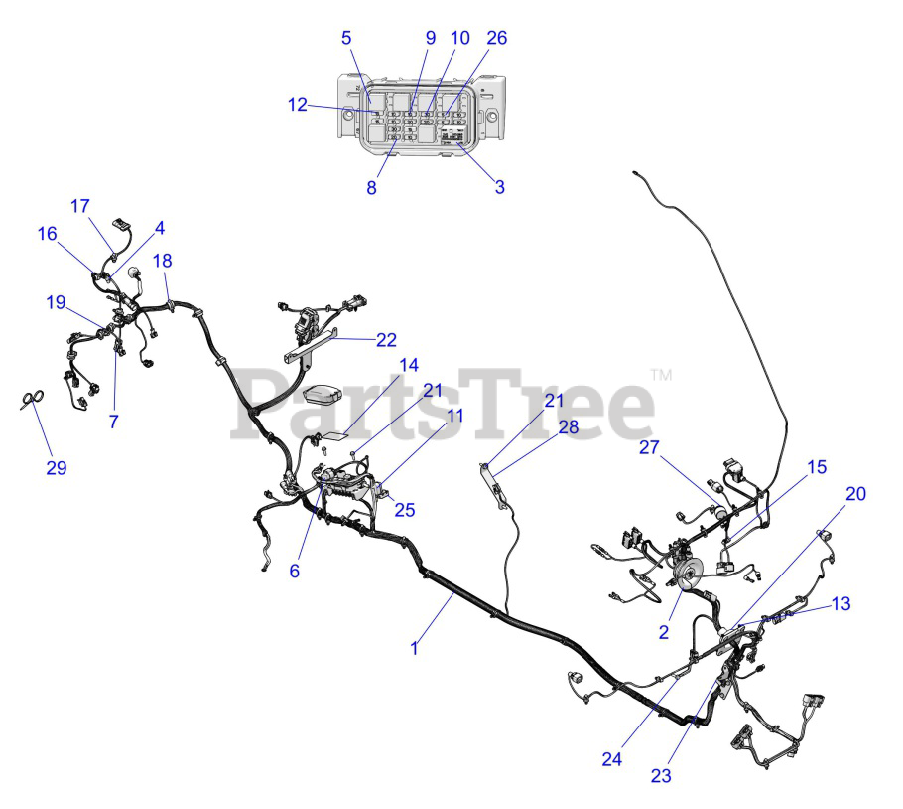

996207 (JSV 6400) - Gravely Atlas JSV Utility Vehicle (SN: 023000 - 023999) Electrical, Wire Harnesses Parts Diagram

Atlas JSV Utility Vehicle

Electrical, Wire Harnesses Parts Diagram

  • Title

1

HARNESS-MAIN,GAS,STD

Note: [INCL. 3-18,20,25-27,29]

$

$

Not available

2

Gravely 21902307

GROMMET-HOOD LINER- SPLIT

$

$

Currently unavailable

3

Gravely 21902672

RELAY - SSR 10A

$

$

Currently unavailable

4

CAP EVAP CONNECTOR

$

$

Not available

5

Gravely 21900624

RELAY-SPST-SERIES 303-SEALED

$

$

Not available

6

Gravely 21900736

COVER-DIAGNOSTIC-W/CLIP

$

$

Not available

7

CLIP- EDGE, 1-3MM THICKNESS

$

$

Not available

8

Gravely 21901842

FUSE- 20 AMP- PARK

$

$

Not available

9

Gravely 21900651

FUSE-IGN.10 AMP-(10)

$

$

Not available

10

Gravely 21900664

FUSE-MAIN-30 AMP-(10)

$

$

Not available

11

Gravely 21900933

BREAKER-CIRCUIT-20 AMP-SEALED

$

$

Not available

12

Gravely 21901499

FUSE-MINI BLADE-15 AMP

$

$

Not available

13

CLIP,PLASTIC DART,NYLON(10)

$

$

Not available

14

Gravely 21902324

DECAL-RELAY/FUSE BLOCK- GAS

$

$

Currently unavailable

15

CLIP-EDGE, 1-3mm THICKNESS

$

$

Not available

16

CLIP-EDGE, 1-3mm THICKNESS

$

$

Not available

17

CLIP-FIR TREE,9.7-10.0MM HOLE

$

$

Not available

18

Gravely 21900348

CLIP-ROUTING

$

$

Not available

19

Gravely 21900324

CABLE TIE (10)

$

$

Not available

20

GROMMET - 65MM, W/FLANGE, BLK

$

$

Not available

21

Gravely 21900393

SCR-M6X1.0X20-HXHD-FLG-TDFM-BL

$

$

Not available

22

Gravely 21902315

BRKT-ECU-ZEUS-DIESEL

$

$

Currently unavailable

23

Gravely 21902306

BRKT-ROUTING-BLK

$

$

Currently unavailable

24

Gravely 21902308

SCR-TFHFL-M6X1.0X25-ZTC

$

$

Currently unavailable

25

BOOT, CIRCUIT BREAKER, RED

$

$

Not available

26

Gravely 21900749

FUSE-5A-MINI BLADE

$

$

Not available

27

ALARM-BRAKE, WARNING

$

$

Not available

28

Gravely 21902322

BRKT-WIRE GUIDE- BLK

$

$

Currently unavailable

29

Gravely 21901419

CABLE TIE

$

$

Not available
