997001 (Pro-Turn EV60 SD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge (SN: 000300 & Above) Wheels Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Side Discharge

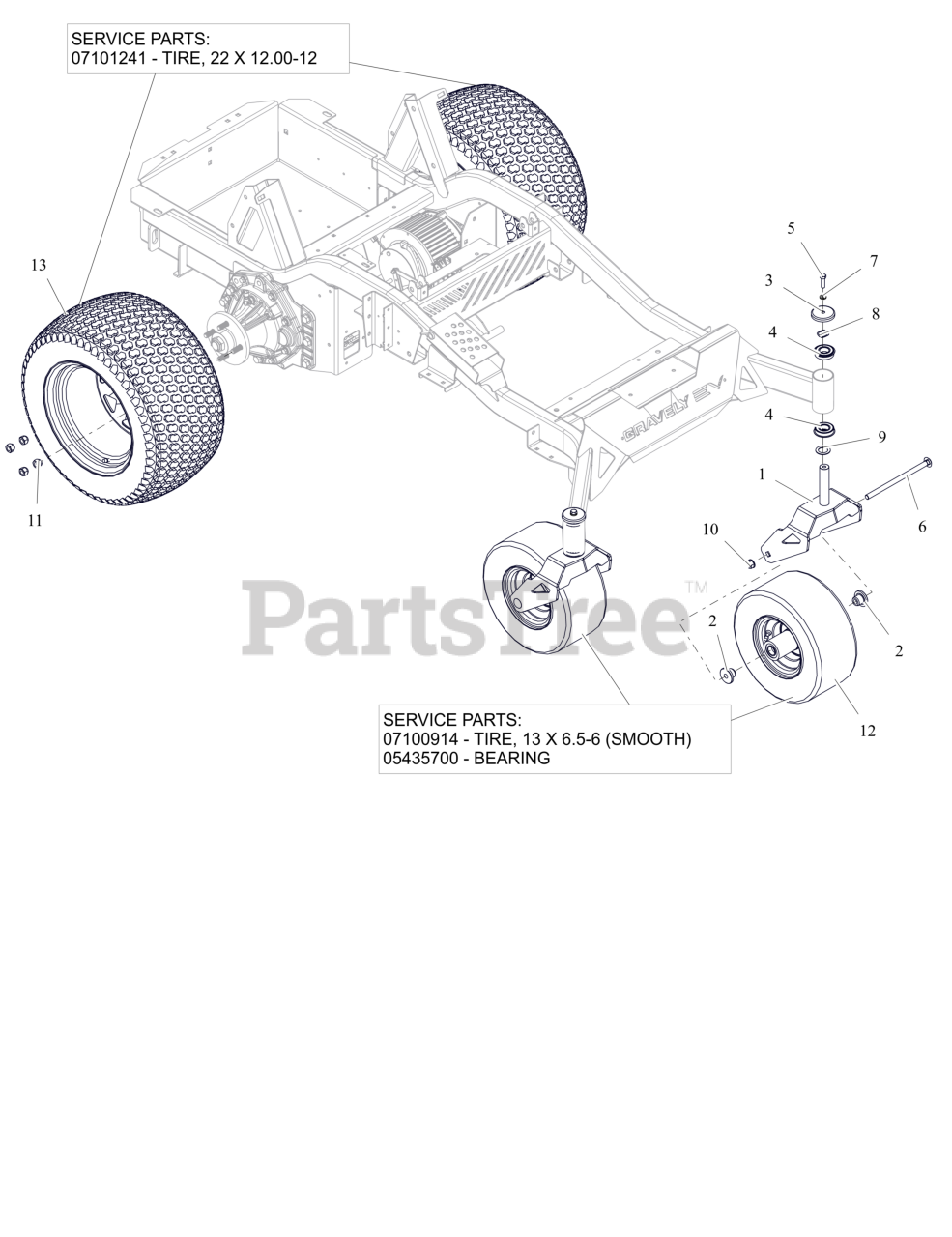

Wheels Parts Diagram

  • Title

1

Gravely 09187053

WLDMT, CASTER FORK-HD (RED)

$102.99

$

In Stock, only 2 left!

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$6.99

$

In Stock, only 1 left!

0

3

Gravely 05198400

SHIELD, AXLE BEARING

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 10

0

6

Gravely 06200322

BTL,RHSN .500-13 X 9 G5 ZCC
(Superseded to 06200510)

$7.99

$

Usually ships in 4-12 days

0

7

Gravely 06300120

WSHR, LK-HVY .375X.115 ZCC

$3.49

$

In Stock, Qty 10

0

8

Gravely 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 12

0

9

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 15

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07101226

ASM, WHL/TIRE 13X6.50-6

$125.99

$

In Stock, only 1 left!

0

12

Gravely 07100914

TIRE, 13X6.50-6 SMOOTH

Note: Component Service Part

$102.99

$

In Stock, only 2 left!

0

12

Gravely 07101508

TIRE TUBE 13X6.5-6

Note: Component Service Part

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$22.99

$

In Stock, Qty 20+

0

13

Gravely 07101227

ASM, WHL/TIRE 22X12.00-12 K500

$262.99

$

In Stock, only 1 left!

0

13

Gravely 07101241

TIRE, 22X12.00-12

Note: Component Service Part

$170.99

$

In Stock, only 2 left!

0

13

Gravely 07140500

TUBE 22,23&24X8.50/9.50/10.00/10.50/12.00-12

Note: Component Service Part

$45.99

$

Usually ships in 4-12 days

0
