997002 (Pro-Turn EV60 RD) - Gravely Pro-Turn 60" Zero-Turn Mower, Electric, Rear Discharge (SN: 000300 & Above) Deck, Blades, and Spindle Motors - RD Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Electric, Rear Discharge

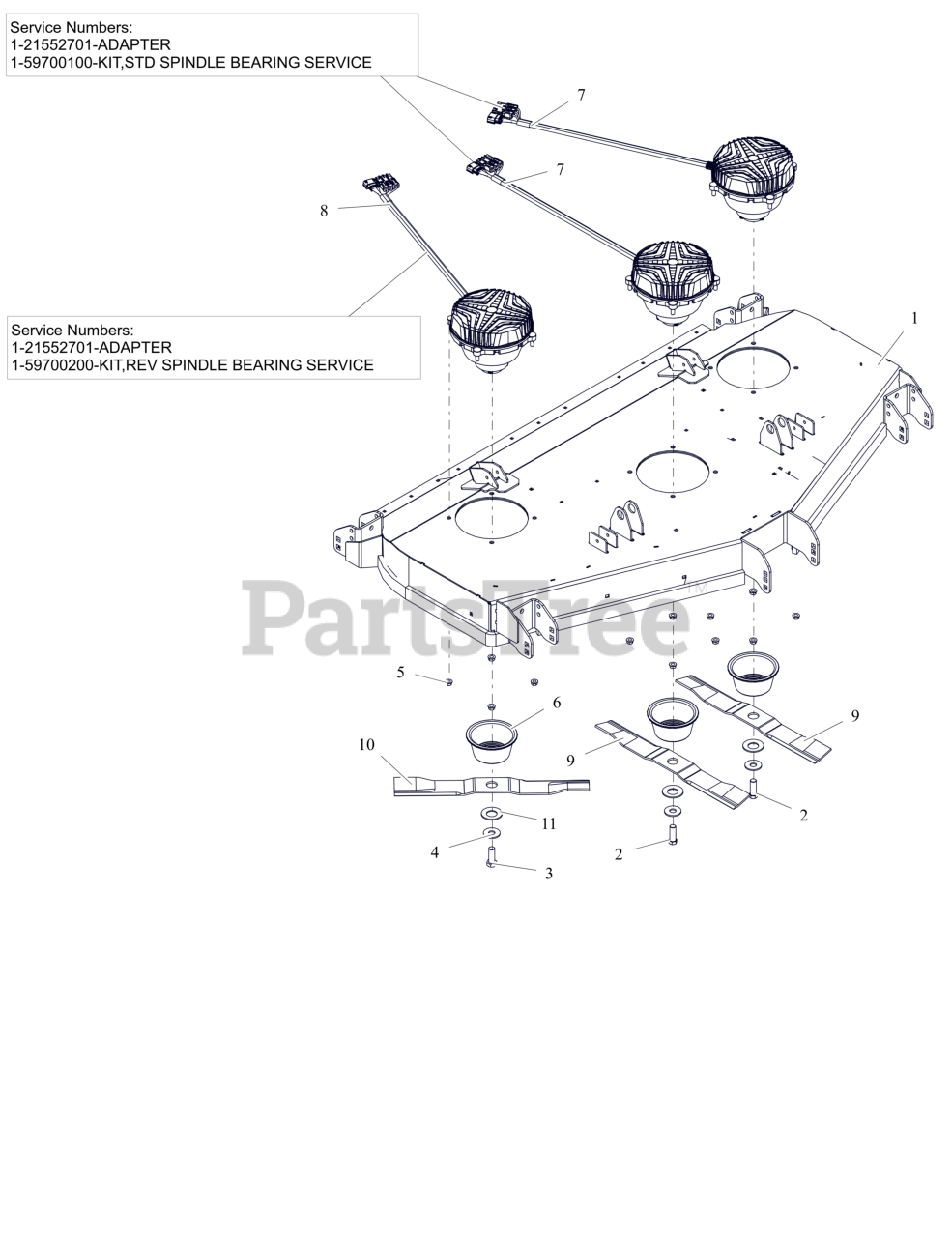

Deck, Blades, and Spindle Motors - RD Parts Diagram

  • Title

1

Gravely 59700600

KIT,DECK-60R W/DECALS-GRAVELY

$

$

Currently unavailable

2

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

3

Gravely 05902102

BLT, HEX 0.625-11X1.75 GR8 ZCC LH

$

$

Currently unavailable

4

Gravely 06401218

WSHR, HRDN 0.687X1.75X0.134 HRD

$

$

Currently unavailable

5

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09163400

GUARD, SPINDLE LOWER

$

$

Currently unavailable

7

Gravely 09182000

MOTOR, SPINDLE-CW

$

$

Currently unavailable

7

Gravely 21552701

ADAPTER

Note: Service Component Part

$

$

Currently unavailable

7

Gravely 59700100

KIT, STD SPINDLE BEARING SERVICE

Note: Service Component Part

$

$

Currently unavailable

8

Gravely 09365000

MOTOR, DECK SPINDLE -CCW

$

$

Currently unavailable

8

Gravely 21552701

ADAPTER

Note: Service Component Part

$

$

Currently unavailable

8

Gravely 59700200

KIT,REV SPINDLE BEARING SERVICE

Note: Service Component Part

$

$

Currently unavailable

9

Gravely 09182100

BLADE, MOWER 20.5"

$

$

Currently unavailable

10

Gravely 09196400

BLADE, MOWER - 20.5" EFF CCW

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 06401217

WSHR, BLVL - .56X28.5X3 PHOS.COAT

$

$

Currently unavailable
