997009 (Pro-Turn EV52 RD) - Gravely Pro-Turn 52" Zero-Turn Mower, Electric, Rear Discharge (SN: 000101 - 000999) Wheels - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Electric, Rear Discharge

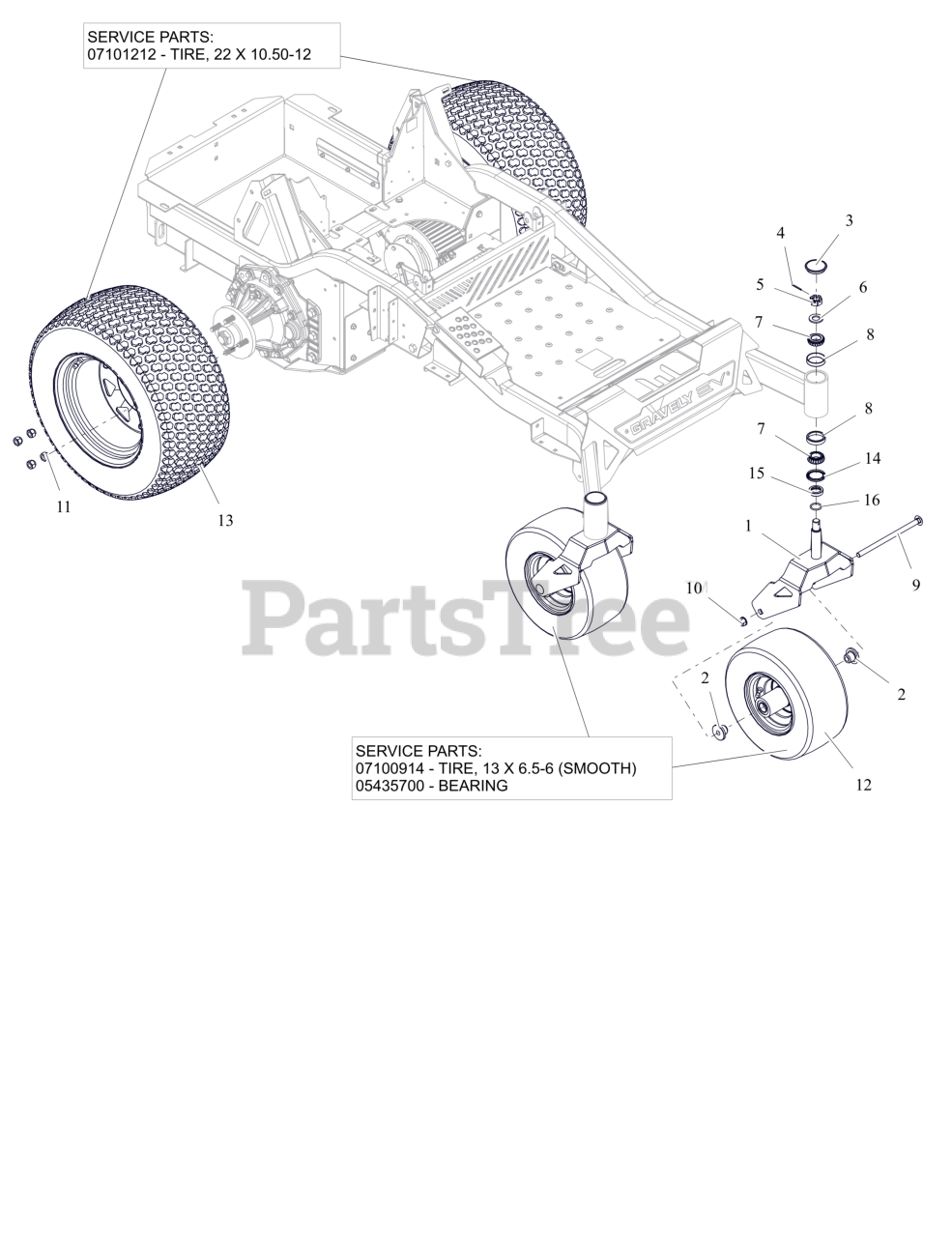

Wheels - 52" Parts Diagram

  • Title

1

Gravely 09476053

WLDMT- CASTER FORK

$165.99

$

Usually ships in 4-12 days

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$9.99

$

In Stock, Qty 20+

0

3

Gravely 00456800

CAP, DUST

$19.99

$

In Stock, only 4 left!

0

4

Gravely 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$1.49

$

In Stock, Qty 16

0

5

Gravely 00595500

NUT, SLOTTED .75-16

$4.99

$

In Stock, Qty 5

0

6

Gravely 06401140

WSHR-FL-STL 0.812X1.469X0.134 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Gravely 05406900

BRG-CONE 1.0X.58

$21.99

$

In Stock, Qty 20+

0

8

Gravely 05407000

BRG-CUP1.980X.420

$19.99

$

In Stock, Qty 19

0

9

Gravely 06200322

BTL,RHSN .500-13 X 9 G5 ZCC
(Superseded to 06200510)

$9.49

$

In Stock, Qty 20+

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07101226

ASM, WHL/TIRE 13X6.50-6

$143.99

$

In Stock, Qty 15

0

12

Gravely 07100914

TIRE, 13X6.50-6 SMOOTH

Note: Component Service Part

$76.99

$

In Stock, only 4 left!

0

12

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$26.99

$

In Stock, Qty 20+

0

12

Gravely 07101508

TIRE TUBE 13X6.5-6

Note: Component Service Part

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 07101211

ASM, WHL/TIRE 22X10.50-12 K500

$327.99

$

Usually ships in 4-12 days

0

13

Gravely 07101212

TIRE, 22X10.50-12

Note: Component Service Part

$191.99

$

Usually ships in 4-12 days

0

13

Gravely 07140500

TUBE 22,23&24X8.50/9.50/10.00/10.50/12.00-12

Note: Component Service Part

$54.99

$

Usually ships in 4-12 days

0

14

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$11.99

$

In Stock, Qty 20+

0

15

Gravely 04720200

SPCR, CASTER FORK (1.00)

$27.99

$

Usually ships in 4-12 days

0

16

Gravely 05610000

O-RING 1.000X1.250X

$4.99

$

Usually ships in 4-12 days

0
