997015 (Pro-Turn EV52 RD) - Gravely Pro-Turn 52" Zero-Turn Mower, Electric, Rear Discharge (SN: 000101 & Above) Electrical - Controllers and Mounts - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Electric, Rear Discharge

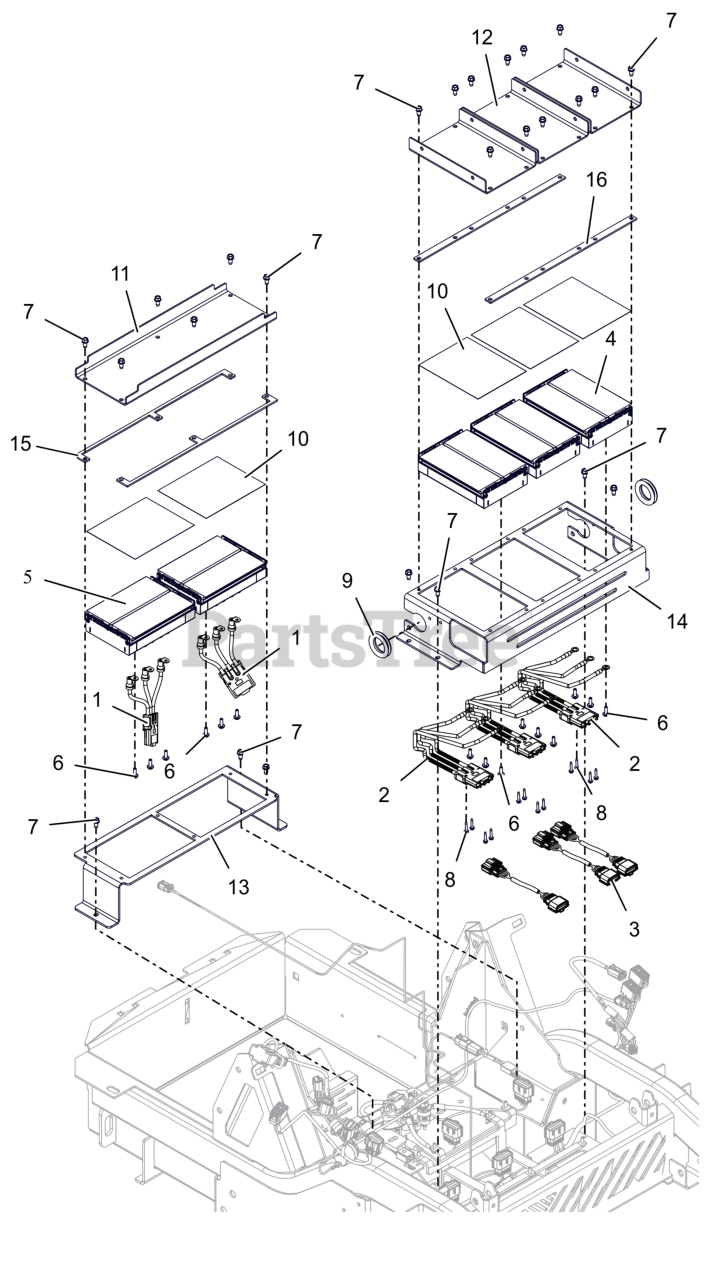

Electrical - Controllers and Mounts - 52" Parts Diagram

  • Title

1

Gravely 09359801

HARNESS, DRIVE CONTROLLER

$118.99

$

Usually ships in 4-12 days

0

2

Gravely 09359901

HARNESS, DECK CONTROLLER

$118.99

$

Usually ships in 4-12 days

0

3

Gravely 09395200

HARNESS, DECK CNTRL JUMPER

$

$

Not available

4

Gravely 59704700

KIT, MY23 52 DECK CONTROLLER

$

$

Currently unavailable

5

Gravely 59704900

KIT,MY23 PTEV DRVIE CONTROLLER

$

$

Currently unavailable

6

Gravely 05902103

BLT,HEX M5-.8X16 EP30 G8.8 ZCC

$

$

Currently unavailable

7

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07400206

SCR-TAP #6-32X.75 HWH ZCC

$

$

Currently unavailable

9

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 09182200

PAD, THERMAL

$36.99

$

Usually ships in 4-12 days

0

11

Gravely 09194300

PLATE, HEAT SINK-REAR

$

$

Currently unavailable

12

Gravely 09194400

PLATE, HEAT SINK-FRONT

$

$

Currently unavailable

13

Gravely 09194551

MOUNT, CNTRL -DRIVE (BLACK)

$

$

Currently unavailable

14

Gravely 09195551

MOUNT, CONTROLLER PLATE-FRONT (BLACK)

$

$

Currently unavailable

15

Gravely 09196151

SPCR, HEAT SINK (BLACK)

$

$

Currently unavailable

16

Gravely 09197251

SPCR, HEAT SINK - FRONT (BLACK)

$

$

Currently unavailable
